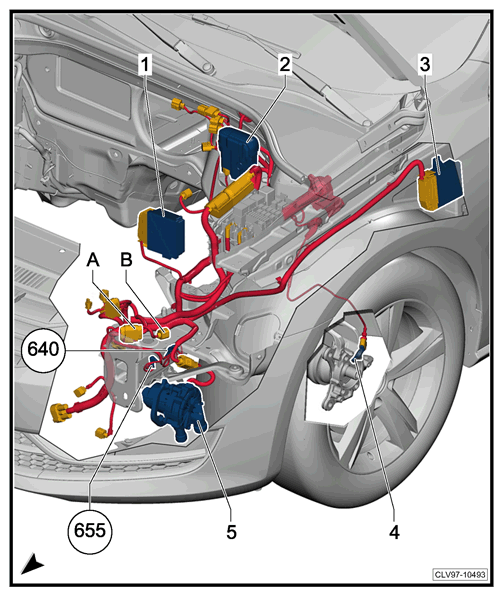

Engine Compartment, Driver Part II
- 1
- Transmission control module -J217-
- Depends on equipment - see call out 3.
- 2 - Battery jump start terminal -U6-
- 2 - Suppressor -C24-
- 3
- Transmission control module
- Depends On Equipment - See Call Out 1
- 4 - Left front ABS wheel speed sensor -G47-
- 5 - Secondary air injection pump motor -V101-
- A - 10-pin connector -T10g-
- B - 6-pin connector -T6z-
- 640 - Ground connection 2 (in engine compartment wiring harness)
- 655 - Ground connection on left headlamp
