Special Tools

Fig 1: Identifying Engine Support Bridge Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Mount T40093/5, from the Engine Support Supplement Set T40093
• Moveable Joint T40093/4, from the Engine Support Supplement Set T40093
• Moveable Joint T40091/3, from the Engine Support Basic Set T40091
• Rail with Holes T40091/2, from the Engine Support Basic Set T40091
• Square Pipe T40091/1, from the Engine Support Basic Set T40091
• Engine Support Bridge 10-222 A
• Adapter 10-222 A/28
• Shackle 10-222 A/12
• Bracket with Spindle and Hook 10-222 A/10

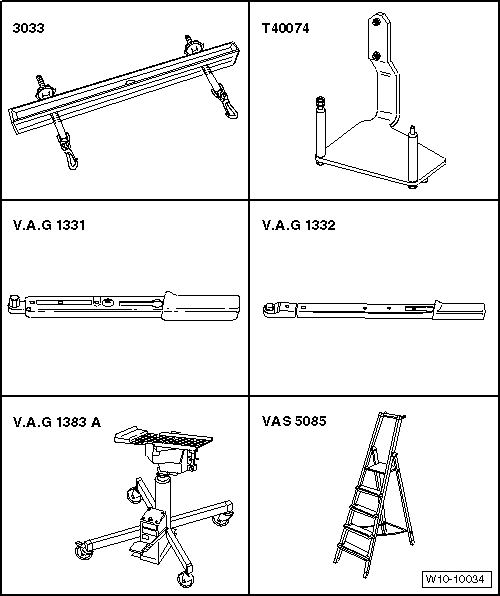

Fig 2: Identifying Special Tools -- Engine, Removal And Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Lifting Tackle 3033
• Engine Support T40074
• Torque Wrench (5-50 Nm) V.A.G 1331
• Torque Wrench (40-200 Nm) V.A.G 1332
• Engine-/Gearbox Jack V.A.G 1383 A
• Step Ladder VAS 5085

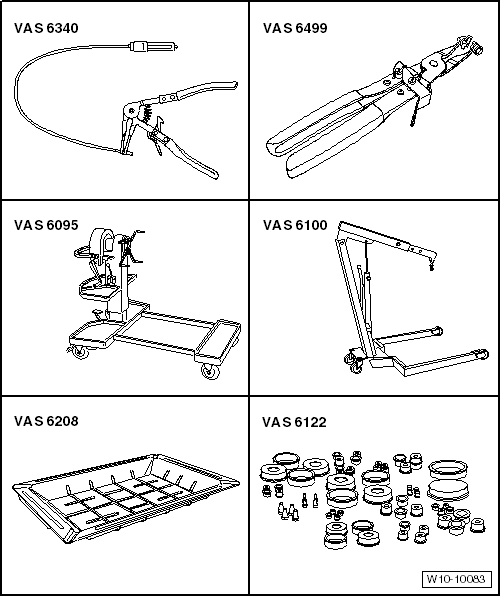

Fig 3: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Hose Clip Pliers VAS 6340
• Spring Type Clip Pliers VAS 6499
• Engine and Transmission Holder VAS 6095
• Shop Crane - Load Cap = 700-1200 KG VAS 6100
• Drip Tray for VAS 6100 VAS 6208
• Engine Bung Set VAS 6122

Special tools and workshop equipment required

• Adapter 10-222 A/7
• Support Bracket 10-222 A/31
• Adapter 10-222 A/28-2
• Spring Type Clip Pliers VAS 6499
• Socket, Multipoint Bit XZN 14 T10061
• Insert Tool 18 mm T10179
• Hose Clamps Up to 25 mm Dia. 3094
• Lifting Tackle 3033
• Engine Support 3269
