Rcd 510 Radio System: Notes

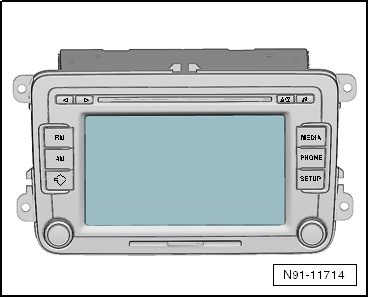

Fig 1: View of the RCD 510 Radio

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The radio system consists of the Radio -R- and speakers, refer to SOUND SYSTEM, REMOVAL AND INSTALLATION .

The speaker system depends on the vehicle equipment level. It is controlled either by the amplifier inside the Radio -R- or by the Amplifier -R12-. If the speakers are connected directly to the Amplifier -R12-, then the speaker outputs from the Radio -R- are used as the signal input by the Amplifier -R12-.

Radio characteristics, refer to Characteristics of the RCD 510 Radio
Activating the transport protection, refer to Transport Protection, Activating .
Deactivating the transport protection, refer to Transport Protection, Deactivating .
Anti-Theft coding, refer to Anti-Theft Coding
Anti-Theft Coding, Retrieving Code, refer to Anti-Theft Coding, Retrieving Code
Anti-Theft Coding, Deactivating, refer to Anti-Theft Coding, Deactivating
Components, Adapting, refer to RCD 510 Components, Adapting

NOTE:

Familiarity with the functions and operation of the digital sound system is needed if there are customer concerns.

For additional information, refer to the Owner's Manual and appropriate Wiring Diagram.

Use the Vehicle Diagnostic Tester for servicing or fault finding.

Anti-Theft code is equipped with protection code number, refer to Anti-Theft Coding .

Deactivate the anti-theft coding if the Radio -R- was replaced, refer to Transport Protection, Deactivating .

The Radio -R- part number is on a label on the housing.

The integrated CD changer has a transportation safeguard. The transportation safeguard must be deactivated when installing a new Radio -R-. If the Radio -R- is going to be shipped, then the transportation safeguard must be activated before removing the Radio -R-. Transport protection, activating/deactivating, refer to Transport Protection, Activating .

Check all vehicle equipment (clock, convenience systems, etc.) after connecting the battery, refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) CVCA, CDVB, CPRA, CBTA, CPKA, CKRA, CBUA] Removal and Installation and/or the Owner's Manual.
