Rcd 310 Radio/Navigation System: Notes

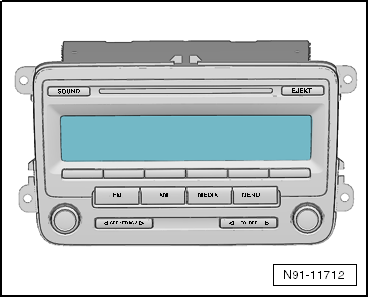

The radio system consists of the Radio -R- and speakers, refer to SOUND SYSTEM, REMOVAL AND INSTALLATION .
- Radio characteristics, refer to Characteristics Of the RCD 310 Radio
- Anti-Theft coding, refer to Anti-Theft Coding
- Anti-Theft Coding, Retrieving Code, refer to Anti-Theft Coding, Retrieving Code
- Anti-Theft Coding, Deactivating, refer to Anti-Theft Coding, Deactivating
Familiarity with the functions and operation of the digital sound system is needed if there are customer concerns.
For additional information, refer to the Owner's Manual and appropriate Wiring Diagram. and appropriate Wiring Diagram.
Use the Vehicle Diagnostic Tester for servicing or fault finding.
Anti-Theft code is equipped with protection code number, refer to Anti-Theft Coding .
Deactivate the anti-theft coding if the Radio -R- was replaced, refer to Anti-Theft Coding, Deactivating .
The Radio -R- part number is on a label on the housing.
Check all vehicle equipment (clock, convenience systems, etc.) after connecting the battery, refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) CVCA, CDVB, CPRA, CBTA, CPKA, CKRA, CBUA] Removal and Installation and/or the Owner's Manual.
