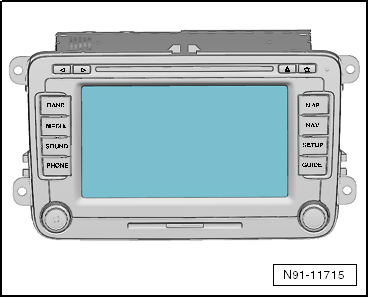

RNS 510 Radio/Navigation System: Notes
The Radio Navigation System combines the functions of a navigation system with those of a radio.
The RNS consists of the Radio/RNS -RX1- and speakers.
The speaker system depends on the vehicle equipment level. It is controlled either by the amplifier inside the Radio/RNS -RX1- or by the Amplifier -R12-. If the speakers are connected to the Amplifier -R12-, then the speaker outputs from the Radio/RNS -RX1- are used as the signal input by the Amplifier -R12-.
Refer to SOUND SYSTEM, REMOVAL AND INSTALLATION .
- Characteristics of the Radio/Navigation System, refer to Characteristics of the RNS 510 Radio/Navigation System
- Anti-Theft coding, refer to Anti-Theft Coding
- Anti-Theft Coding, Retrieving Code, refer to Anti-Theft Coding, Retrieving Code
- Anti-Theft Coding, Deactivating, refer to Anti-Theft Coding, Deactivating
- Components, Adapting, refer to RNS 510 Components, Adapting
Before troubleshooting or servicing, the technicians must be familiar with the function and operation of the Radio/RNS -RX1-.
For additional information, refer to the Owner's Manual and appropriate Wiring Diagram.
Use the Vehicle Diagnostic Tester for servicing or fault finding.
Anti-Theft code is equipped with protection code number, refer to Anti-Theft Coding .
Deactivate the anti-theft coding if replacing the Radio/RNS -RX1-, refer to Anti-Theft Coding, Deactivating .
The Radio/RNS -RX1- part number is on a label on the housing.
For proper function of the navigation system, rotation angle sensor in unit must be set corresponding to installation position of unit in the vehicle. Therefore, always pay close attention to the part number when replacing the unit. The navigation system will not work properly if the incorrect radio is installed.
Using an antenna that is attached to the rear lid by magnets could cause the compass module to not work correctly. Even after removing the antenna the malfunctions could continue due to the continual magnetizing of the rear lid. Ask the customer is an antenna with magnets was used before attempting to perform a repair if the customer complains the compass shows inaccurate or wrong directions.
Check all vehicle equipment (clock, convenience systems, etc.) after connecting the battery, refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) CVCA, CDVB, CPRA, CBTA, CPKA, CKRA, CBUA] Removal and Installation and/or the Owner's Manual.
