Special Tools

Special tools and workshop equipment required

• Engine Support Bridge - Engine Support 28-210-222A/28-2
• Engine Support - Automatic Transmission Hook 10-222A/7
• Engine And Transmission Holder VAS6095
• Lifting Tackle 3033
• Engine Support Bridge - Engine Support 31A10-222A/31A
• Transportation Lock T10404
• Hose Clip Pliers VAS6340
  Fig 1: Hose Clamp Pliers VAS 6340

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane - Drip Tray VAS6208
  Fig 2: Drip Tray For Shop Crane VAS 6208

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

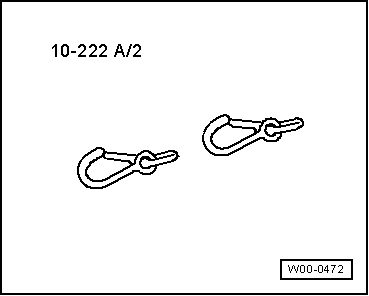

• Engine Support Bridge - Additional Hooks (2 pc.) 10-222A/2 (for the 02Q manual transmission)
  Fig 3: Additional Hooks 10-222 A/2

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Support Bridge - Special Hook (2 pc.) 10-222A/20 (For the Direct Shift Gearbox (DSG®))
  Fig 4: Identifying Adapter 10-222 A/820

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane VAS6100
  Fig 5: Identifying Shop Crane VAS 6100

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Sling - Engine Bracket 2024A/1 (update to Engine Sling 2024A)
  Fig 6: Bracket 2024 A /1

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 7: Identifying Engine Support Bridge Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Engine Support - Supplement Kit T40093A
• Engine Support - Basic Set T40091
• Engine Support Bridge 10-222A
• Engine Support Bridge - Engine Support 2810-222A/28
• Engine/Gearbox Support Shackle (2 pc.) 10-222A/12
• Engine Support - Bracket w/ Spindle and hook 10-222A/10

Fig 8: Identifying Special Tools And Workshop Equipment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

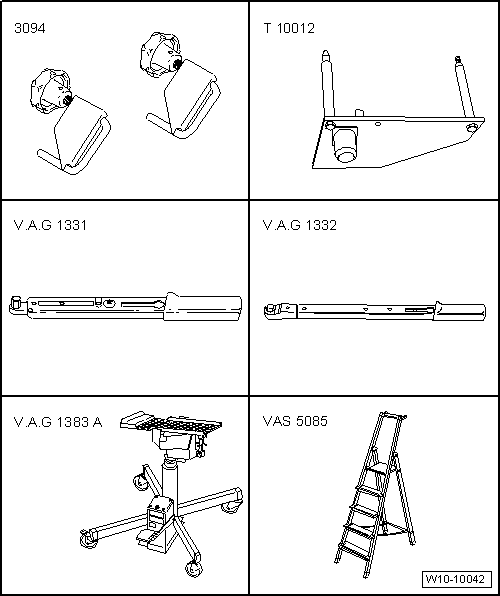

Special tools and workshop equipment required

• Hose Clamps - Up To 25 mm 3094
• Engine/Trans. Support T10012
• Torque Wrench 1331 5-50 Nm VAG1331
• Torque Wrench 1332 40-200 Nm VAG1332
• Engine/Gearbox Jack VAG1383A
• Step Ladder VAS 5085
