Automatic Headlamp Control, Checking Functionality
NOTE:
The automatic headlamp control is also called automatic headlamps.
- Vehicle must be in daylight.
Checking in Daylight or Brightness
-- Switch on the ignition.

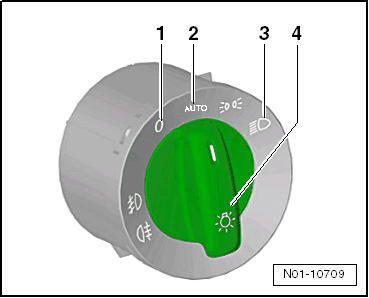

-- Turn the headlamp switch -4- to the automatic headlamp control position -2-.
The headlamp should not come on when it is bright.
Checking at Night or in Darkness
- Ignition is switched on
- The headlamp switch is in the automatic headlamp control position.
Rain/Light Recognition Sensor is secured to rearview mirror bracket.

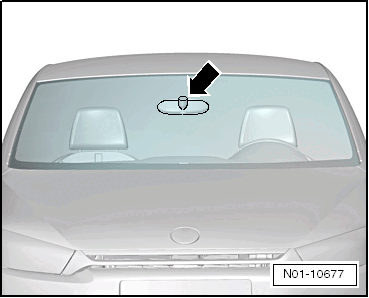

Rain/Light Recognition Sensor is located in upper center area of front windshield -arrow-.
-- Cover the base of the interior rearview mirror -arrow- with your hand or some suitable object.
The decrease in light is measured and the headlamps are switched on.
-- Turn the headlamp switch -4- to O -1- and turn off the ignition.
