Abs Mark 60 EC (Abs/Eds/ASR/Esp) Overview

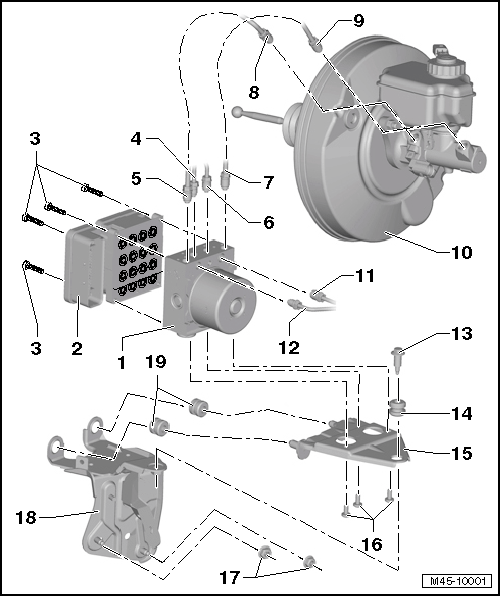

Fig 1: Identifying ABS Mark 60 Ec (ABS/EDS/ASR/ESP) Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

ABS Hydraulic Unit -N55-
- Removing and Installing, refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55- .
- Disconnect the ABS Control Module -J104- from the ABS Hydraulic Unit -N55-, refer to ABS Control Module -J104-, SEPARATING FROM THE ABS Hydraulic Unit -N55-, ABS MARK 60 EC ABS/EDL/ASR/ESP .
ABS Control Module -J104-
- Removing and Installing, refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55- .
- Disconnect the ABS Control Module -J104- from the ABS Hydraulic Unit -N55-, refer to ABS Control Module -J104-, SEPARATING FROM THE ABS Hydraulic Unit -N55-, ABS MARK 60 EC ABS/EDL/ASR/ESP .
Bolt
- 2 Nm +/- 0.8 Nm
- Quantity: 4
- Always replace if removed.
Brake Line
- 14 Nm
- To the left front brake caliper.
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread.
Brake Line
- 14 Nm
- ABS Hydraulic Unit -N55- for the master brake cylinder/primary piston circuit.
- Identification: 6.5 mm diameter and tube fitting with a M12 x 1 thread.
Brake Line
- 14 Nm
- To the right front brake caliper.
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread.
Brake Line
- 14 Nm
- ABS Hydraulic Unit -N55- for the master brake cylinder/secondary piston circuit.
- Identification: 6.5 mm diameter and tube fitting with a M12 x 1 thread.
Brake Line
- 14 Nm
- Master brake cylinder/primary piston circuit for the ABS Hydraulic Unit -N55-.
- Identification: 6.5 mm diameter and tube fitting with a M12 x 1 thread.
Brake Line
- 14 Nm
- Master brake cylinder/secondary piston circuit for the ABS Hydraulic Unit -N55-.
- Identification: 6.5 mm diameter and tube fitting with a M12 x 1 thread.
Brake Booster with Master Brake Cylinder
- See REMOVAL AND INSTALLATION .
- Brake Booster, Removing and Installing, refer to BRAKE BOOSTER .
- Brake Master Cylinder, Removing and Installing, refer to MASTER BRAKE CYLINDER .
Brake Line
- 14 Nm
- To left rear brake caliper/brake cylinder.
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread.
Brake Line
- 14 Nm
- To the right rear brake caliper/brake cylinder.
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread.
Hex bolt
- 8 Nm
Rubber Insulation
Bracket
- After installing, make sure it fits properly.
Bolt
- 8 Nm
- Quantity: 3
Nut
- 8 Nm
- Quantity: 2
Bracket
Rubber Insulation
- Do not press the rubber bushings out of the bracket when installing the mount.
