Overview - Front Door

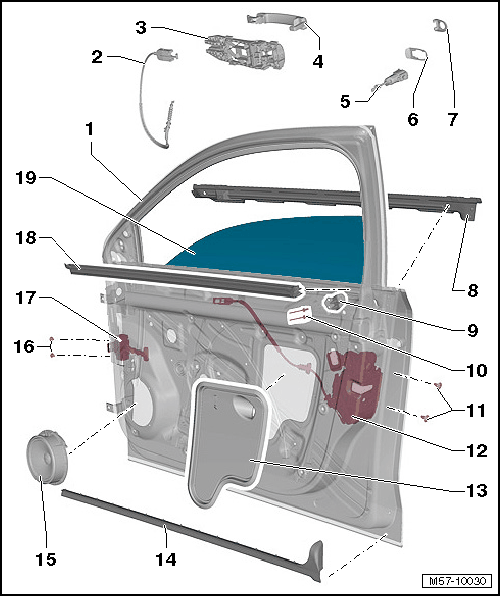

Fig 1: Identifying Front Door Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Door
- Removing and installing, refer to DOOR .
- Adjusting, refer to DOOR ADJUSTMENT .
Cable
- From the bracket -3- to the door lock -12-
- secured to the outer door panel with tape
Bracket
- Removing and installing, refer to BRACKET .
Door Handle
- Removing and installing, refer to DOOR HANDLE .
Lock Cylinder
- Removing and installing, refer to LOCK CYLINDER .
- Not always installed on the front passenger door depending on the optional equipment
Backing
Cap
- With lock cylinder, removing and installing, refer to LOCK CYLINDER CAP
- Without lock cylinder, removing and installing CAP WITHOUT LOCK CYLINDER .
Outer Window Shaft Seal
- Removing and installing, refer to OUTER WINDOW RECESS SEAL .
Bracket
- For attaching the door trim panel
Rivet
- For the bracket -9-
Screw
- Quantity: 2
- Tightening specification: 18 Nm.
Door Lock
- Removing and installing, refer to DOOR LOCK .
Cover
- Removing and installing, refer to DOOR COVER .
Outer Door Seal
- Removing and installing, refer to OUTER DOOR SEAL .
Speaker
- Riveted to the door
Screw
- Tightening specification: 9 Nm.
- Quantity: 2
Door Strap
- Removing and installing, refer to DOOR STRAP .
Inner Window Shaft Seal
- Removing and installing, refer to INNER WINDOW SHAFT SEAL .
Door Window
- Removing and installing, refer to DOOR WINDOW .
