Control Module for Emergency Call Module and Communication Unit -J949-

The Control Module for Emergency Call Module and Communication Unit -J949- is installed under the right front seat.

Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Move the right front seat into its highest position and the move it all the back.

-- Remove the cover under the seat in the direction of the -arrow-.

Fig 1: Identifying Telephone Transceiver Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors from the Control Module for Emergency Call Module And Communication Unit -J949-.

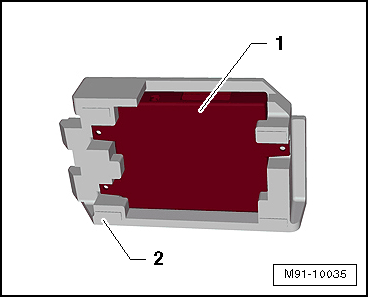

-- Remove the Control Module for Emergency Call Module And Communication Unit -J949- -1- from the foam insert -2-.

Fig 2: Identifying Emergency Call Module And Communication Unit Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.
