External Audio Source Connection -R199- OVERVIEW, AUX IN

The External Audio Source Connection -R199- works with the radio/RNS unit that has an "AUX".

The audio signals from and MP3 player or a portable CD/cassette player can be played in the radio/RNS using an adapter cable connected to the External Audio Source Connection -R199-. These will then be transmitted through the sound system.

For further information.

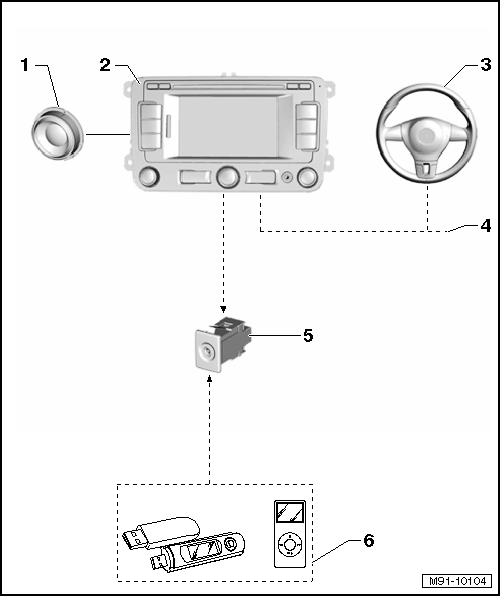

Fig 1: External Audio Source Connection -R199- overview (AUX IN)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Sound System
2. Radio/RNS
3. Multifunction Steering Wheel
4. CAN Bus
5. External Audio Source Connection -R199-
   • Connector assignment, refer to External Audio Source Connection -R199- CONNECTOR, AUX IN .
   • Removing and installing, refer to CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES .
6. Input Devices
   • MP3 player
   • iPod
   • CD and cassette player

Fig 2: Identifying External Audio Source Connection Inside Center Console Storage Compartment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

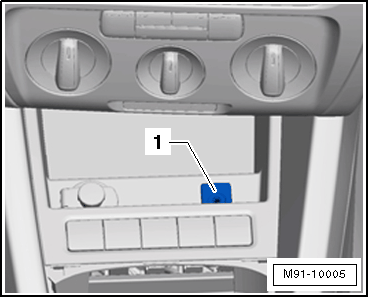

The External Audio Source Connection -R199- -1- is installed in the center console storage compartment.

Fig 3: Identifying External Audio Source Connection Inside Center Console Storage Compartment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

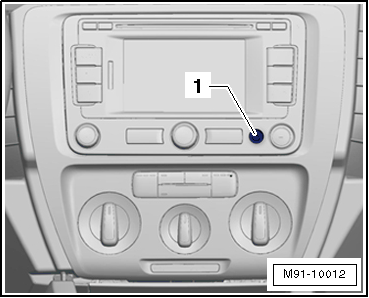

The External Audio Source Connection -R199- -1- is integrated in the device. It is located on the right side of the front trim at the bottom.
