External Audio Source Connection 2 -R231- CONNECTOR, USB PORT

There are two versions: 11-pin and 4-pin

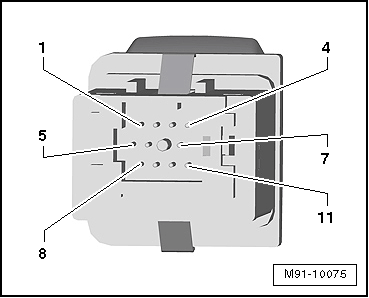

Fig 1: Identifying 11-pin External Audio Source Connection 2 -R231- (USB Port) Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. VCC (+5 V)
2. D (+)
3. D (-)
4. Ground
5. Ground Shielding

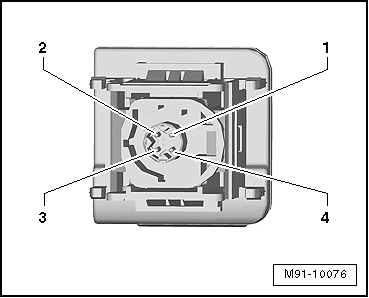

Fig 2: Identifying 4-Pin External Audio Source Connection 2 -R231- (USB Port) Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. D (+)
2. VCC (+5 V)
3. D (-)
4. Ground
