Removal And Installation: Clock

Removing

-- Turn off the ignition.

-- Remove the trim from the Infotainment. Refer to Removal and Installation .

-- Remove the trim from the instrument cluster. Refer to Removal and Installation .

-- Remove the trim from the instrument panel on the front passenger side. Refer to Removal and Installation .

-- Remove the bolts -arrows- from the Radio/Radio-Navigation system and remove the Radio/Radio-Navigation system about 5 cm from the instrument panel.

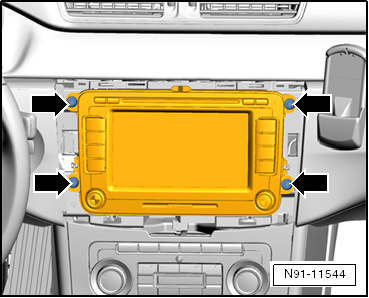

Fig 1: Identifying Bolts -Arrows- To Radio/Radio-Navigation System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the instrument panel analog clock -1- and disconnect the connector.

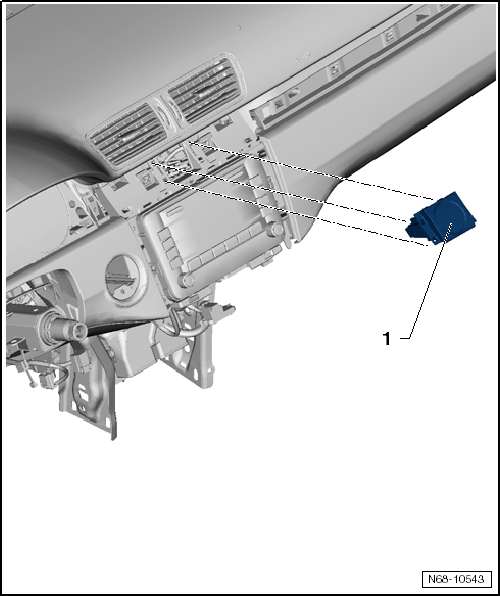

Fig 2: Identifying Instrument Panel Analog Clock -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
