Access/Start Control Module - Module Side Connector End Views (J518, T81, T6u)

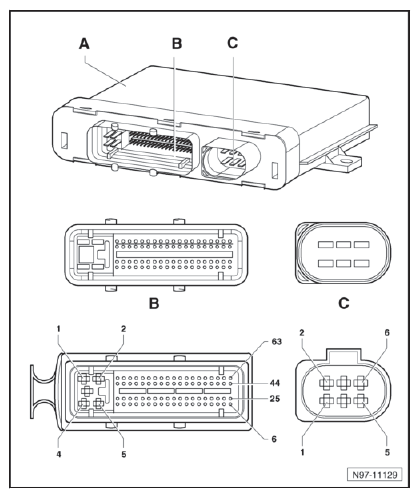

Fig 1: Access/Start Control Module - Module Side Connector End Views (J518, T81, T6u)
G10539430Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A Access/Start Control Module - Module side
B 81-pin connector -T81-
C 6-pin connector -T6u-
