Control Units
CONTROL UNITS LOCATION

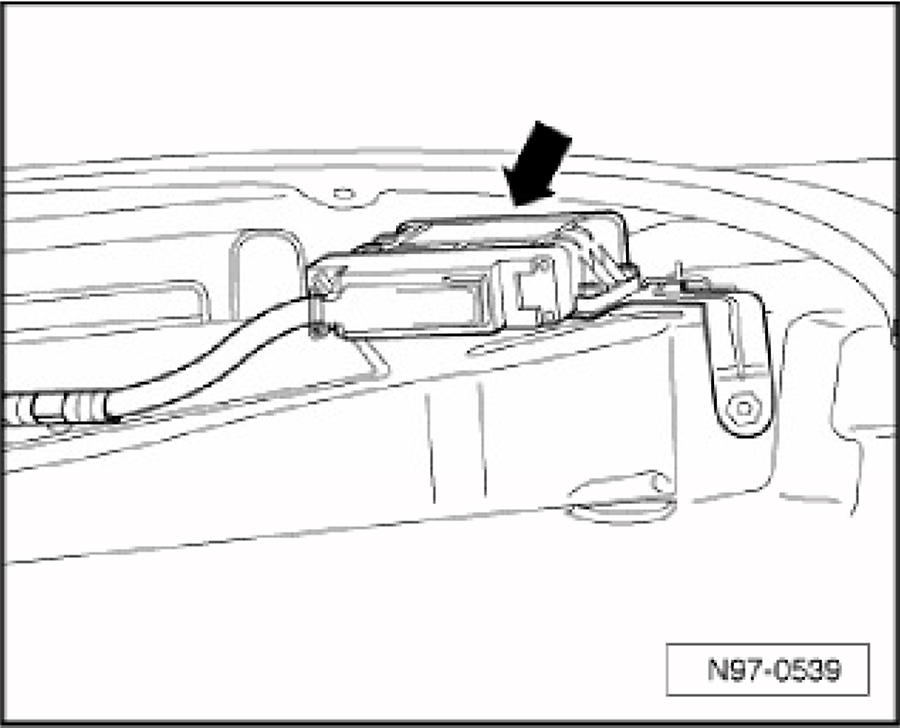

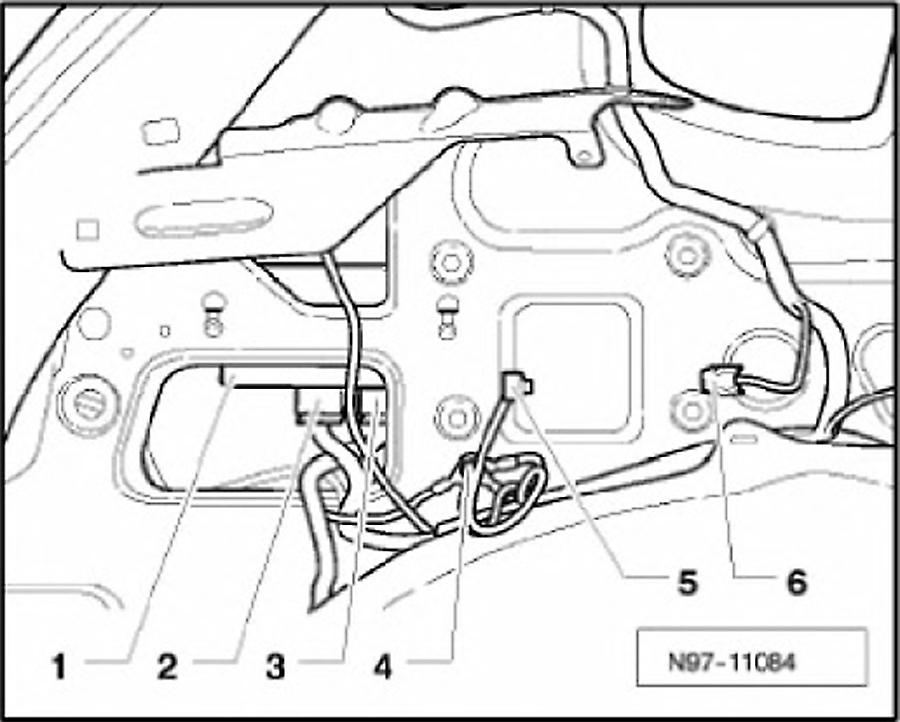

| Component | Location |
|---|---|
| ABS Control Module | Right rear of engine compartment. See Figure. |
| Airbag Control Module (1) | Mounted on floor in front of center console. See Figure. |
| All-Wheel Drive Control Module (2) | Left side of luggage compartment. See Figure. |

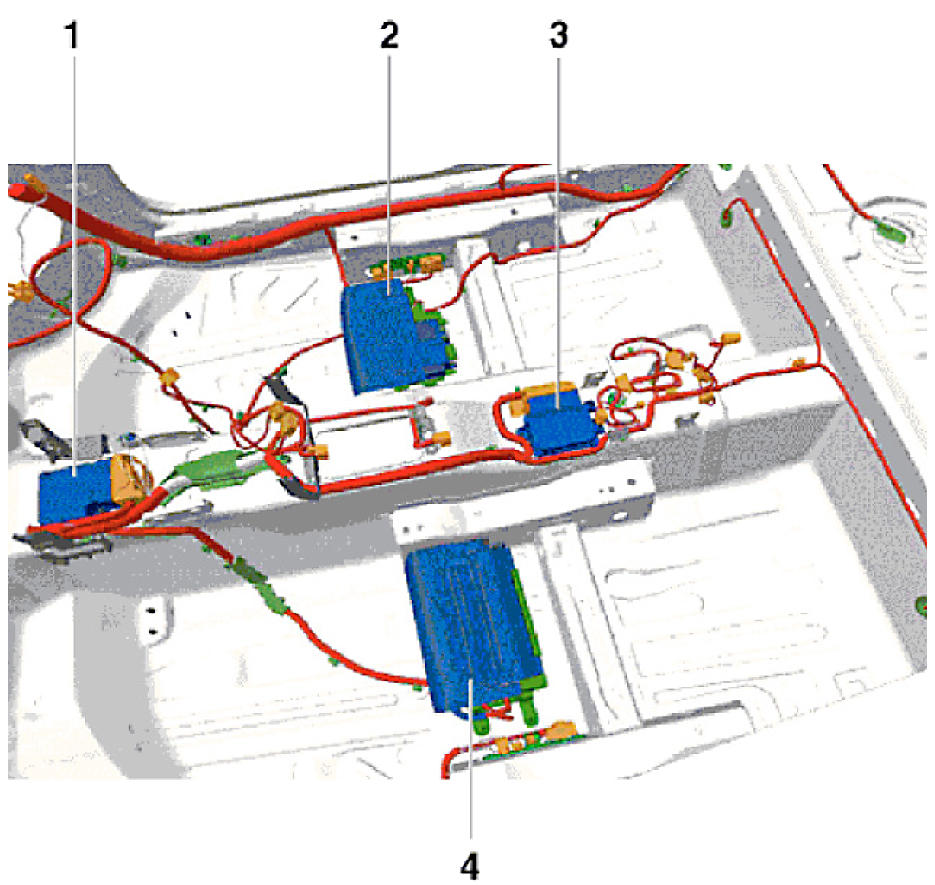

| Amplifier (4) | Under driver's seat. See Figure. |
| Antenna Selection Control Module | Under front passenger's seat. |
| Anti-Theft Immobilizer Control Module | In instrument cluster. |

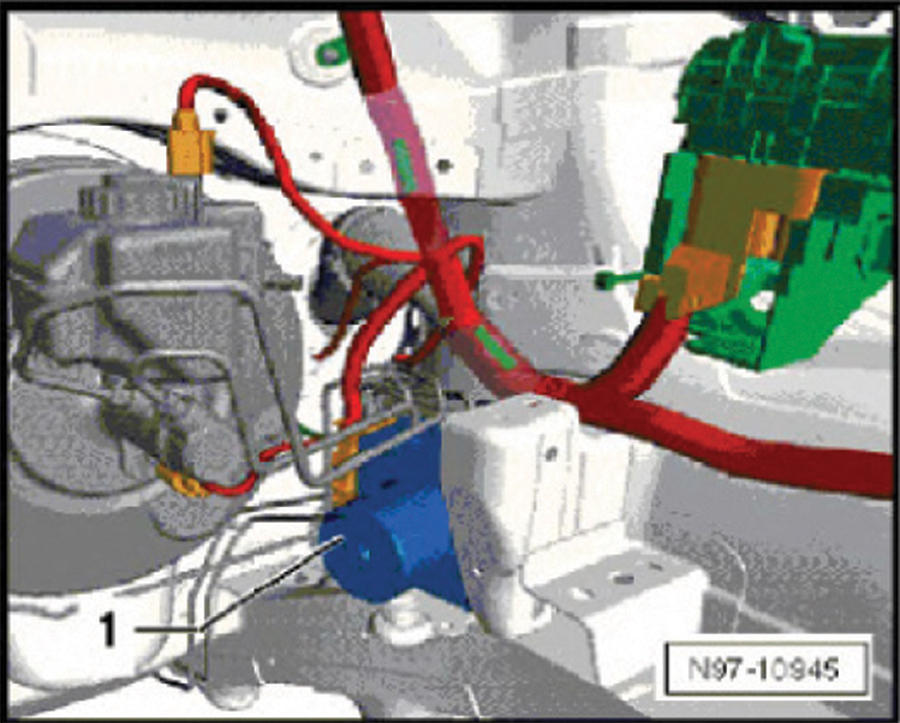

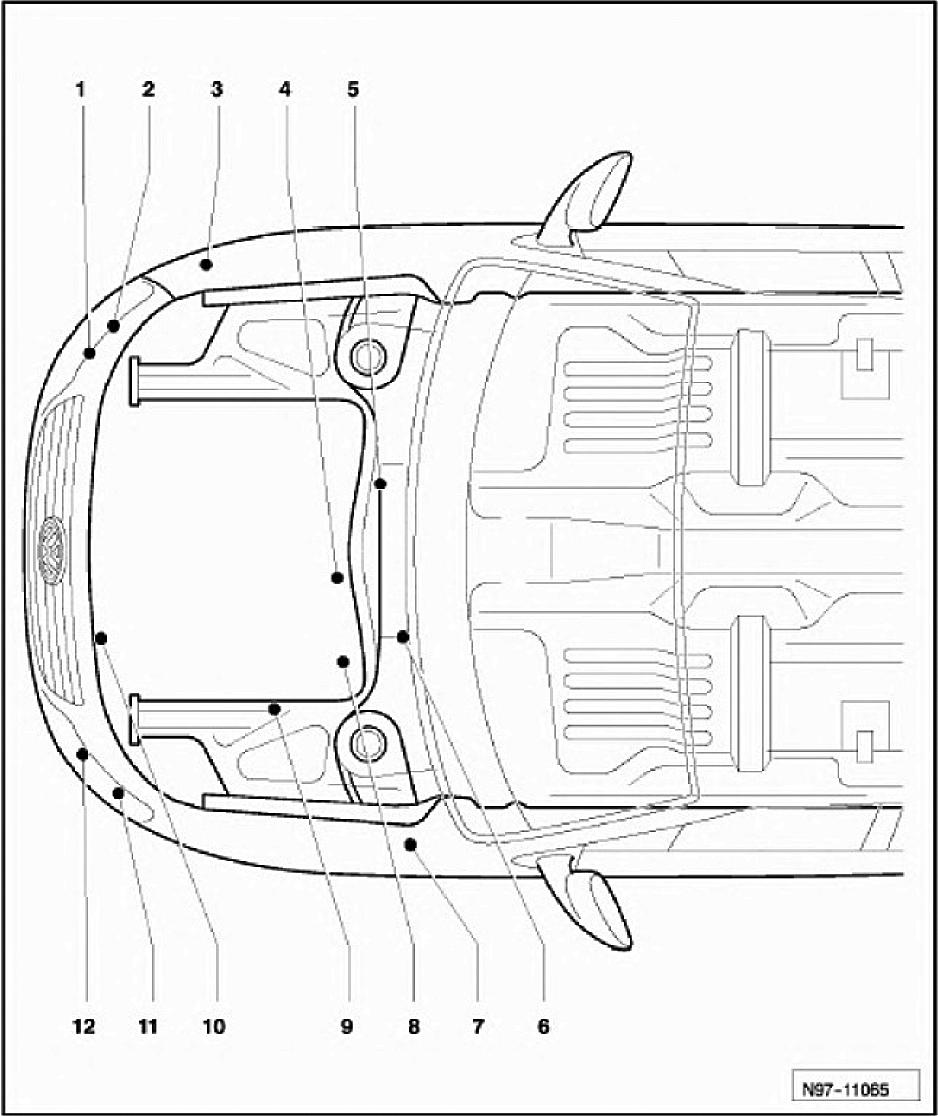

| Automatic Glow Time Control Module (9) | Left side of engine compartment, near battery. See Figure. |

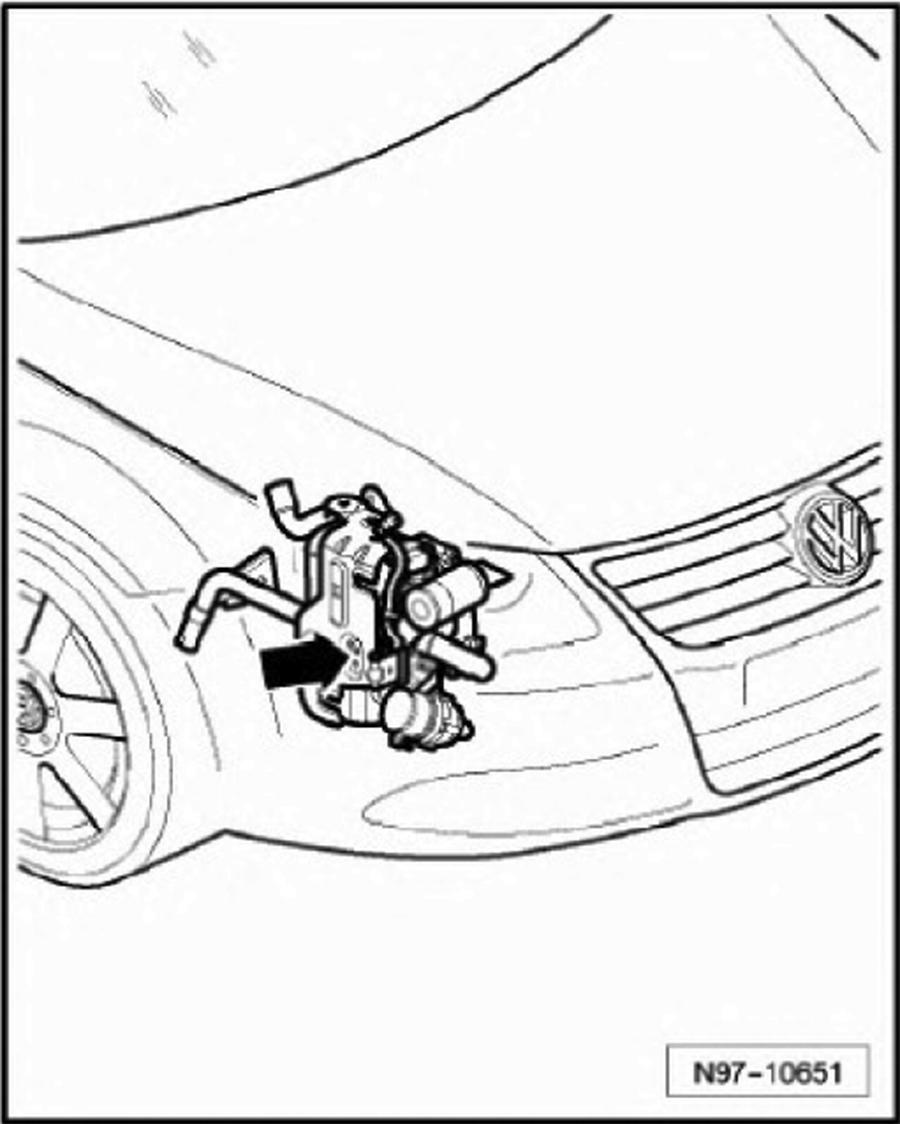

| Auxiliary Heated Control Module | Right front of engine compartment. See Figure. |
| Comfort System Central Control Module | Behind right side of dash. |
| Cooling Fan Control Module (10) | Left front of engine compartment, on cooling fan. See Figure. |
| Digital Sound Control Module (4) | Under driver's seat. See Figure. |

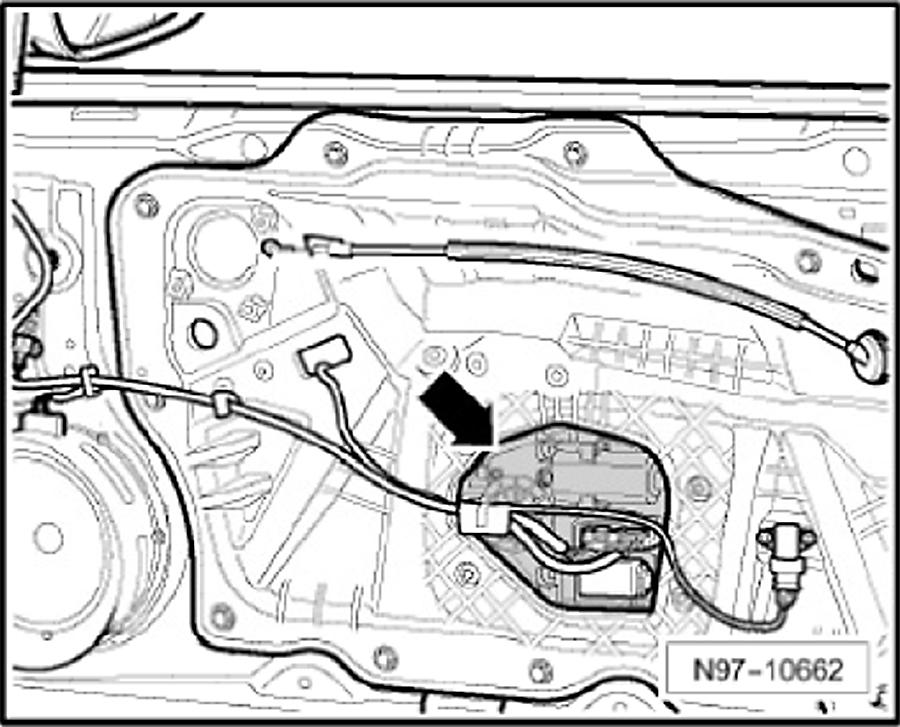

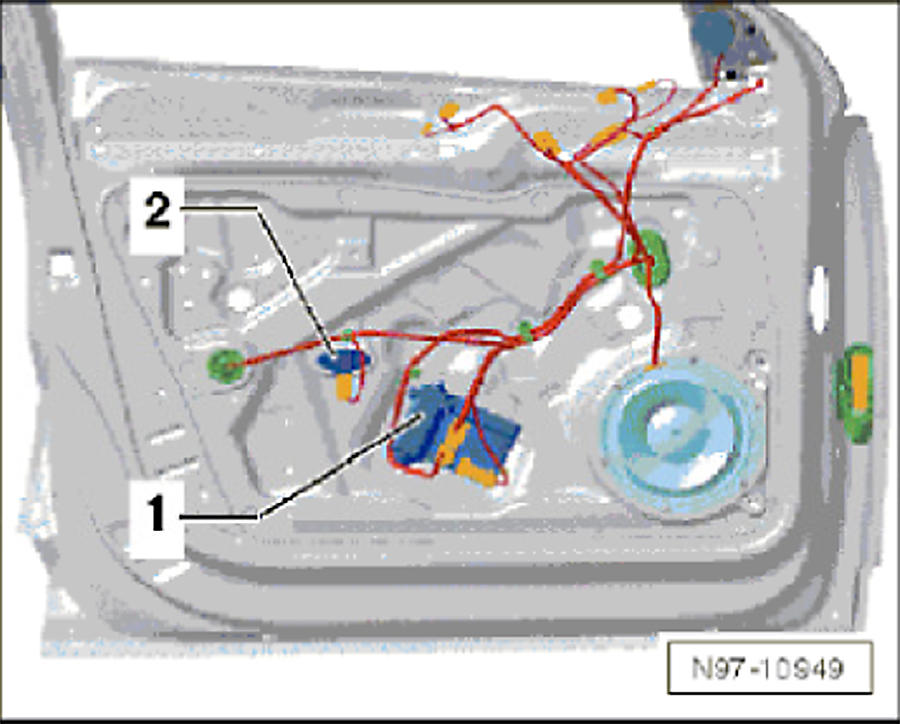

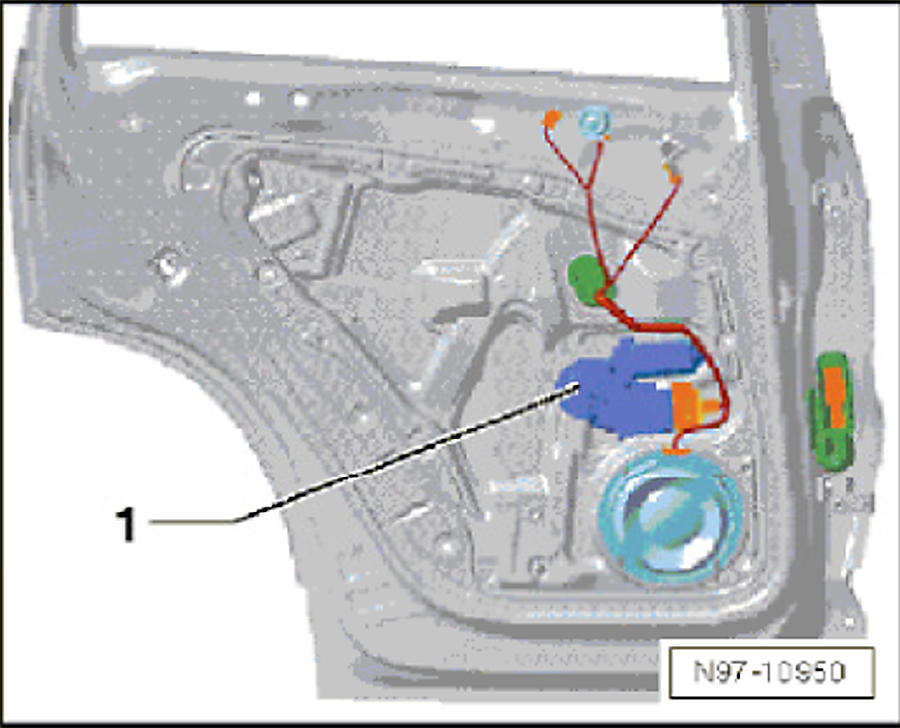

| Door Control Module (Driver's Side) (1) | In driver's door. See Figure. |
| Door Control Module (Front Passenger's Side) | In front passenger's door. See Figure. |
| Door Control Module (Left Rear) (1) | In left rear door. See Figure. |
| Door Control Module (Right Rear) | In right rear door. |
| Electro-Mechanical Parking Brake Control Module (3) | Under center console. See Figure. |

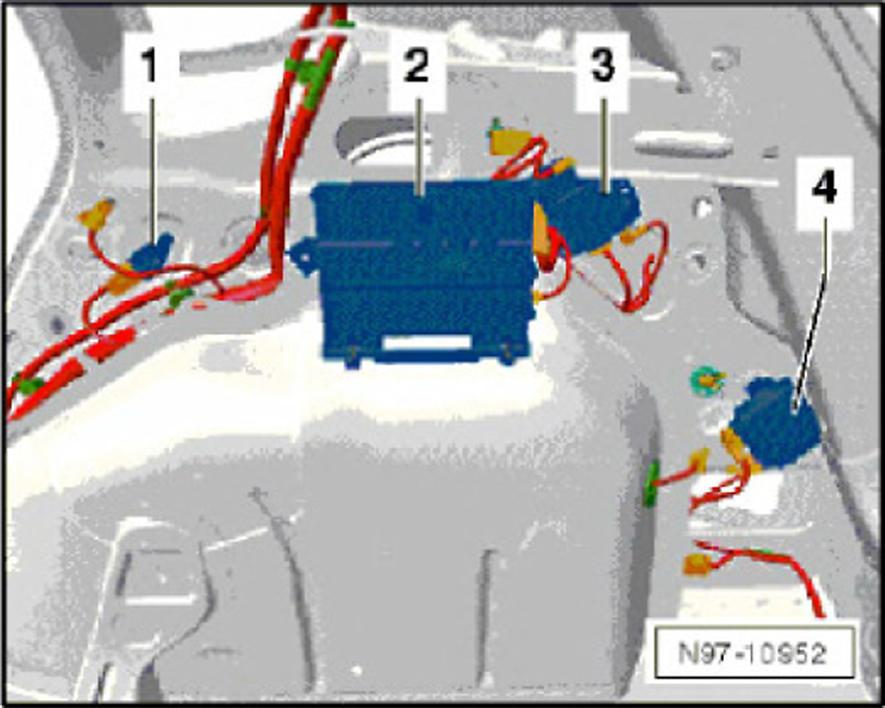

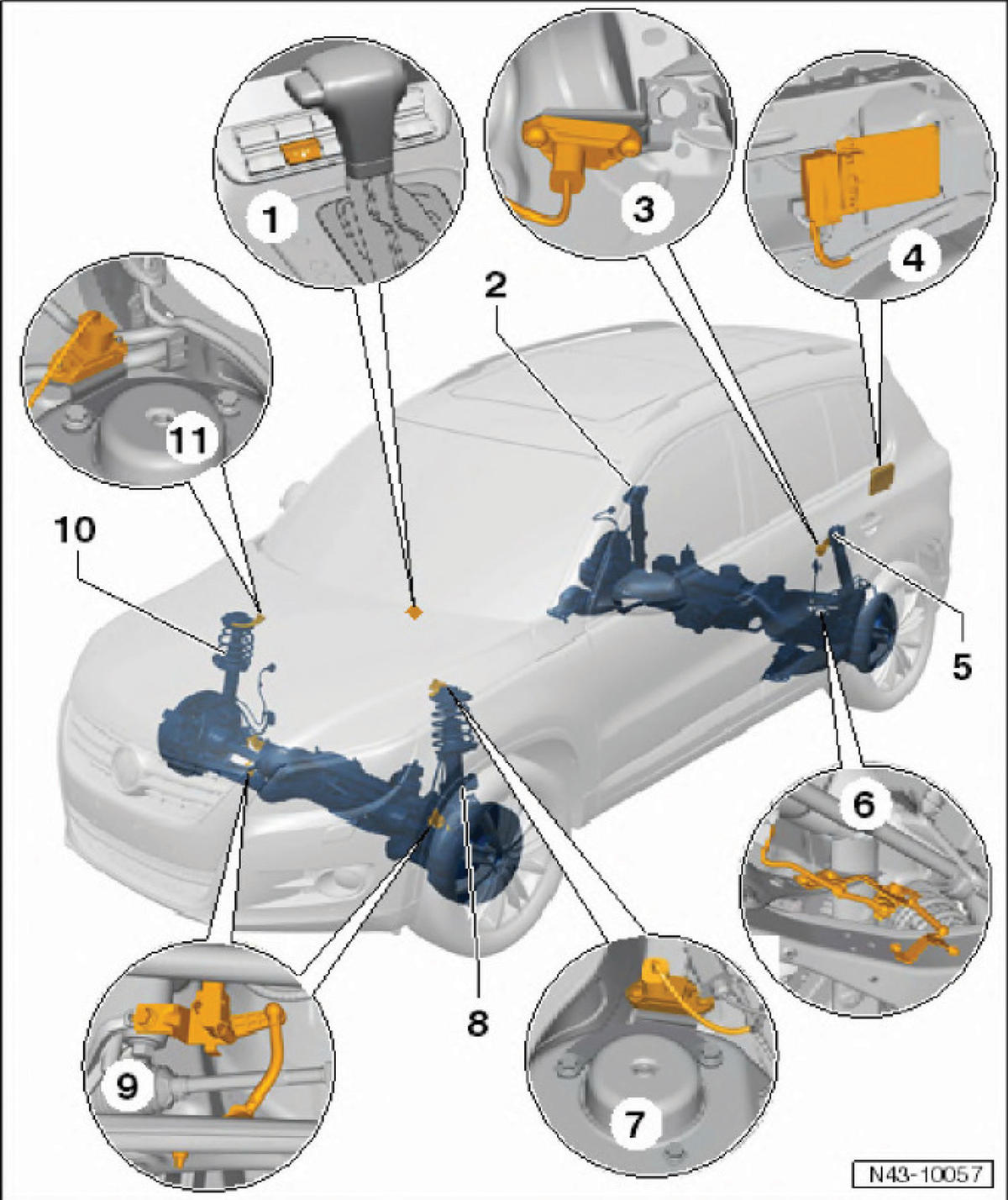

| Electronic Damping Control Module (4) | Left side of luggage compartment. See Figure. |
| Engine Control Module (5) | Right rear of engine compartment. See Figure. |
| ESP Sensor Unit | Under center console. |
| Fresh Air Blower Control Module | Behind glove box. |
| Fuel Pump Control Module | Under right rear seat. |
| Headlamp Range/Cornering Lamp Control Module | Behind glove box. |

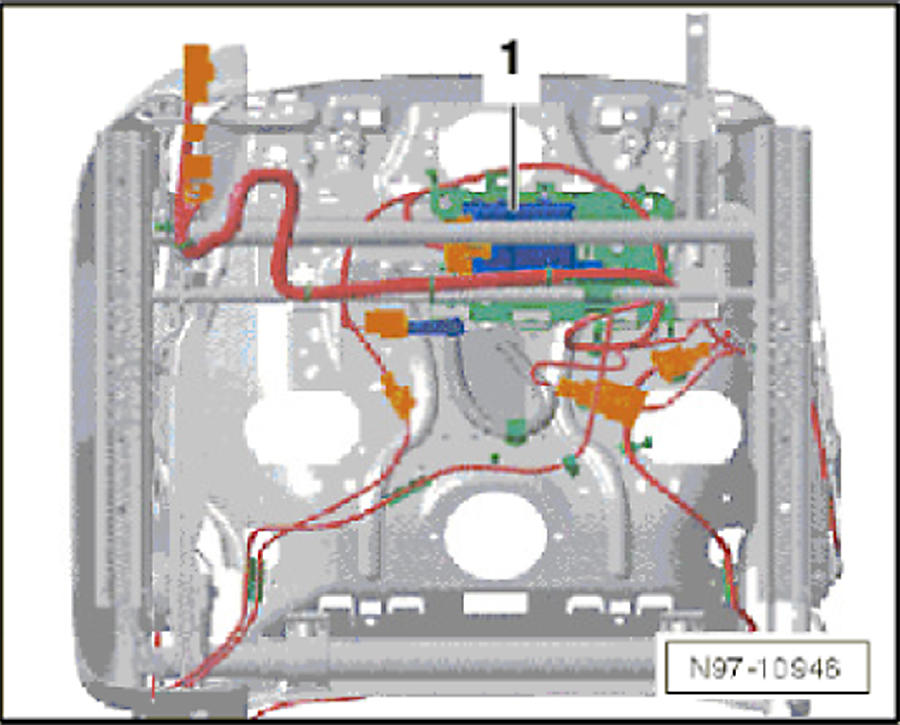

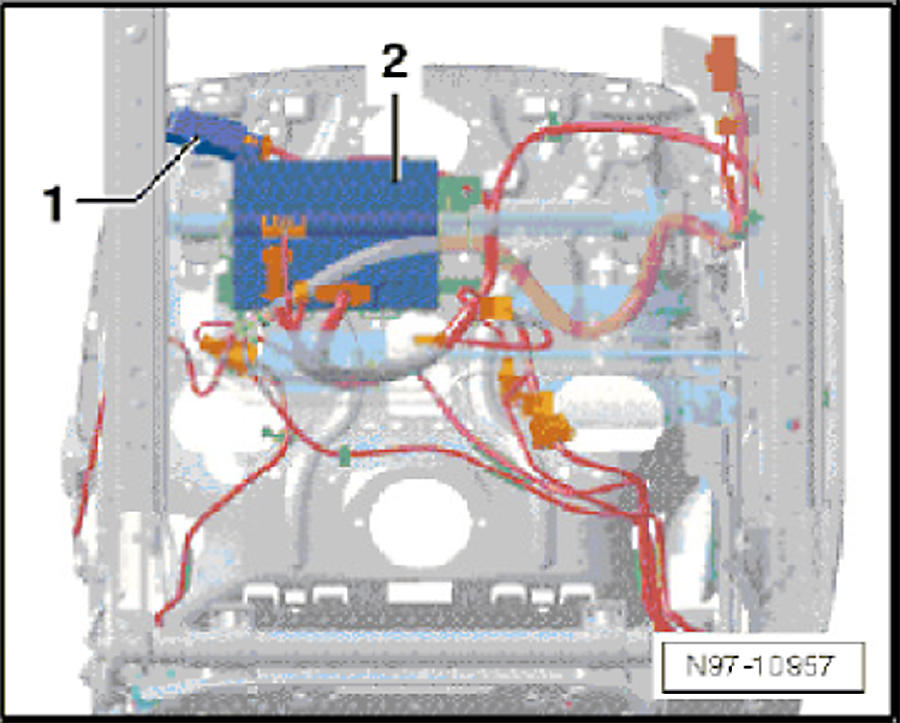

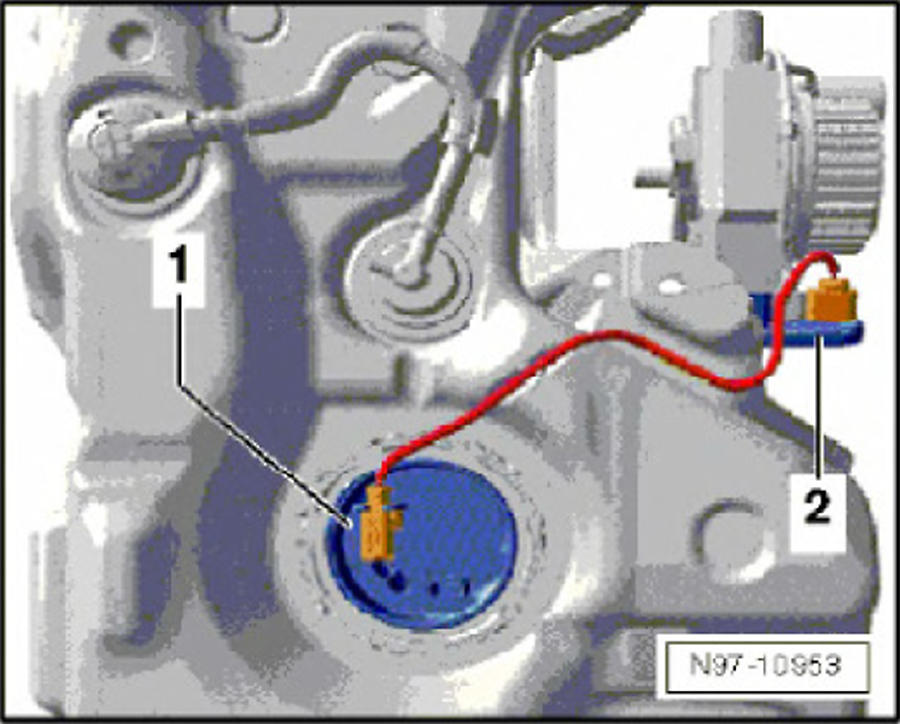

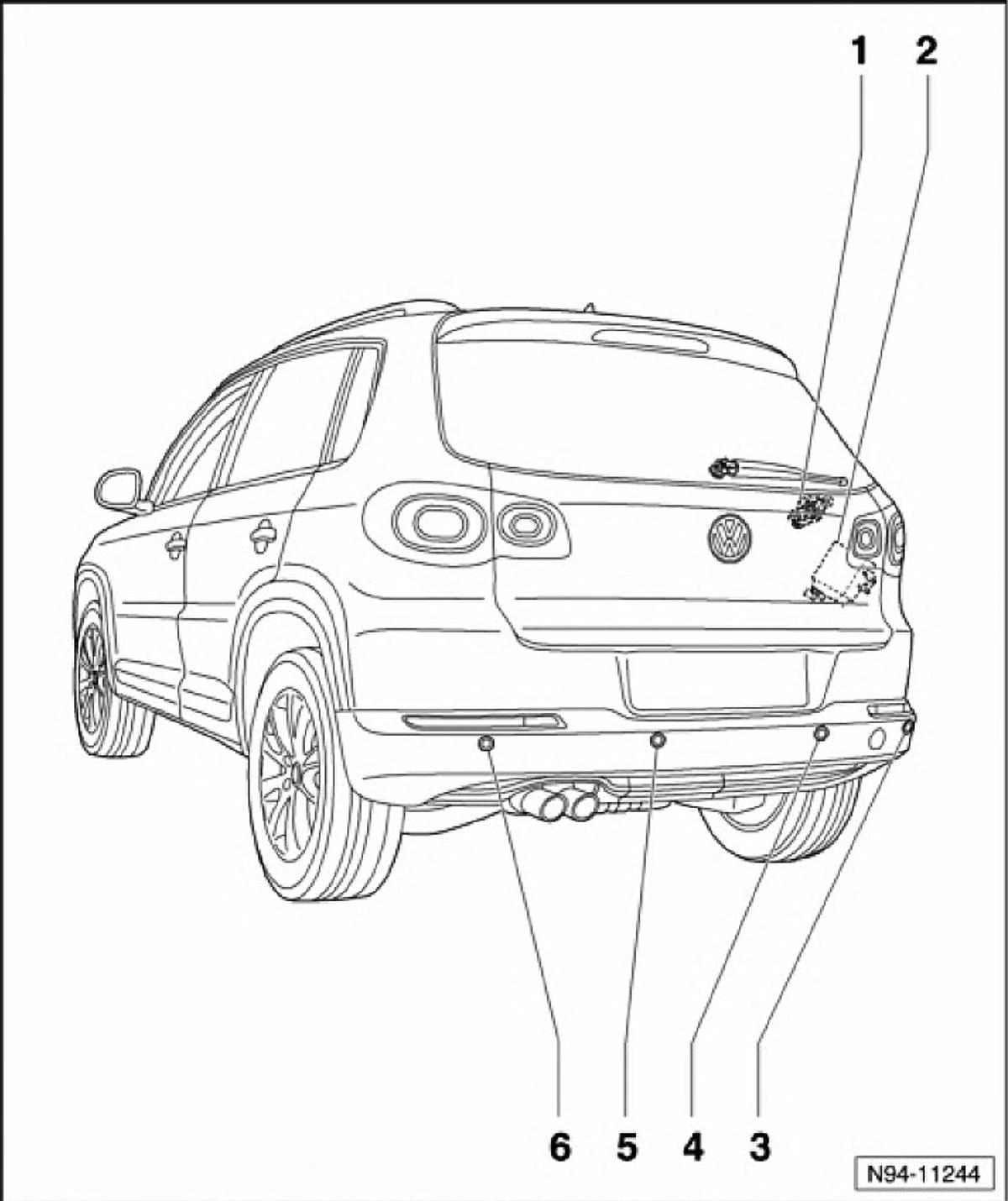

| Heated Seat Control Module (Driver's Side) (1) | On driver's seat frame. See Figure. |
| High-Intensity Gas Discharge Lamp Control Module (Left) (11) | On right front gas discharge headlight. See Figure. |
| High-Intensity Gas Discharge Lamp Control Module (Right) (2) | On right front gas discharge headlight. See Figure. |
| Memory Seat/Steering Column Adjustment Control Module (2) | Under driver's seat. See Figure. |
| Multimedia Control Module | Below center front armrest. |
| Operating Electronic & Telephone Control Module (2) | Under front passenger's seat. See Figure. |
| Parallel Parking Assist Control Module (1) | Left of steering column. See Figure. |
| Parking Aid Control Module (2) | Right side of luggage compartment. See Figure. |
| Power Steering Control Module (4) | Integral with steering gear assembly. See Figure. |

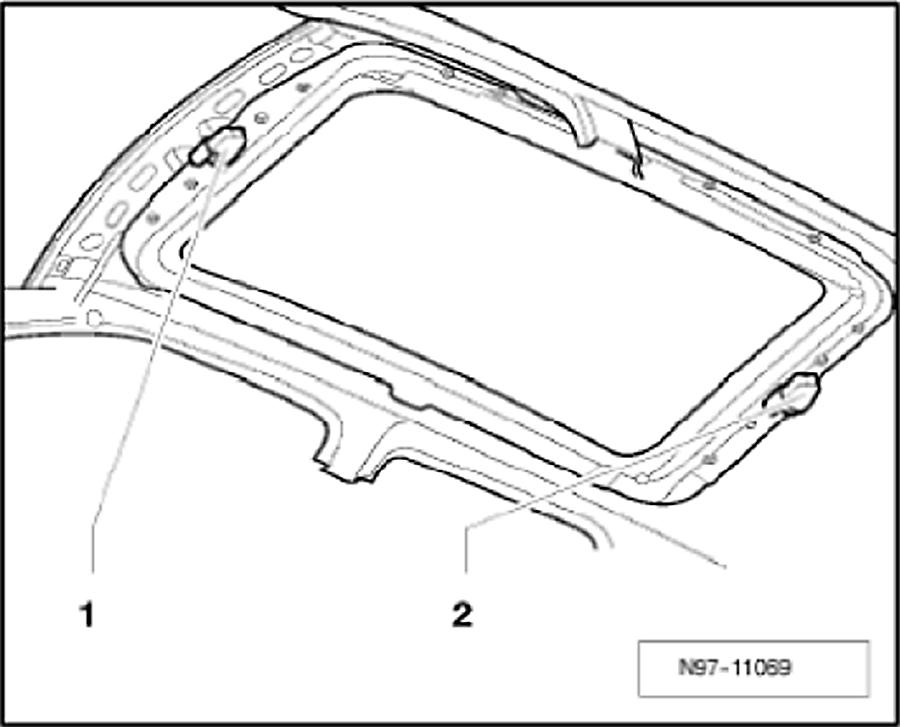

| Power Sunroof Control Module (1) | Front of sunroof. See Figure. |
| Radiator Fan Control Unit | Integrated into radiator fan assembly. |
| Rear View Camera Control Module (2) | Right side of luggage compartment. See Figure. |
| Roof Blind Control Module (2) | Rear of sunroof. See Figure. |
| Seat Occupied Recognition Control Module (1) | Under front passenger's seat. See Figure. |

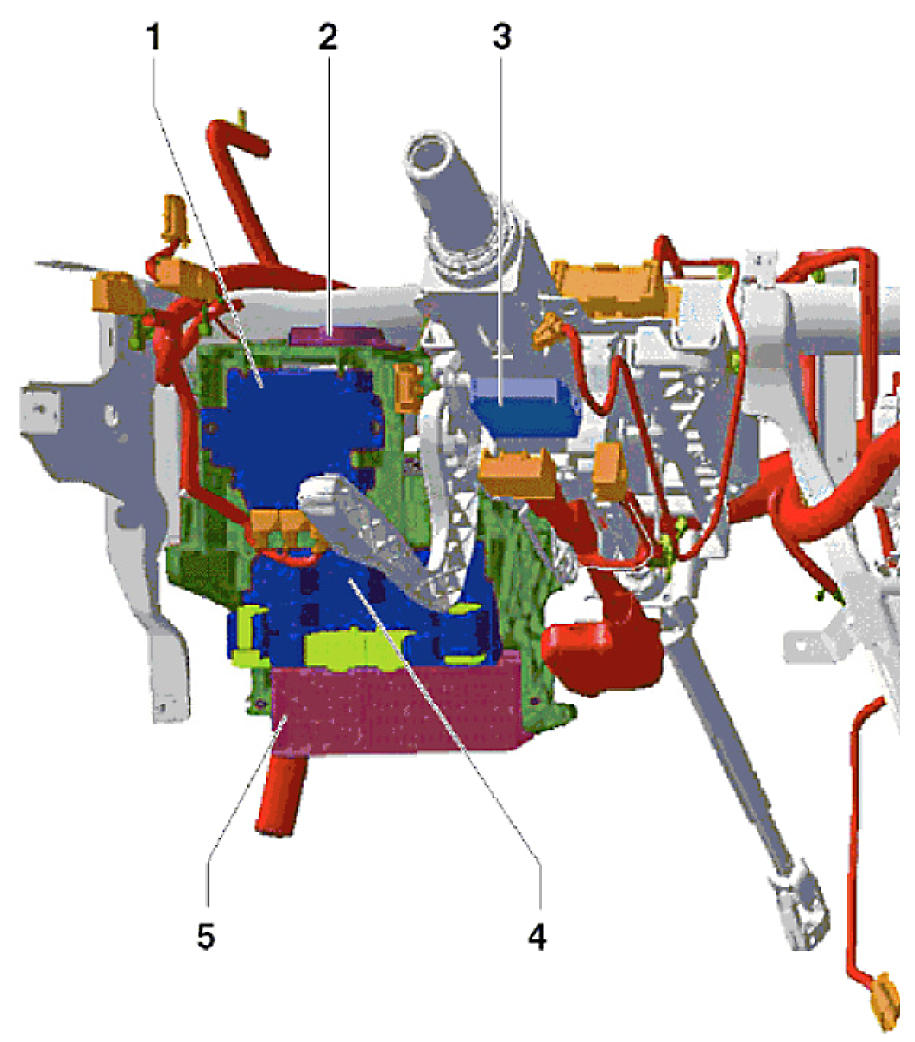

| Steering Column Electronic System Control Module (3) | Under steering column. See Figure. |

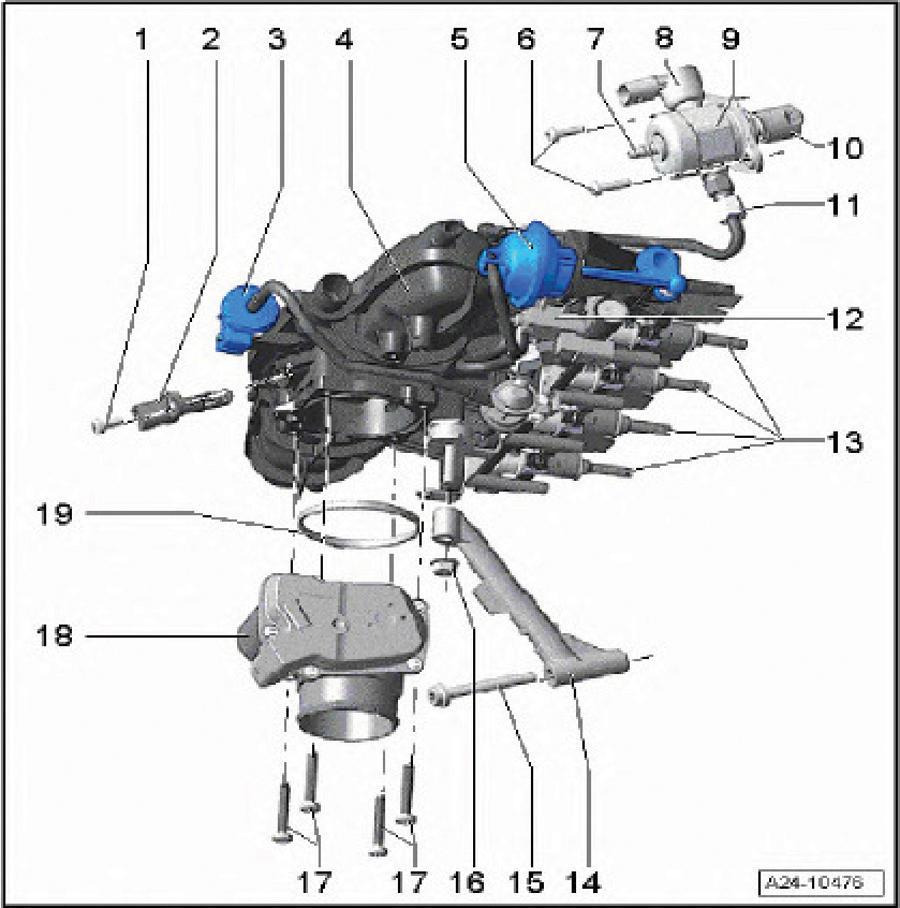

| Throttle Valve Module (18) | On left side of engine. See Figure. |
| Towing Recognition Control Module (1) | Left side of luggage compartment. See Figure. |
| Transmission Control Module (TCM) | Front of left front wheelwell. See Figure. |
| Vehicle Electrical System Control Module (4) | Behind left side of dash. See Figure. |
