Electrical Component Locator: Motors
MOTORS LOCATION

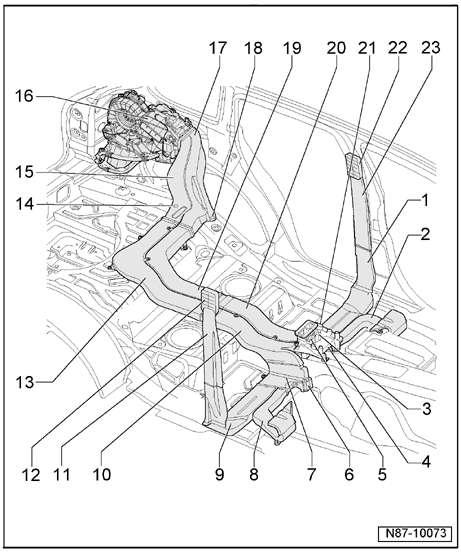

| Component | Location |
|---|---|
| Backrest Adjustment Motor (Passenger's) | Under passenger's seat. See Figure. |
| Belt Height Adjustment Motor | Right "B" pillar. See Figure. |
| "B" Pillar/Footwell Shut-Off Flap Motor (Left) (4) | Below rear of driver's seat. See Figure. |
| "B" Pillar/Footwell Shut-Off Flap Motor (Right) (6) | Below rear of front passenger's seat. See Figure. |
| Brake System Vacuum Pump | Right front of engine compartment. See Figure. |
| Center Vent Adjusting Motor (2) | Top left side of HVAC unit. See Figure. |
| Coolant Fan | Left front of engine compartment. See Figure. |
| Coolant Fan 2 | Right front of engine compartment. See Figure. |
| Coolant Pump | Right front of engine compartment. See Figure. |
| Defroster Flap Motor (2) | Top left side of HVAC unit. See Figure. |
| Differential Motor | On center differential. See Figure. |
| Fresh/Recirculating Air Door Servo Motor (12) | Lower right side of HVAC unit. See Figure. |
| Front Blower Regulation Motor (11) | Right side of HVAC unit. See Figure. |

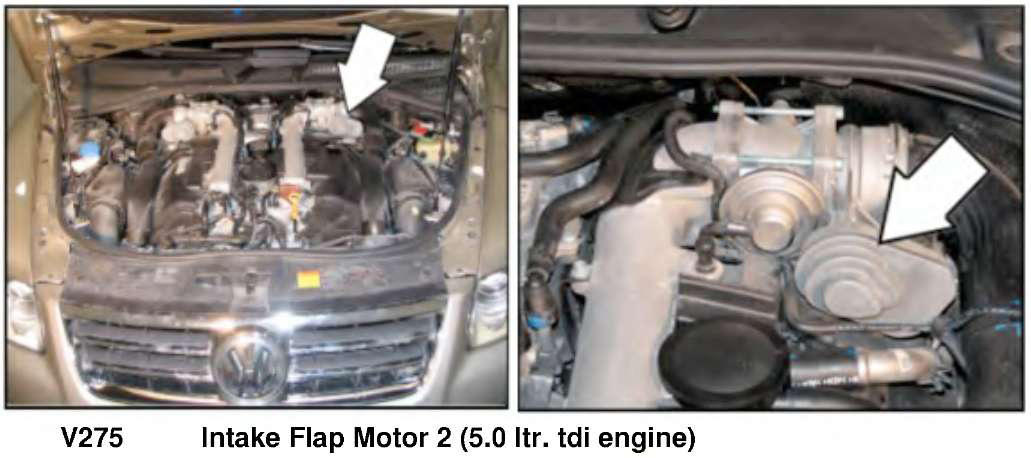

| Intake Flap Motor 2 (5.0L) | In left intake manifold. See Figure. |
| Intake Flap Motor (4.2L) (15) | Front of engine. See Figure. |

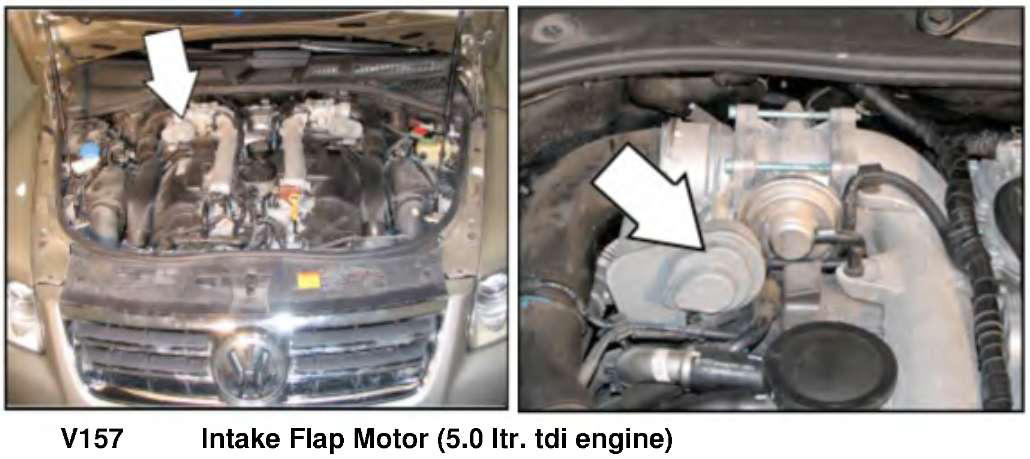

| Intake Flap Motor (5.0L) | In right intake manifold. See Figure. |
| Leak Detection Pump (LDP) | Right rear wheel well. See Figure. |
| Left Rear Footwell Vent Motor (5) | Below rear of driver's seat. See Figure. |
| Left Rear Upper Body Vent Motor (3) | Below rear of driver's seat. See Figure. |
| Level Control System Compressor Motor | Under vehicle. See Figure. |
| Rear Lid Unlock Motor | In tailgate. See Figure. |
| Rear Window Unlock Unit | Center of tailgate. See Figure. |
| Rear Windshield Wiper Motor | In tailgate. See Figure. |
| Recirculation Pump | Left front of vehicle. See Figure. |
| Seatback Adjustment Motor (Driver's) | Under driver's seat. See Figure. |

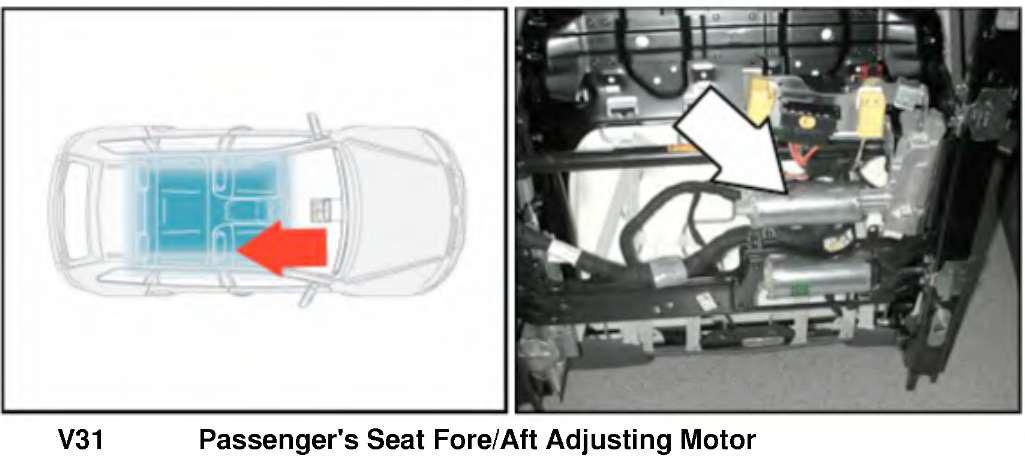

| Seat Fore/Aft Adjusting Motor (Passenger) | Under front passenger's seat. See Figure. |
| Seat Fore/Aft Adjusting Motor (Passenger's) | Below passenger's seat. See Figure. |
| Seat Inclination Adjustment Motor (Passenger's) | Bottom of passenger's seat. See Figure. |
| Secondary Air Injection (AIR) Pump Motor | Right front of engine compartment. See Figure. |
| Side Vent Motor (2) | Top left side of HVAC unit. See Figure. |
| Starter (3.2L) | Right side of engine. See Figure. |
| Steering Column Adjustment Motor (Axial) | On steering column. See Figure. |
| Steering Column Adjustment Motor (Vertical) | On steering column. See Figure. |
| Sunroof Motor | Front center of roof. See Figure. |
| Temperature Flap Actuator (Right) (6) | Right side of HVAC unit. See Figure. |
| Throttle Drive (3.2L) | On throttle body. See Figure. |
| Transfer Fuel Pump (FP) | In fuel tank. See Figure. |

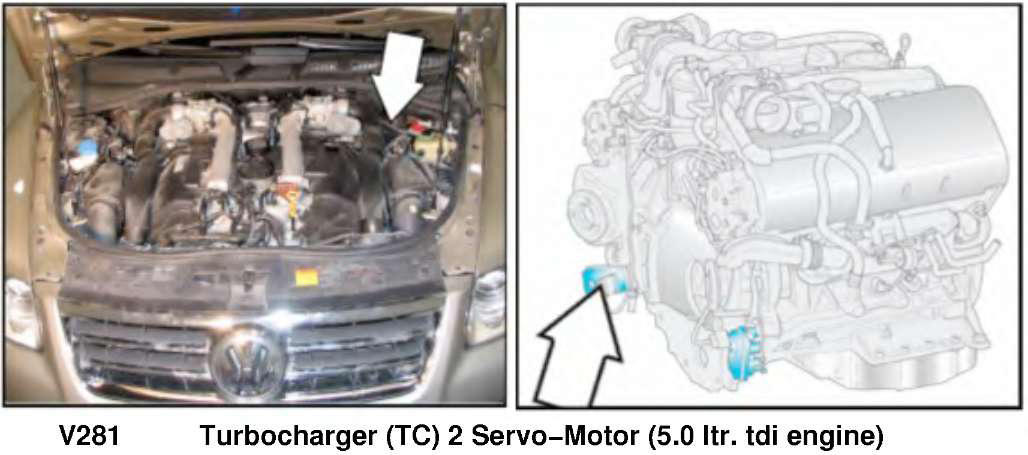

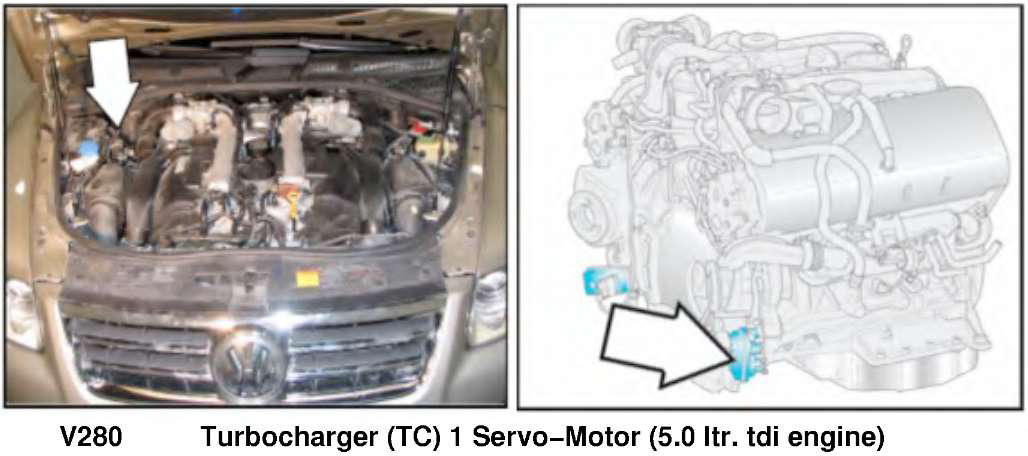

| Turbocharger (TC) 1 Servo-Motor | Lower right rear of engine. See Figure. |
| Turbocharger (TC) 2 Servo-Motor | Lower left rear of engine. See Figure. |
| Variable Intake Manifold Runner Motor (4.2L) (13) | Front of engine. See Figure. |
| Window Regulator Motor (Driver's) | In driver's door. See Figure. |
| Window Regulator Motor (Left Rear) | In left rear door. See Figure. |
| Windshield & Rear Window Washer Pump | Right side of engine compartment. See Figure. |
| Windshield Wiper Motor | Center rear of engine compartment, under cowl trim. See Figure. |
