Electrical Component Locator
>>
Connectors
Electrical Component Locator: Connectors
CONNECTORS LOCATION
Component
Location
T4az (4 Pin)
Below left side of dash. See
Figure
.
T6mb (Black, 6 Pin)
Right side of engine compartment. See
Figure
.

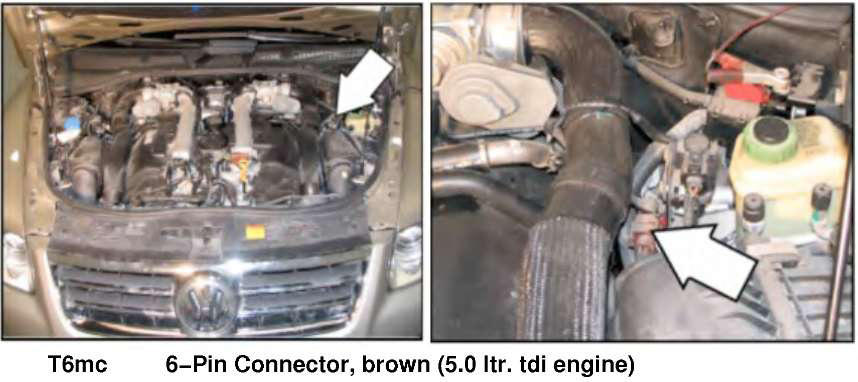

T6mc (Brown, 6 Pin)
Left side of engine compartment. See
Figure
.
T7 (7 Pin)
Under center of rear bumper. See
Figure
.
