Differential Control Module - Module Side Connector End View (T47a)

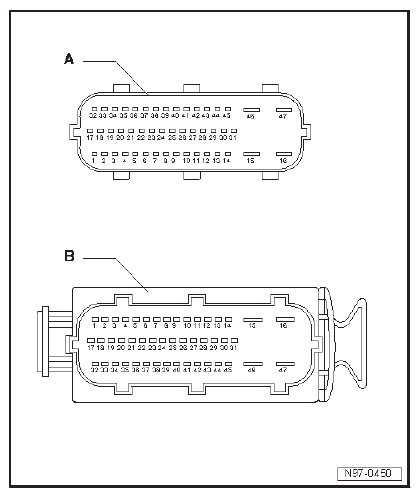

Fig 1: Differential Control Module - Module Side Connector End View (T47a)
G10539165Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A Differential Control Module - Module side
B 47-pin connector -T47a-


Fig 1: Differential Control Module - Module Side Connector End View (T47a)
G10539183Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A Differential Control Module - Module side
B 47-pin connector -T47a-
