Special Tools

Special tools and workshop equipment required

• Diagnostic Operation System VAS 5051 or Vehicle Diagnosis and Service System VAS 5052
  Fig 1: Identifying Special Tool - VAS 5051

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Trim Removal Wedge 3409
  Fig 2: 3409 Wedge

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Release Tool T10315

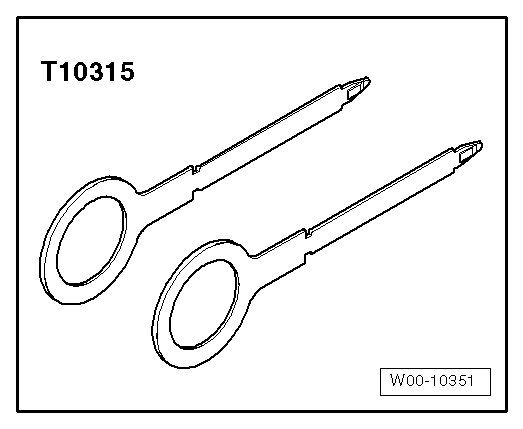

  Fig 3: Release Tool T10315

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Special Hook VAS 3370
  Fig 4: Front End Hook VAS 3370

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Radio Unlock Tool T10057
  Fig 5: Identifying Radio Removal Tool T10057

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Radio Unlock Tool 3316
  Fig 6: Identifying Radio Release Tool 3316

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Locking Pin T40011

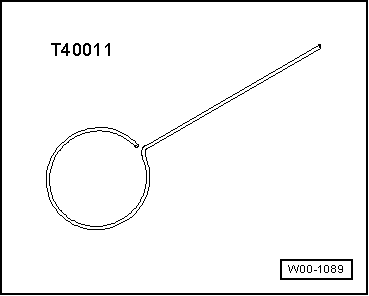

  Fig 7: Locking Pin T40011

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Edition 11242010
