Compass Module Location (TT 91-07-106)

Publication date: 2007-01-01
Reference number: TT 91-07-106

COMPASS MODULE LOCATION

TECH TIPS

Reference Number(s): TT 91-07-106

VOLKSWAGEN:	2006> Passat
GROUP:	91 - Radio, Telephone, Navigation

SERVICE INFORMATION

2006> Passat - Compass Module Location

Location of the Compass Module may not be clear in the B6 Passat ElsaWeb Repair Manual. Located on the right side rear of the vehicle, the module position is similar for both the sedan (LH picture) and the wagon (RH picture).

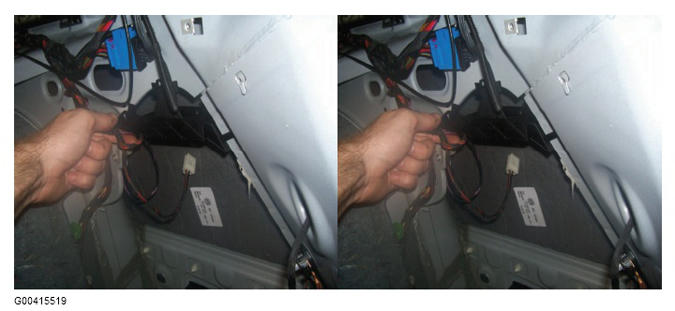

Fig 1: Compass Module Location
