Operating Electronics and Telephone Control Module Connector End Views (J412, T18d)

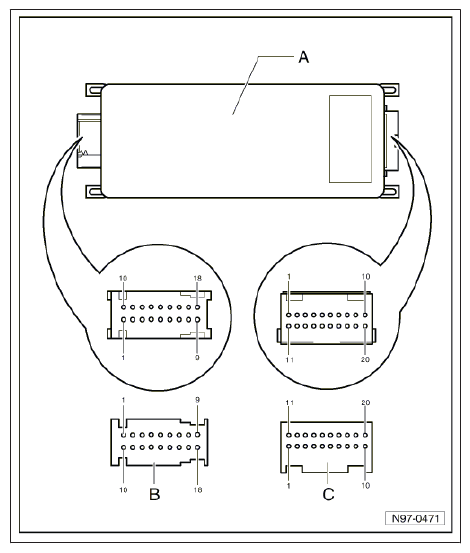

Fig 1: Operating Electronics and Telephone Control Module Connector End Views (J412, T18d)
G10375859
A Operating Electronics and Telephone Control Module - J412 - Connector
B 18-Pin Connector, in wirng harness (T18d)
C 20-Pin Connector, in wirng harness
