Headlamp Range Control Module Connector End Views (J431, T26c)

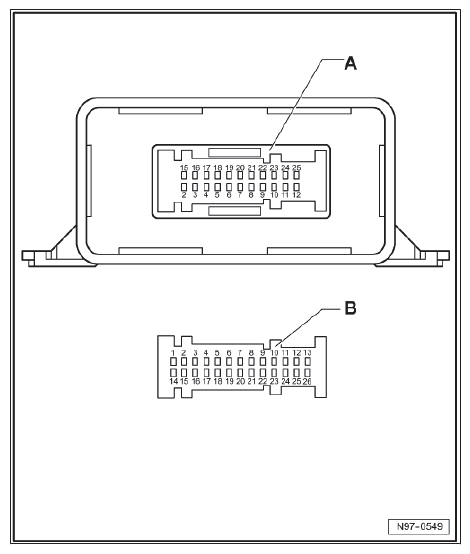

Fig 1: Headlamp Range Control Module Connector End Views (J431, T26c)
G10375857
A Headlamp Range Control Module -J431 Connector
B 26-Pin Connector, -T26c-, in wiring harness
