Engine Control Module (ECM) Connector End Views (J623, T94, T60)

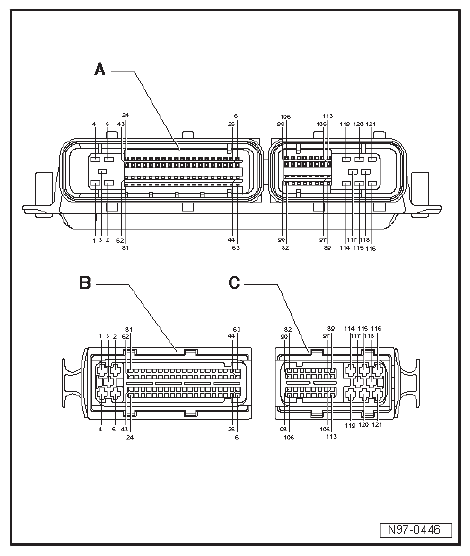

Fig 1: Engine Control Module (ECM) Connector End Views (J623, T94, T60)
G10375848
A Engine Control Module (ECM) -J623- Connector
B 94-Pin Connector, in wiring harness (T94)
C 60-Pin Connector, in wiring harness (T60)
