Engine Control Module (ECM) Connector End Views (J623, T121)

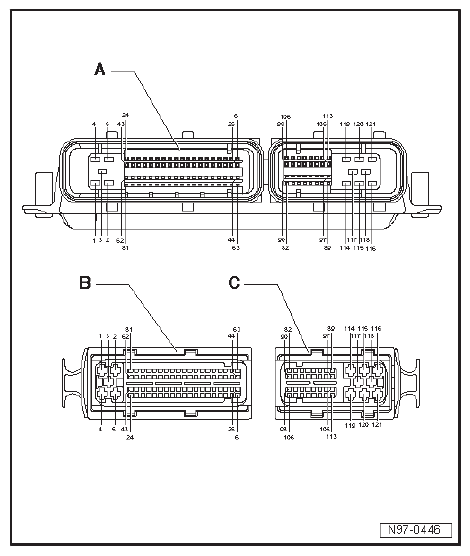

Fig 1: Engine Control Module (ECM) Connector End Views (J623, T121)
G10375847
A Engine Control Module (ECM) -J623-
Connector (Engine Control Module (ECM) -J623-):
B 81-Pin Connector, in wiring harness (T121)
C 40-Pin Connector, in wiring harness (T121)
