ABS Control Module (Models With ABS/EDL/ASR) Connector End Views (J104, T26a)

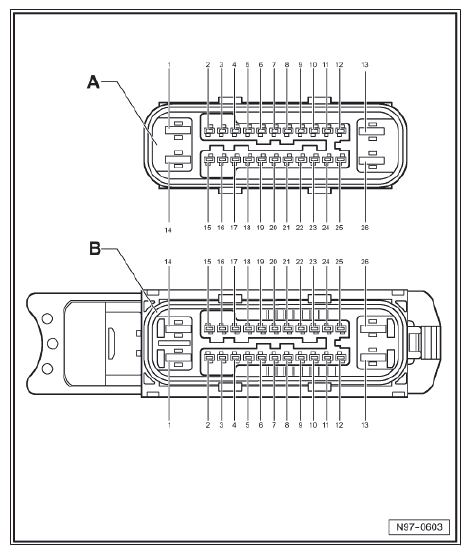

Fig 1: ABS Control Module (Models With ABS/EDL/ASR) Connector End Views (J104, T26a)
G10375849
A ABS Control Module (models with ABS/EDL/ASR) -J104-
26-Pin Connector:
B 26-Pin Connector, in wiring harness (T26a)
