Cross Member For Steering Column, Assembly Overview

NOTE: The following list refers to items in Fig 1.

1. Steering column cross member
2. Adjustment bracket
3. Hex bolt, 25 N.m (18 ft. lb)
4. Strut, right
5. Hex bolt
6. Speed nut
7. Strut, left
8. Steering column
9. Steering lock housing
10. Plug
11. Bulkhead reinforcement
12. Multiple point socket head bolt, 10 N.m (7.4 ft. lb)

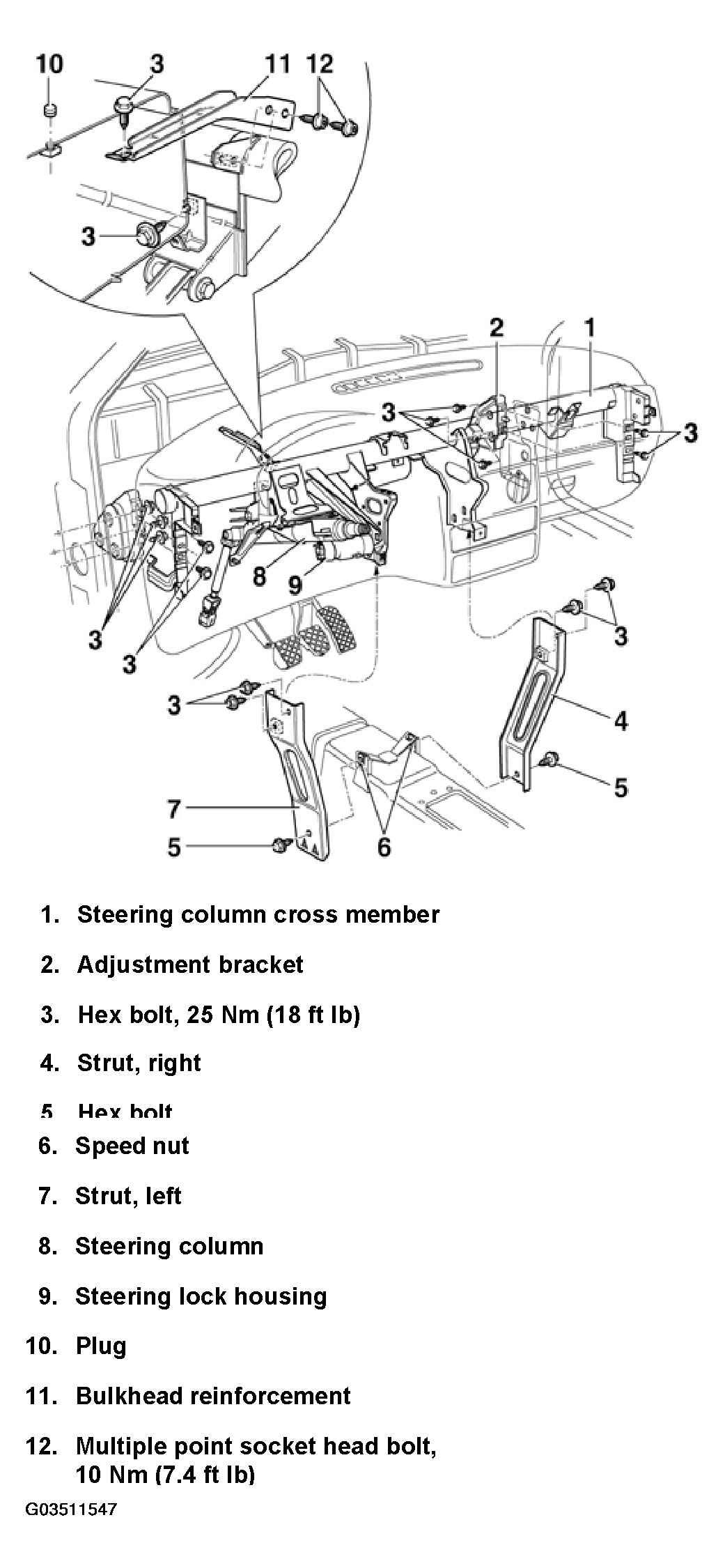

Fig 1: Assembling Cross Member For Steering Column With Torque Specifications

Courtesy of VOLKSWAGEN OF AMERICA, INC.
