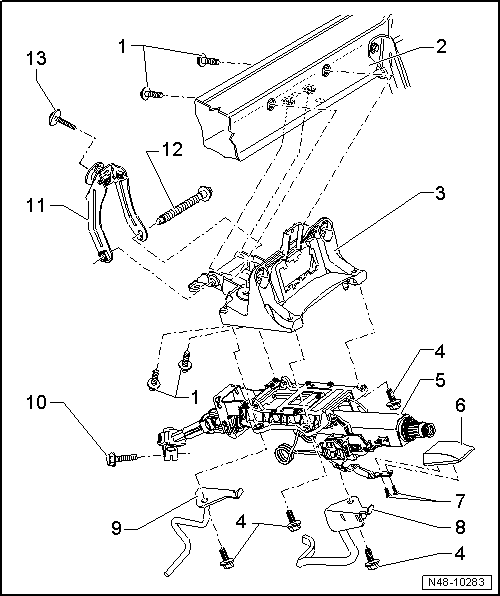

Steering Column Assembly Overview, Through My 2008
NOTE:
Welding and straightening work on supporting or wheel carrying components of suspension is not permitted.
Always replace self-locking nuts.
Always replace corroded bolts/nuts.
- Bolt
- 20 Nm
- Lateral Control Arm for Steering Column
- Mounting Bracket
- Removing and installing, refer to MOUNTING BRACKET, THROUGH MY 2008 .
- Bolt
- 20 Nm
- Always replace after removal.
- Steering Column
- Removing and installing, refer to STEERING COLUMN, THROUGH MY 2008 .
- Handle Plate
- Bolt
- 3 Nm
- Brake Pedal Crash Brace
- Clutch Pedal Crash Brace
- Bolt
- 30 Nm
- Always replace after removal.
- Strut
- Removing and installing, refer to STRUT, THROUGH MY 2008 .
- Bolt
- 20 Nm
- Bolt
- 20 Nm
