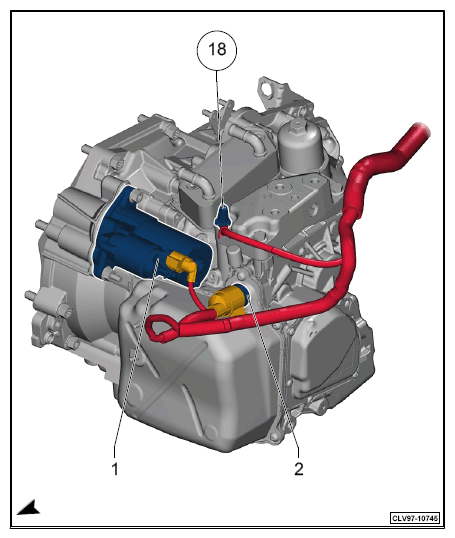

Comp. LOC. Vehicle Front: Transmission

  1. 1  - Starter -B-
  2. 2  - DSG transmission Mechatronic -J743-
  3. 2  - Transmission input speed sensor -G182-
  4. 2  - Clutch oil temperature sensor -G509-
  5. 18  - Ground connection on engine block
G12750424Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
