Engine Compartment Left, II

  1. 1  - Driver front airbag crash sensor
  2. 2  - Left front damping adjustment valve -N336-
  3. 3  - Left front ABS wheel speed sensor -G47-
  4. 4  - Left front brake pad wear sensor -G34-
  5. 5  - Secondary air injection pump motor -V101-
  6. A  - 10-pin connector -T10g-
  7. A  - 6-pin connector -T6z-
  8. 12  - Ground connection in engine compartment, left
  9. 640  - Ground connection 2 in engine compartment, left
  10. 652  - Transmission/engine ground connection
  11. 671  - Ground connection 1 on left front longitudinal member

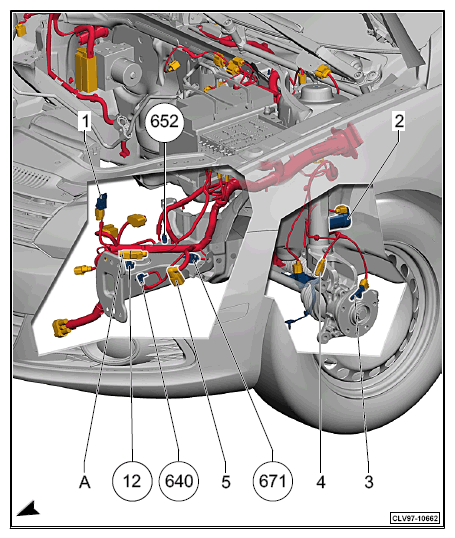

G12750422Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
