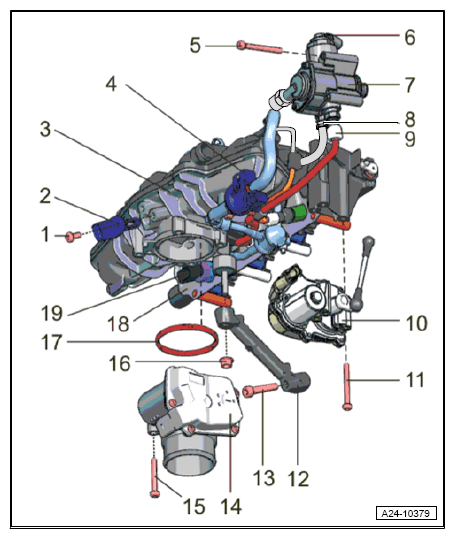

Intake Manifold Overview: Notes

  1. 2  - Intake air temperature sensor -G42-
  2. 4  - EVAP canister purge regulator valve 1 -N80-
  3. 6  - Fuel pressure regulator valve -N276-
  4. 7  - Low fuel pressure sensor -G410-
  5. 10  - Intake flap motor -V157-
  6. 14  - Throttle valve control module -J338-
  7. 19  - Fuel pressure sensor -G247-
G12750405Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
