Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

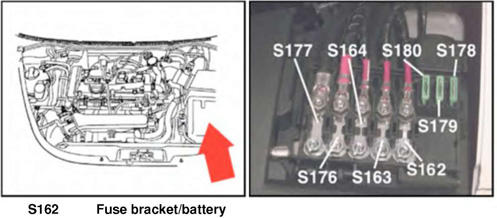

Fuse Bracket On battery cover. See Figure.
Fuse Panel Behind left side of dash.
Relay Panel Behind left side of dash.
Thirteen Position Auxiliary Relay Panel Behind left side of dash, integral to relay panel.
