Airbag Control Module
Removing
When working on the airbag control module -J234- always read the Safety Instructions for working with airbags, belt tensioners and battery cut-out units. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, GENERAL SAFETY PRECAUTIONS .
-- Disconnect the vehicle battery. Refer to [For engine(s) AXQ, BMX, BHK, BWF, BAR, BAA, BKW] Removal and Installation .
-- Remove center console storage compartment. Refer to CENTER CONSOLE STORAGE COMPARTMENT
-- Remove shifter cover. Refer to SHIFTER COVER

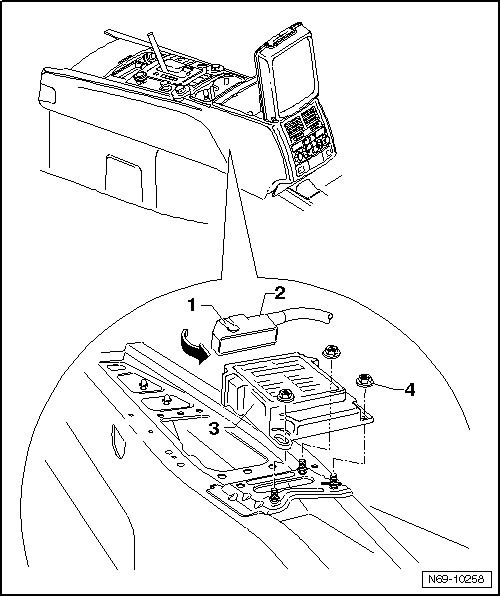

-- Move the locking lever -1- away from the connector -2- -arrow- and disconnect the connector from the control module -3-.
-- Remove three nuts -4- (9 Nm).
-- Remove the control module from the vehicle.
Installing
-- To install, perform the steps used for removal in reverse order.
-- Switch on ignition.
Make sure that no persons are in the vehicle.
-- Connect battery. Refer to [For engine(s) AXQ, BMX, BHK, BWF, BAR, BAA, BKW] Removal and Installation .
-- If the control unit was replaced, it must be coded. For adapting components (coding), refer to COMPONENTS, ADAPTING .
