Passive Occupant Detection System Overview

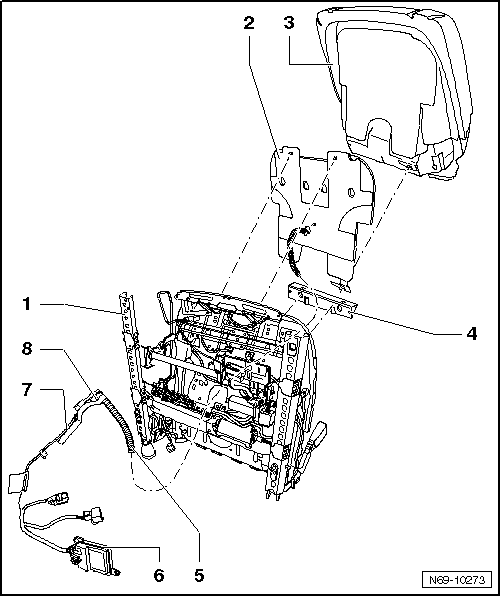

Fig 1: Exploded View Of Passenger Occupant Detection System (PODS) (USA only)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Frame
Passive Occupant Detection System Mat
- Must not be removed from pressure hose -5- and upholstery of front seat cushion -3-
Front Seat Cushion Upholstery
- Must not be separated from seat occupied recognition mat -2-.
Insertion Profile
- Note location
Pressure Hose
Passenger Occupant Detection System Control Module -J706-
Front Seat Wiring Harness
Passenger Occupant Detection System Pressure Sensor -G452-
