Telephone Operating Electronics Control Module, Through 11.06

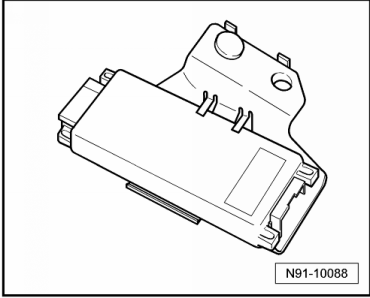

Fig 1: Identifying Telephone Operating Electronics Control Module, Rabbit Sedan Through 05.06

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The telephone operating electronics control module is installed at the left above the glove compartment.

Removing

-- Remove cover from glove compartment. Refer to Removal and Installation

-- Remove owner's manual compartment. Refer to Removal and Installation

-- Remove radio or radio navigation system if this was not already done with removal of the owner's manual compartment. "Delta" radio, removing and "Radio Navigation System 2" with MFD, removing. Refer to DELTA RADIO and RADIO NAVIGATION SYSTEM 2 WITH 6.5 INCH COLOR DISPLAY .

-- Remove control module bracket mounting bolt from inside glove compartment -1-.

Fig 2: Identifying Control Module Bracket Mounting Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove operating electronics control module and guide it into glove compartment with bracket and wires connected.

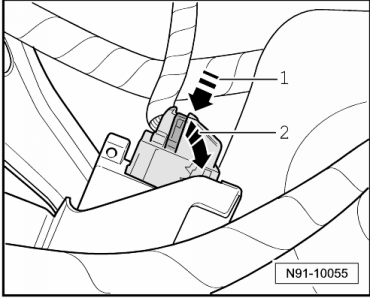

-- Release connector by pressing on catch spring -1- and swing bracket -2- in direction of arrow.

Fig 3: Identifying Catch Spring -1- And Swing Bracket -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

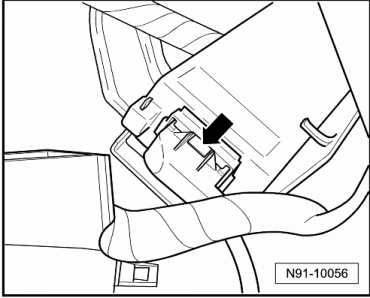

-- Release connector by pressing on catch spring -arrow- and remove connector.

Fig 4: Identifying Catch Spring -Arrow- And Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.
