Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

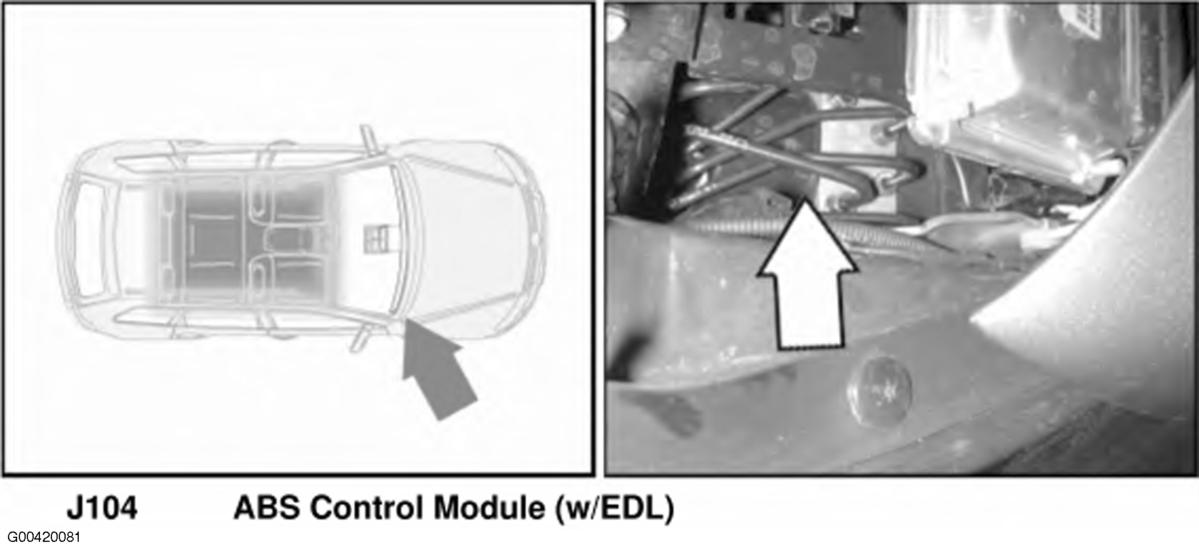

| ABS Control Module (W/ELD) | Right rear of engine compartment. See Figure . |

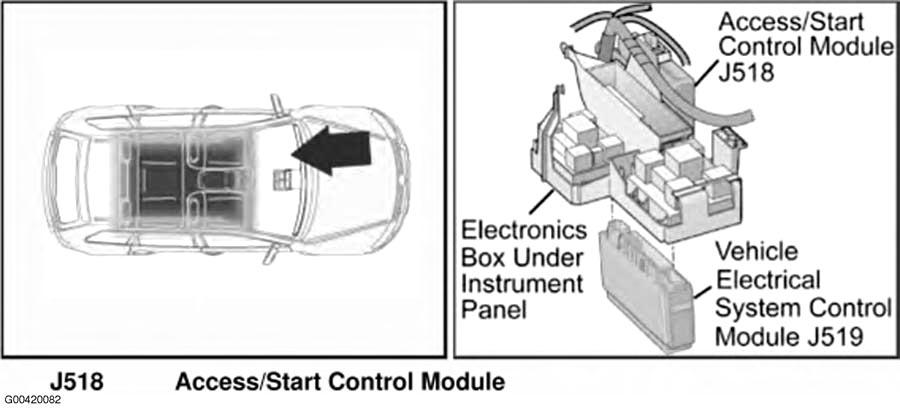

| Access/Start Control Module | Below left side of dash. See Figure . |

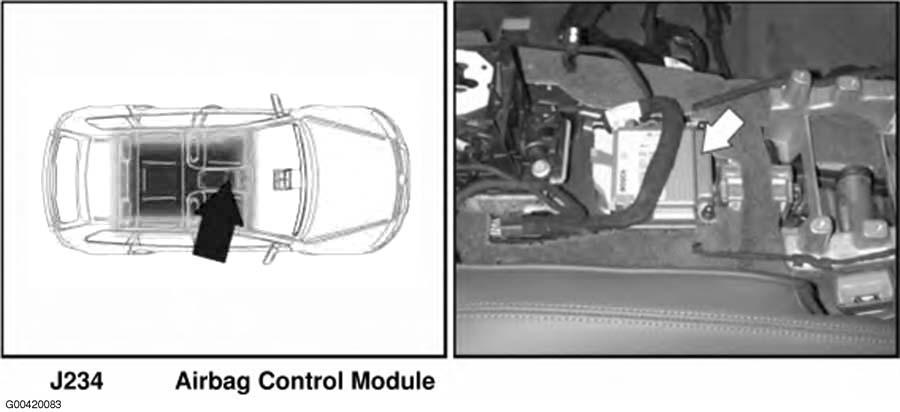

| Airbag Control Module | Under center console. See Figure . |

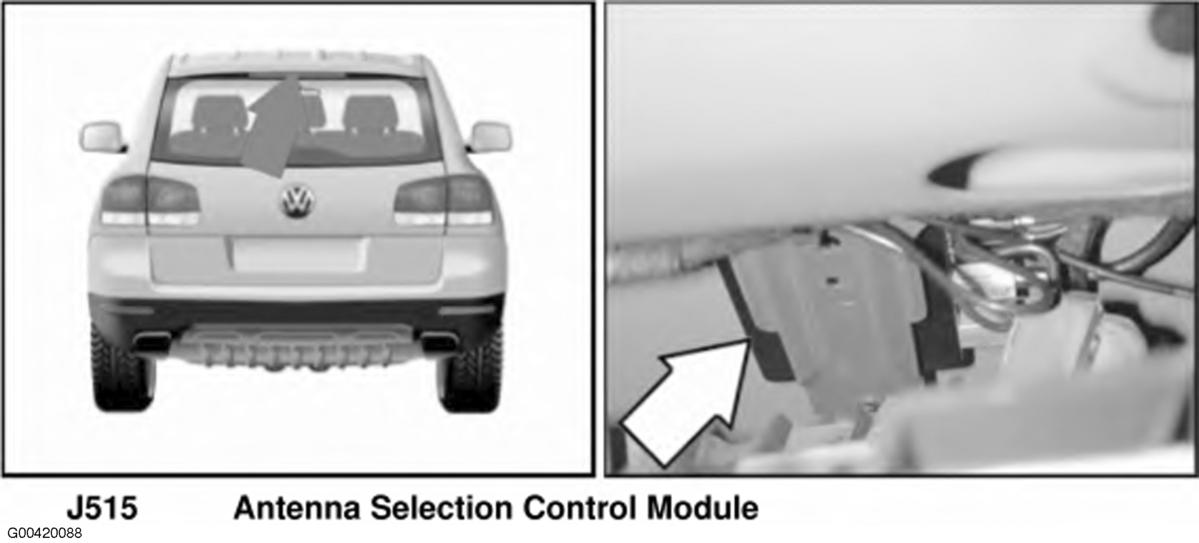

| Antenna Selection Control Module | Center rear of roof. See Figure . |

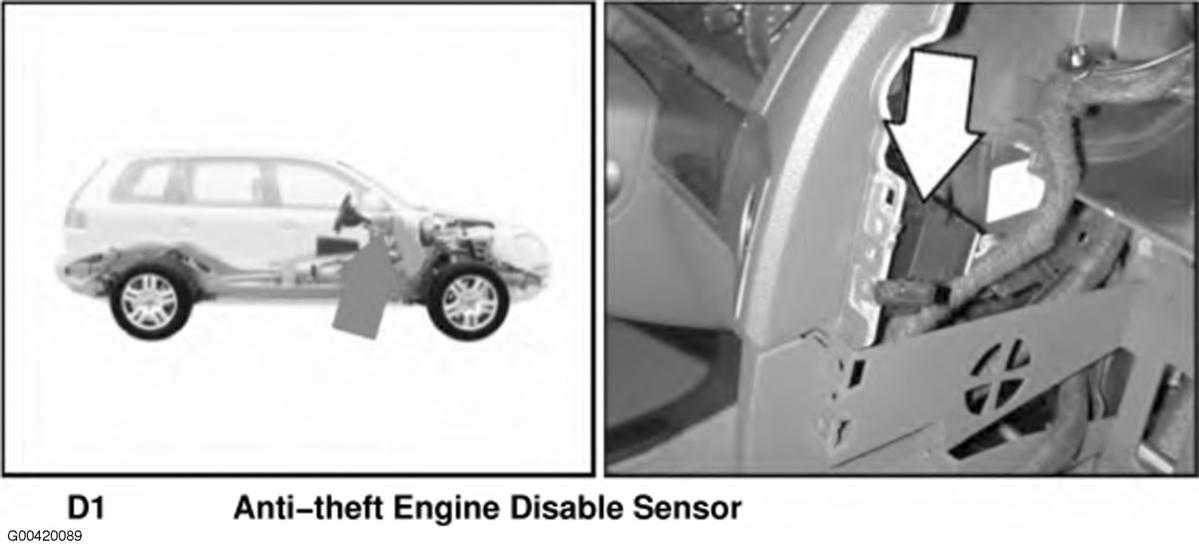

| Anti-Theft Engine Disable Sensor | At right end of dash. See Figure . |

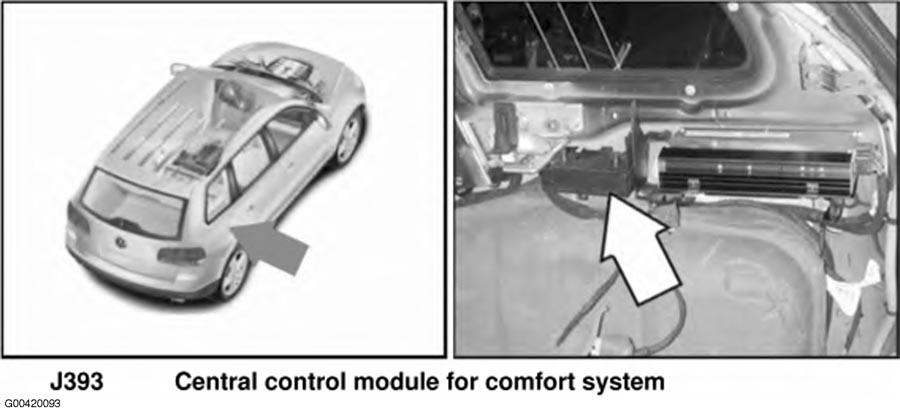

| Central Control Module For Comfort System | Right rear cargo area. See Figure . |

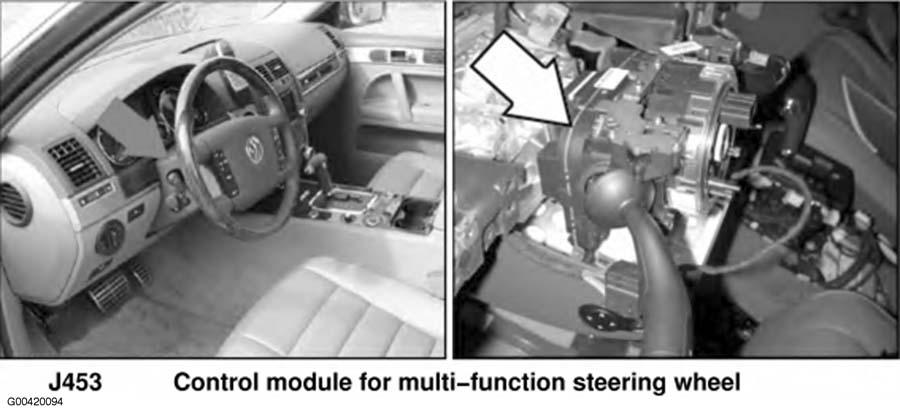

| Control Module For Multi-Function Steering Wheel | On steering column. See Figure . |

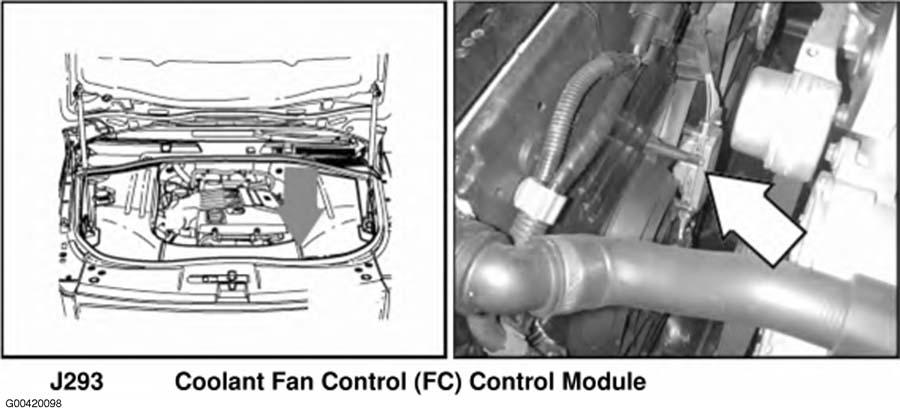

| Coolant Fan Control (FC) Module | Front of engine compartment. See Figure . |

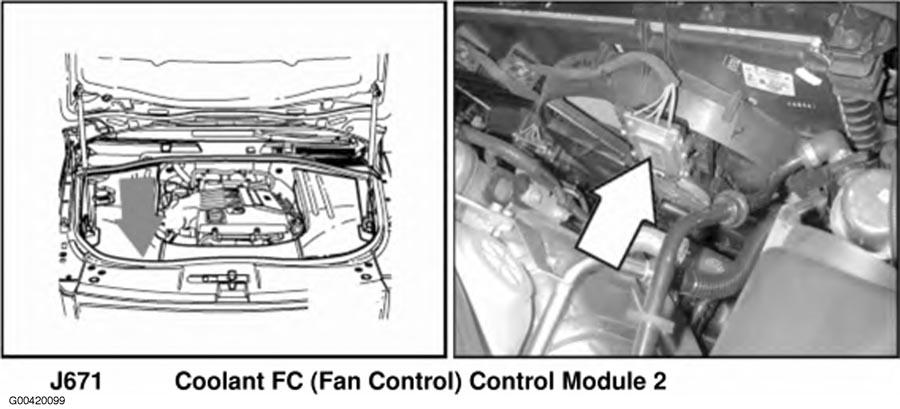

| Coolant Fan Control (FC) Module 2 | Front of engine compartment. See Figure . |

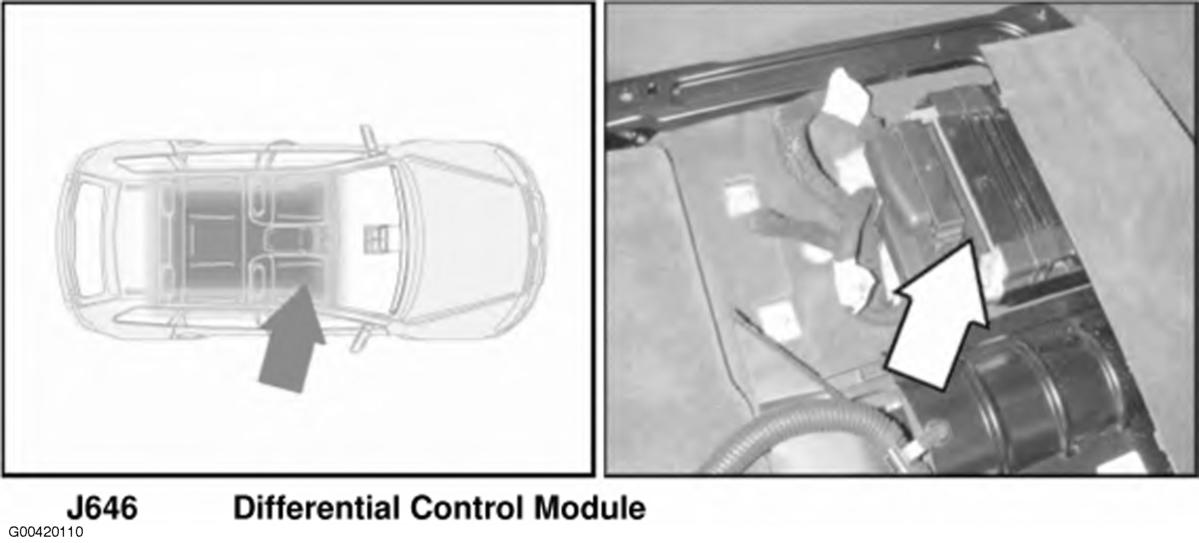

| Differential Control Module | Under passenger's seat. See Figure . |

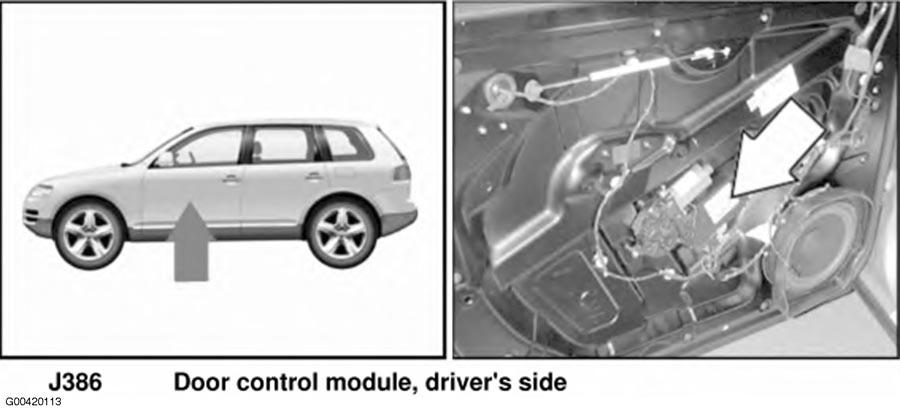

| Door Control Module (Driver's) | In driver's door. See Figure . |

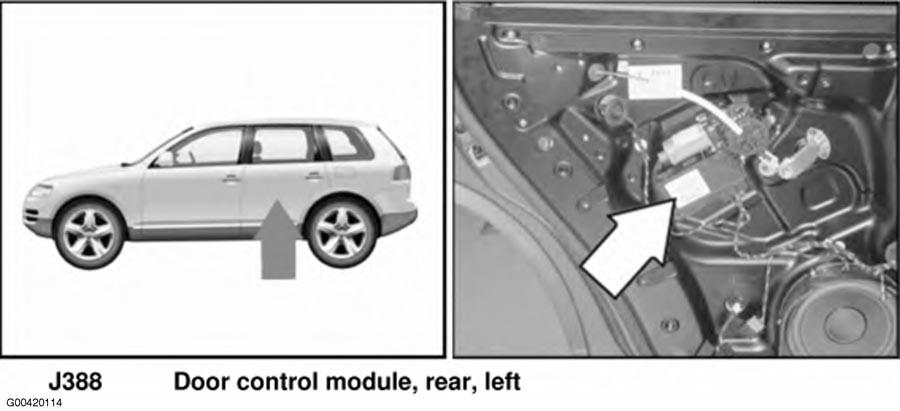

| Door Control Module (Left Rear) | In left rear door. See Figure . |

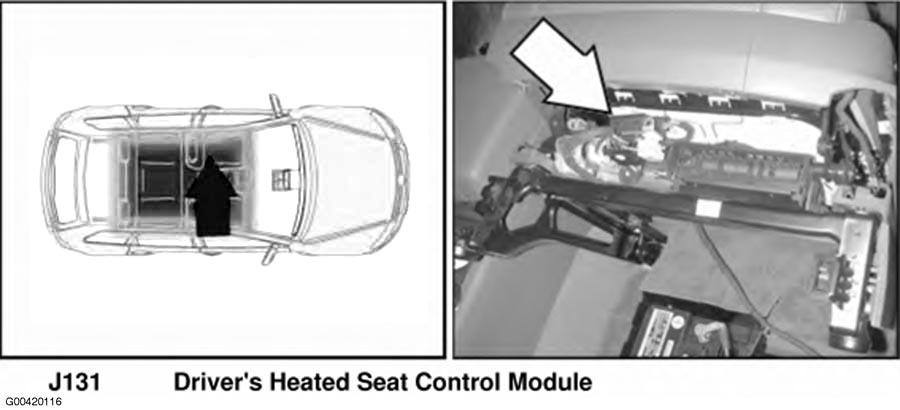

| Heated Seat Control Module (Driver's) | Below driver's seat. See Figure . |

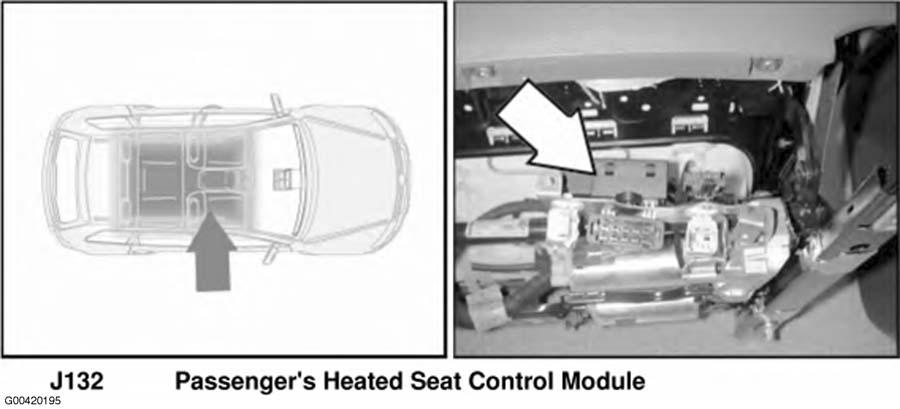

| Heated Seat Control Module (Passenger's) | Below passenger's seat. See Figure . |

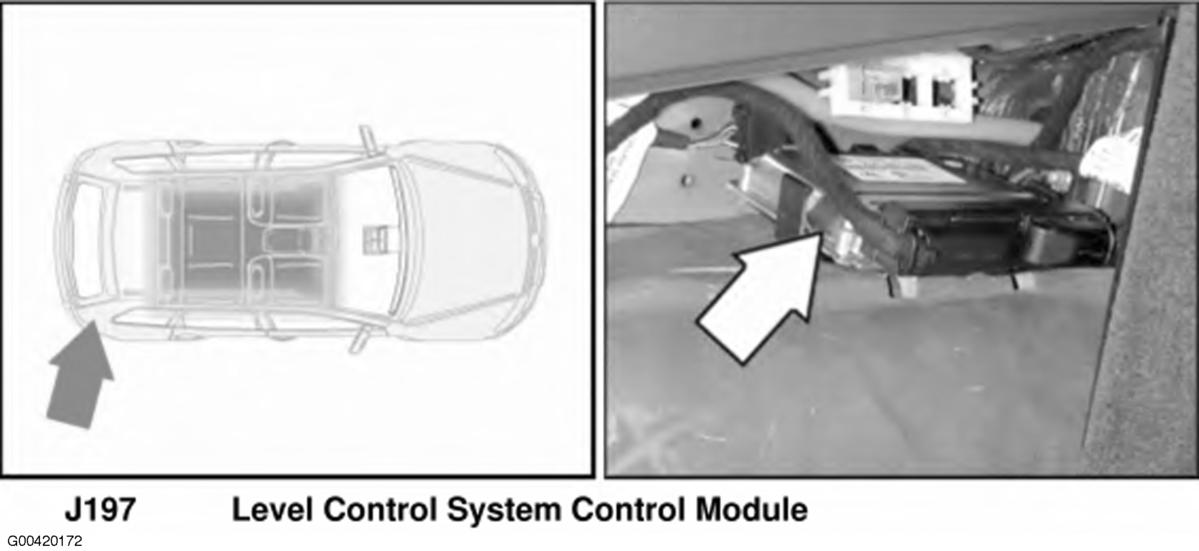

| Level Control System Control Module | Right rear of vehicle. See Figure . |

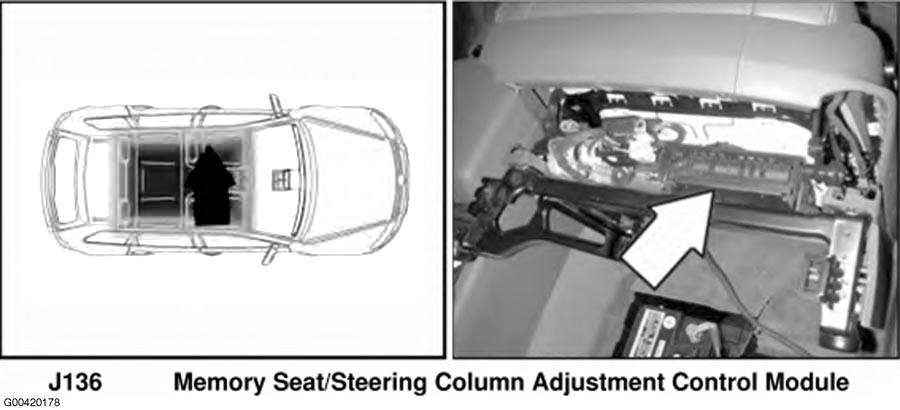

| Memory Seat/Steering Column Control Module | Under driver's seat. See Figure . |

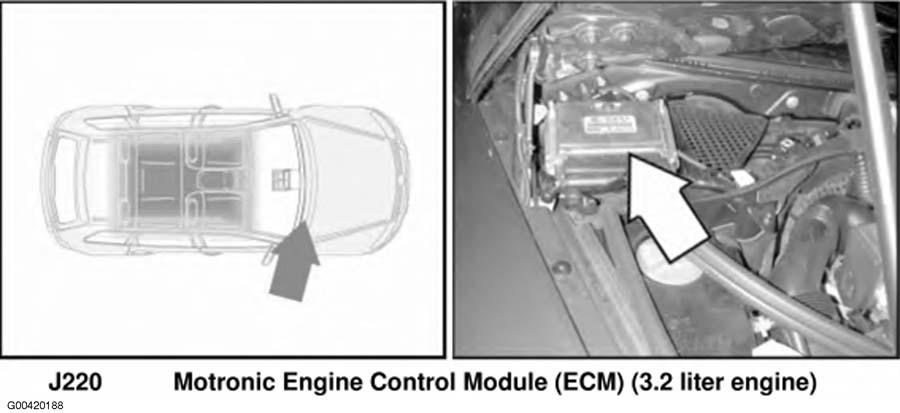

| Motronic Engine Control Module (ECM) (3.2L) | Right rear of engine compartment. See Figure . |

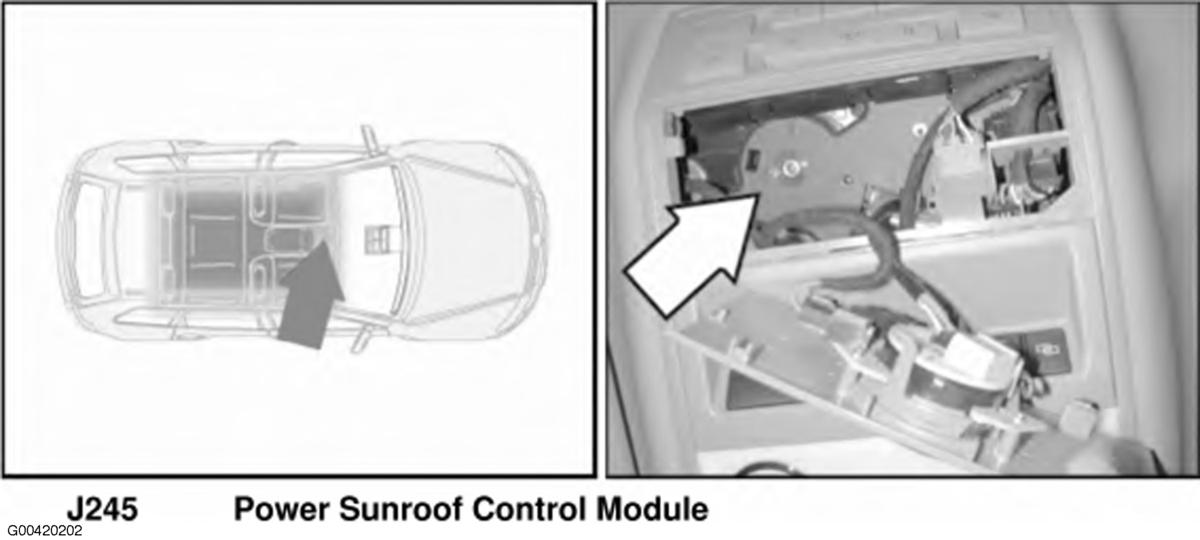

| Power Sunroof Control Module | Front center of roof. See Figure . |

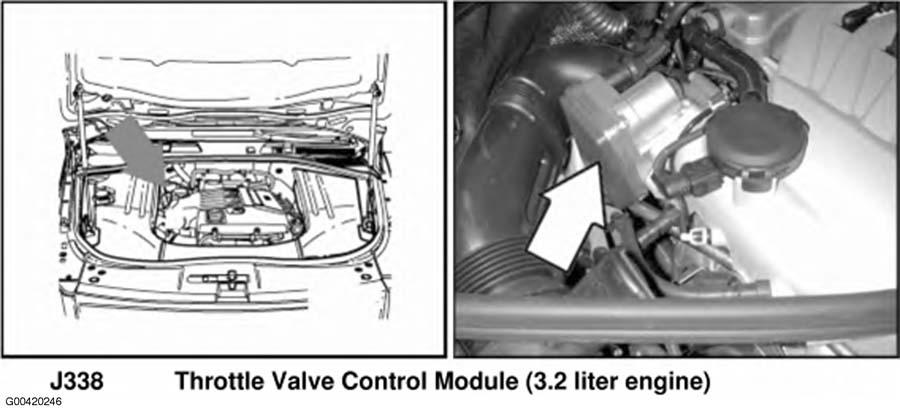

| Throttle Valve Control Module (3.2L) | On throttle body. See Figure . |

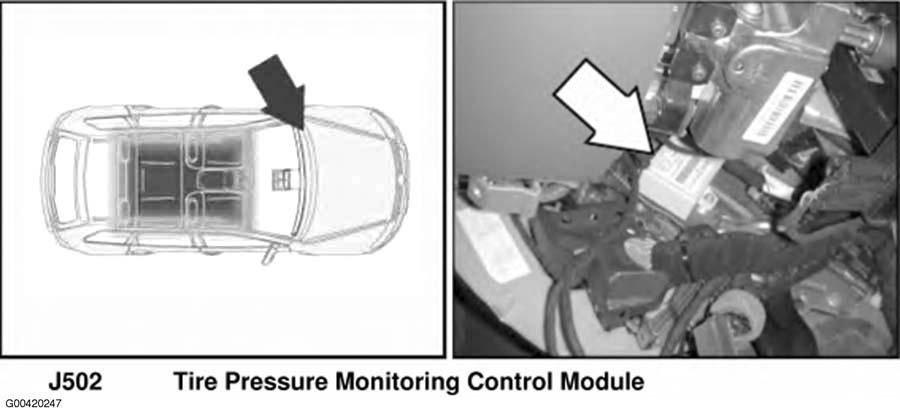

| Tire Pressure Monitoring Control Module | Under left side of dash. See Figure . |

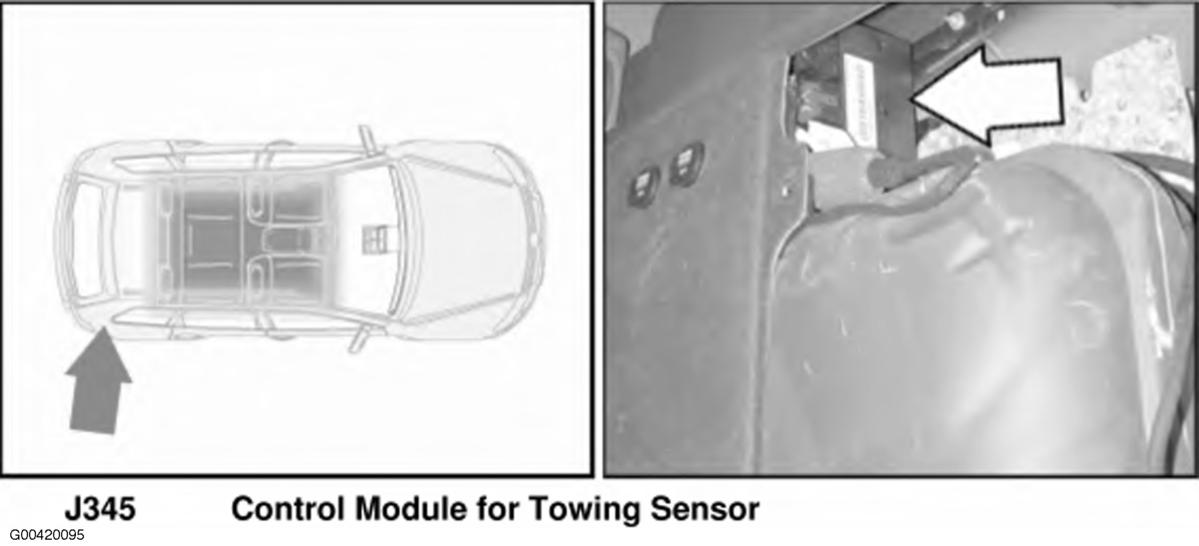

| Towing Sensor Control Module | Right side of cargo area. See Figure . |

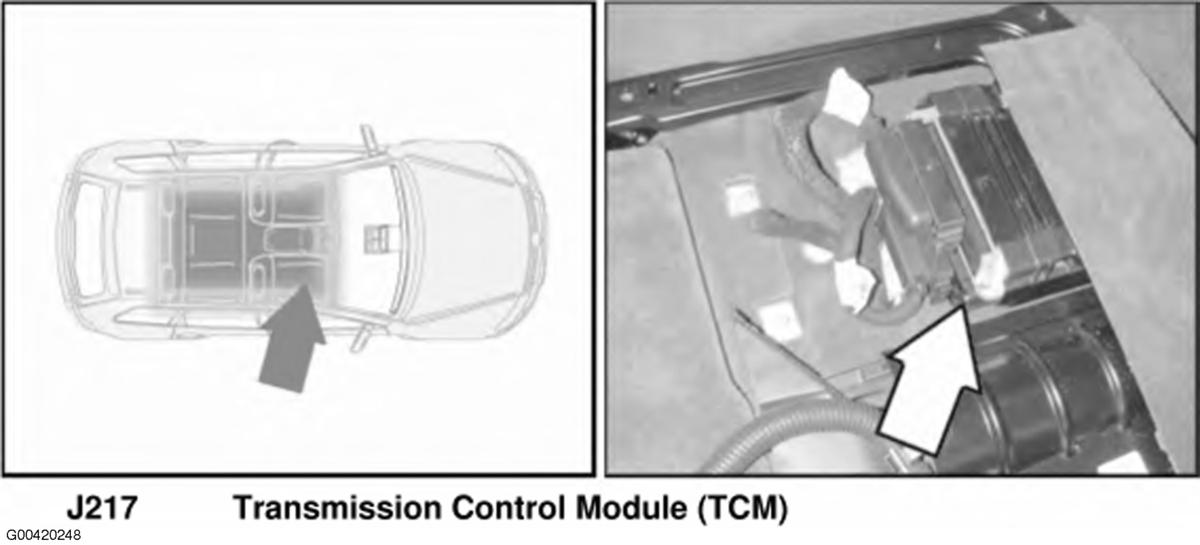

| Transmission Control Module | Under front passenger's seat. See Figure . |

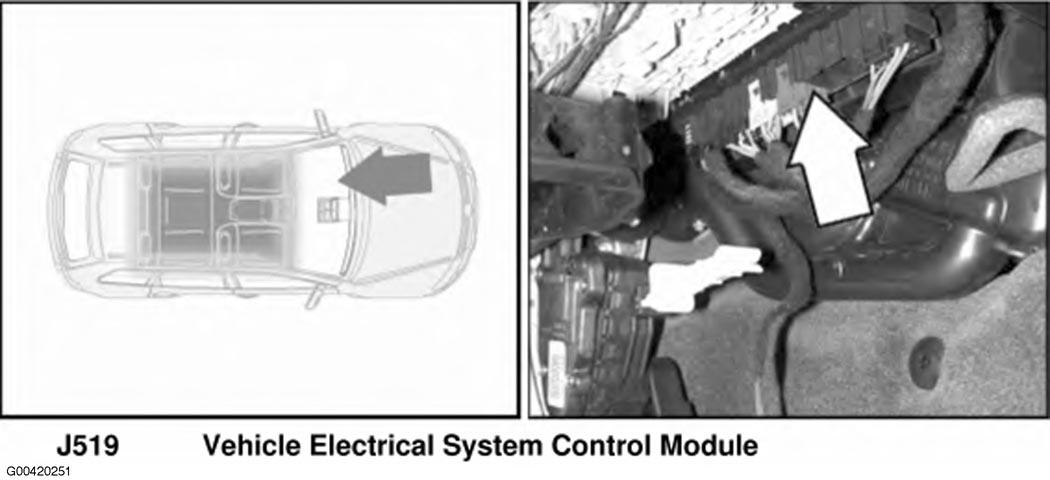

| Vehicle Electrical System Control Module | Under left side of dash. See Figure . |
