Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

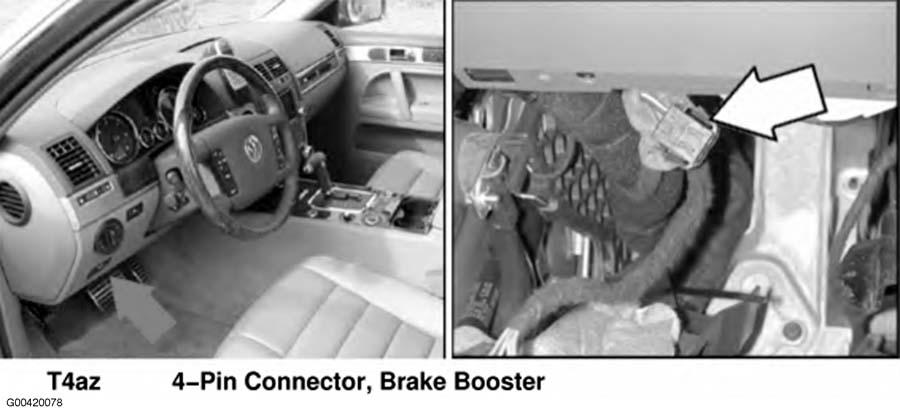

Fig 1: Below Left Side Of Dash

G00420078

Courtesy of VOLKSWAGEN UNITED STATES, INC.

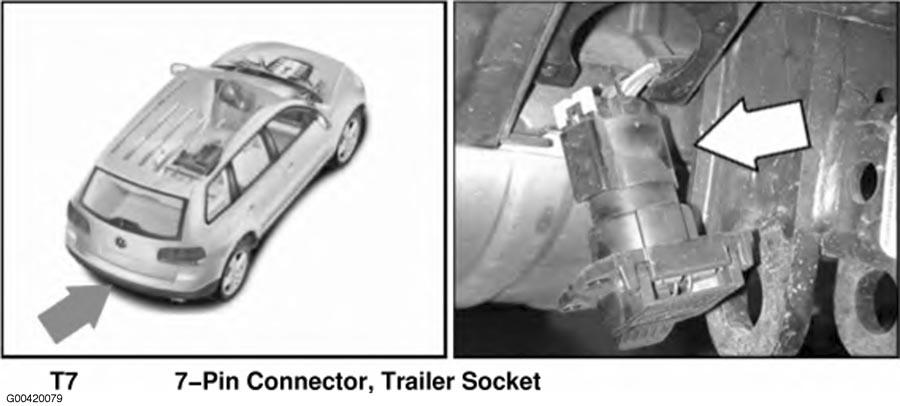

Fig 2: Below Center Of Rear Bumper

G00420079

Courtesy of VOLKSWAGEN UNITED STATES, INC.

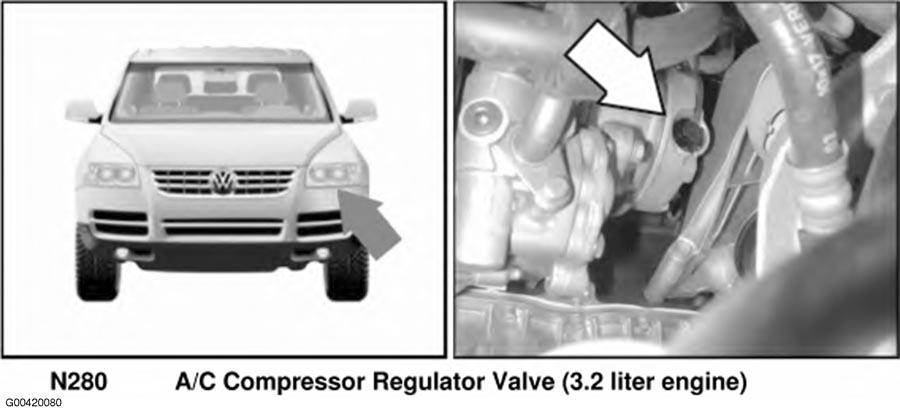

Fig 3: Right Side Of Engine Compartment

G00420080

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 4: Right Rear Of Engine Compartment

G00420081

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Below Left Side Of Dash

G00420082

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 6: Center Console

G00420083

Courtesy of VOLKSWAGEN UNITED STATES, INC.

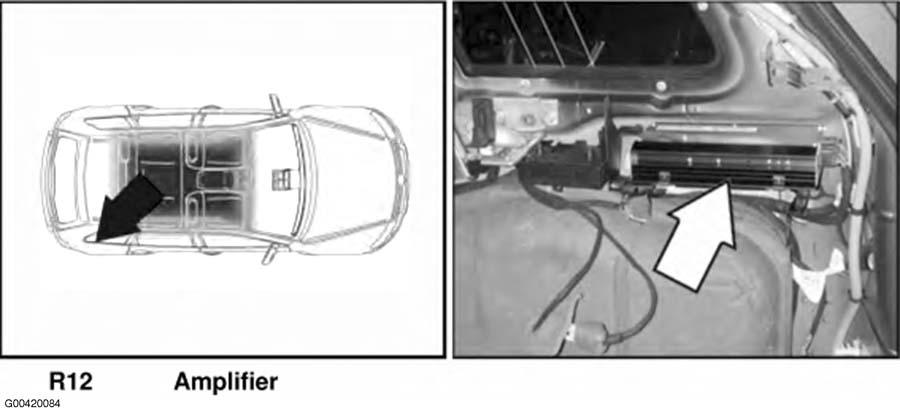

Fig 7: Right Side Of Cargo Area

G00420084

Courtesy of VOLKSWAGEN UNITED STATES, INC.

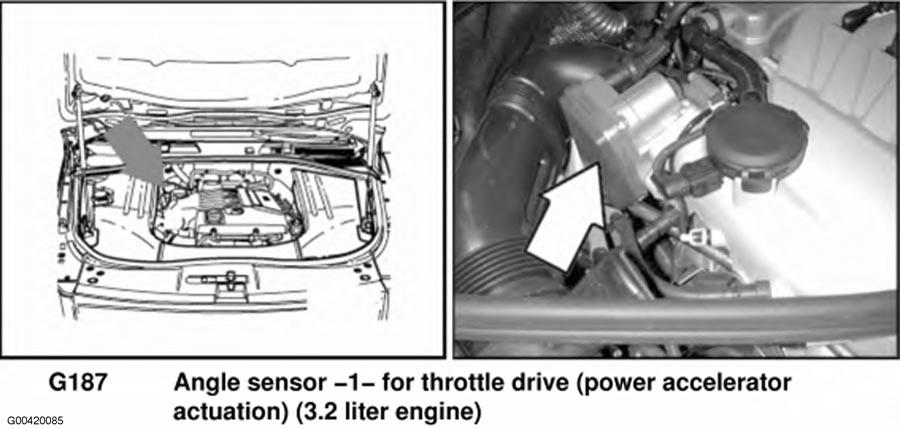

Fig 8: Right Side Of Engine Compartment

G00420085

Courtesy of VOLKSWAGEN UNITED STATES, INC.

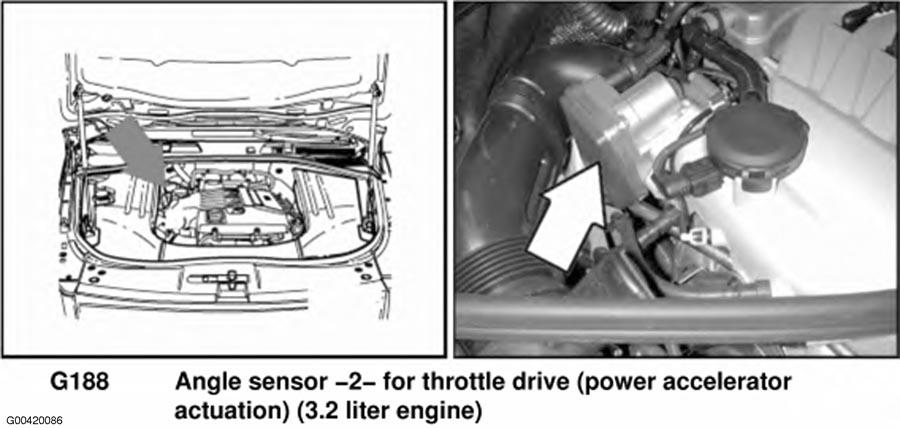

Fig 9: Right Side Of Engine Compartment

G00420086

Courtesy of VOLKSWAGEN UNITED STATES, INC.

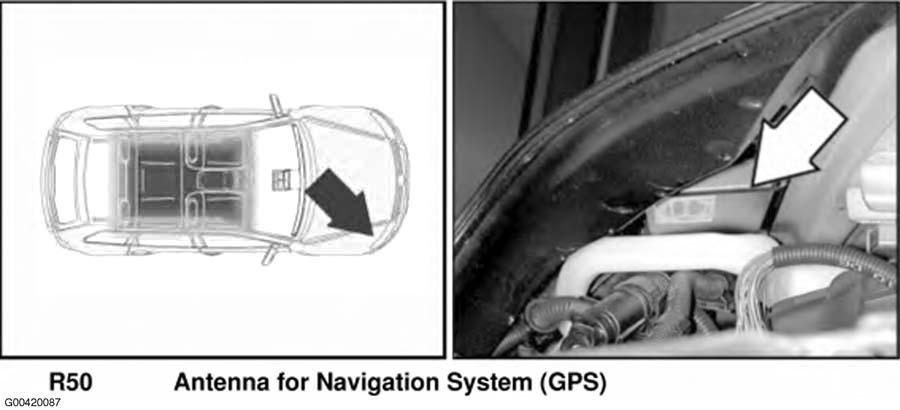

Fig 10: Right Front Of Engine Compartment

G00420087

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 11: Rear Of Vehicle

G00420088

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 12: Right Front Of Vehicle

G00420089

Courtesy of VOLKSWAGEN UNITED STATES, INC.

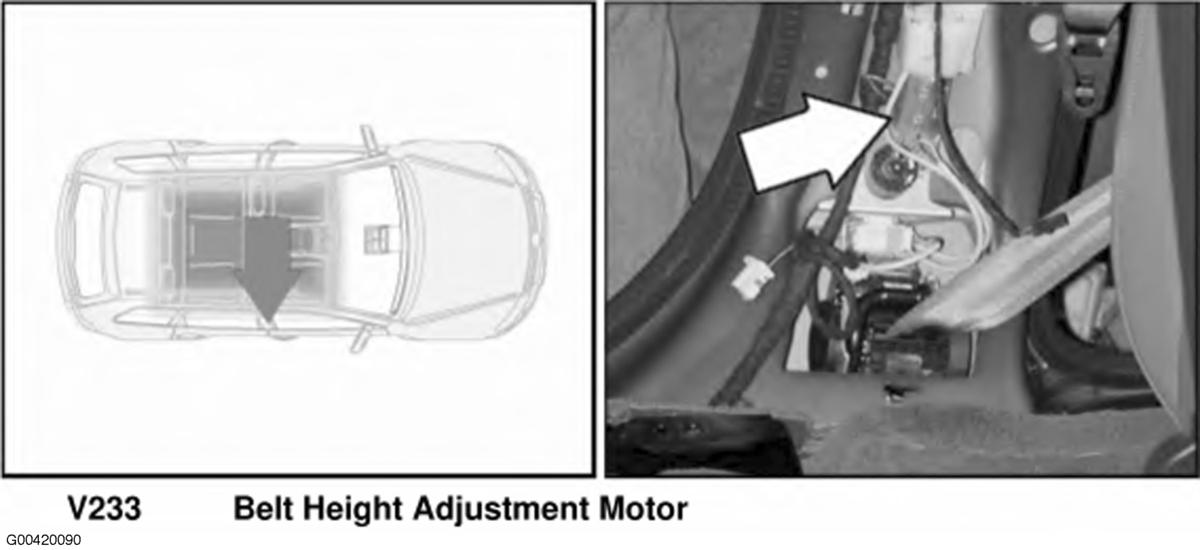

Fig 13: Right "B" Pillar

G00420090

Courtesy of VOLKSWAGEN UNITED STATES, INC.

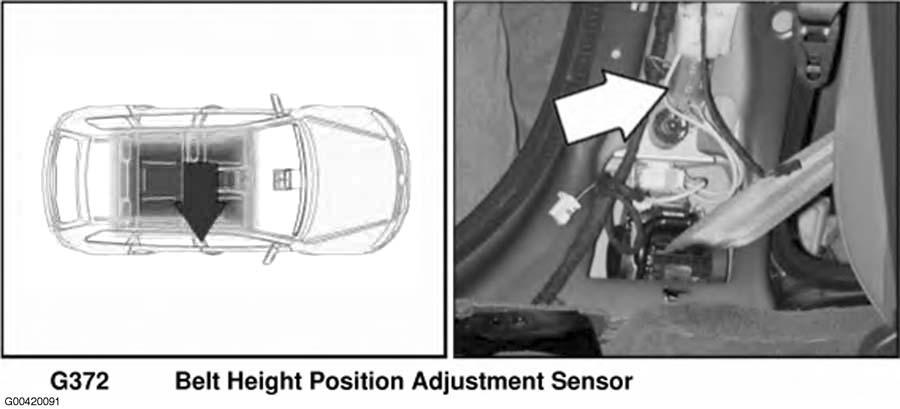

Fig 14: Right "B" Pillar

G00420091

Courtesy of VOLKSWAGEN UNITED STATES, INC.

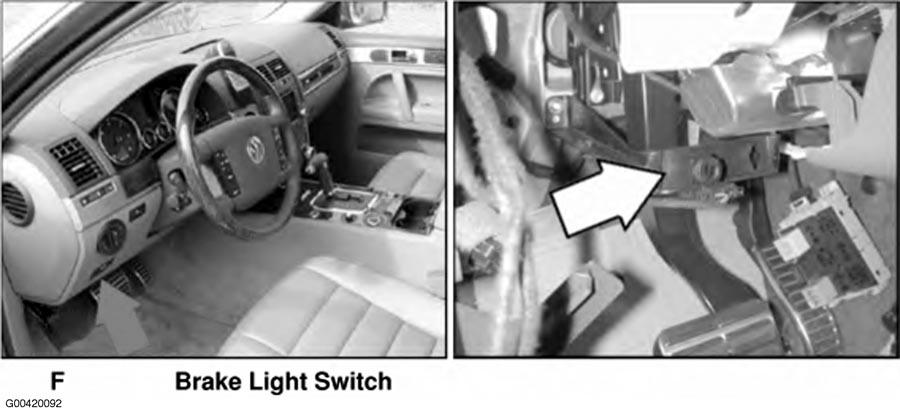

Fig 15: Below Left Side Of Dash

G00420092

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 16: Right Rear Of Vehicle

G00420093

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 17: Left Side Of Dash

G00420094

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 18: Right Rear Of Vehicle

G00420095

Courtesy of VOLKSWAGEN UNITED STATES, INC.

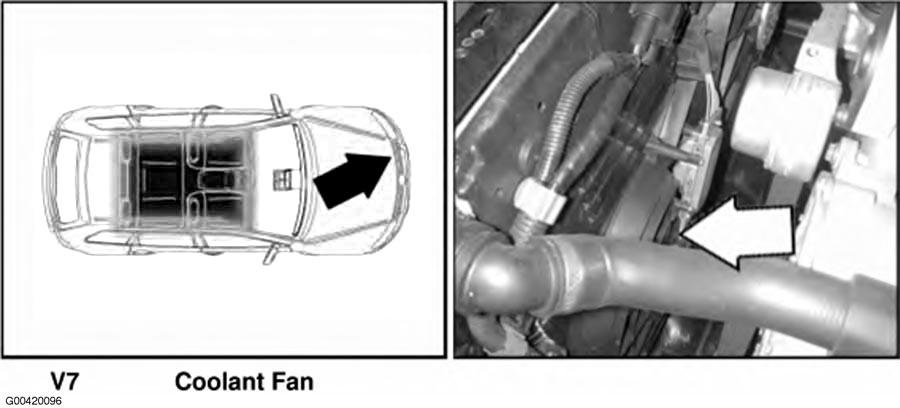

Fig 19: Front Of Vehicle

G00420096

Courtesy of VOLKSWAGEN UNITED STATES, INC.

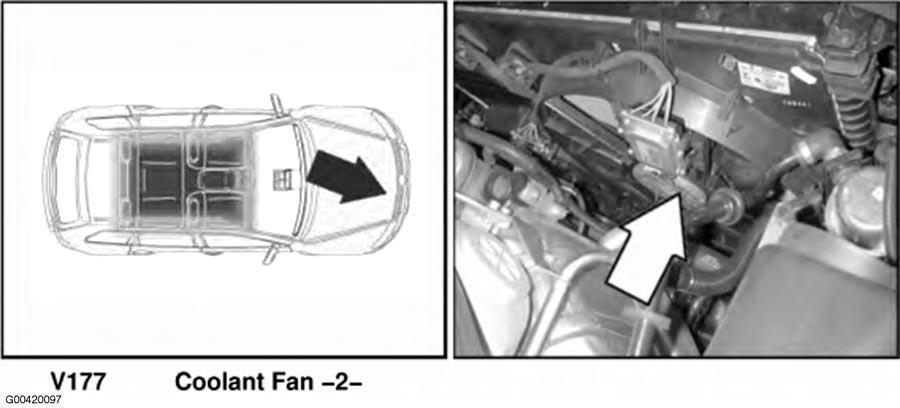

Fig 20: Front Of Vehicle

G00420097

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 21: Front Of Vehicle

G00420098

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 22: Front Of Vehicle

G00420099

Courtesy of VOLKSWAGEN UNITED STATES, INC.

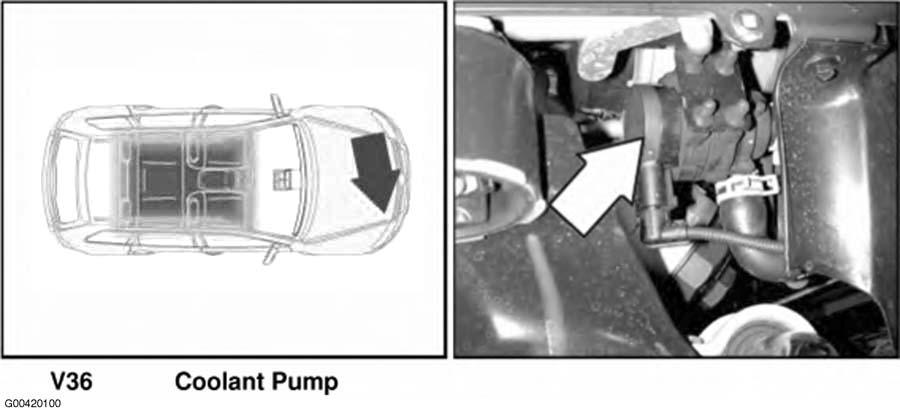

Fig 23: Front Of Vehicle

G00420100

Courtesy of VOLKSWAGEN UNITED STATES, INC.

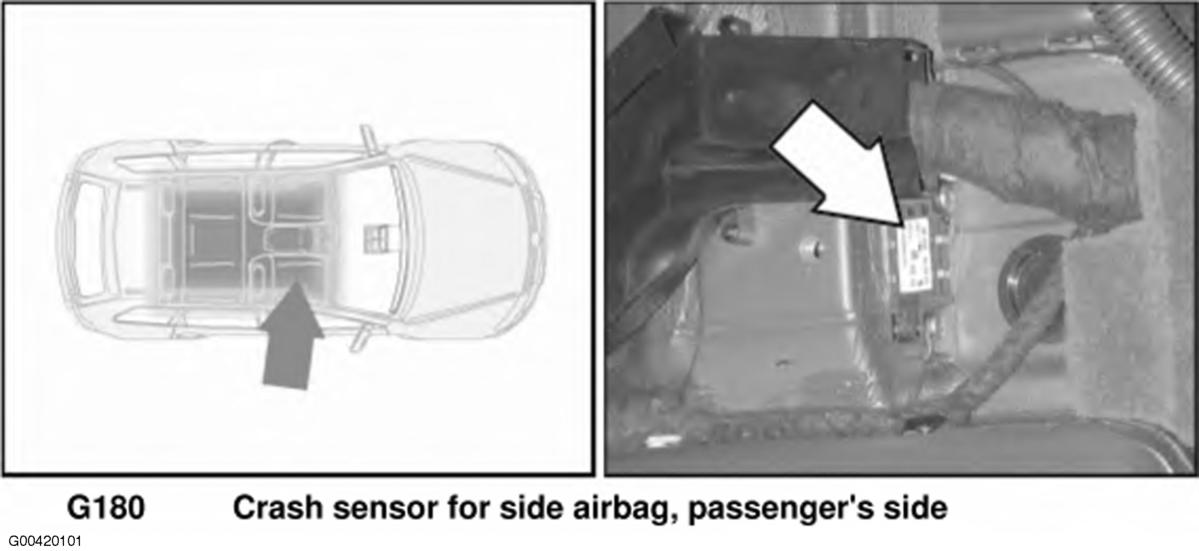

Fig 24: Right Front Floor

G00420101

Courtesy of VOLKSWAGEN UNITED STATES, INC.

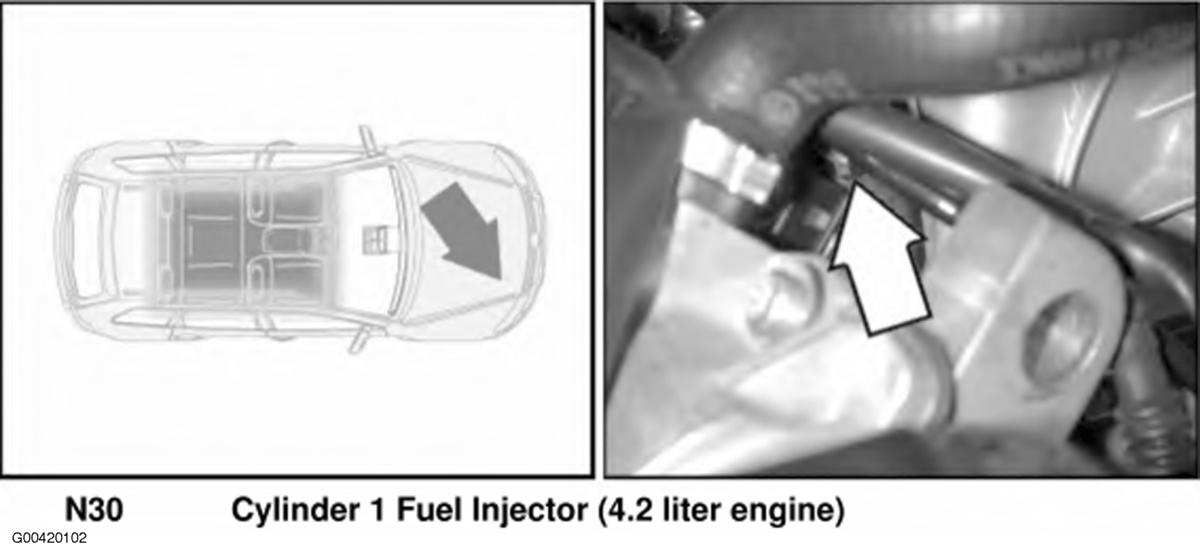

Fig 25: Right Front Of Engine

G00420102

Courtesy of VOLKSWAGEN UNITED STATES, INC.

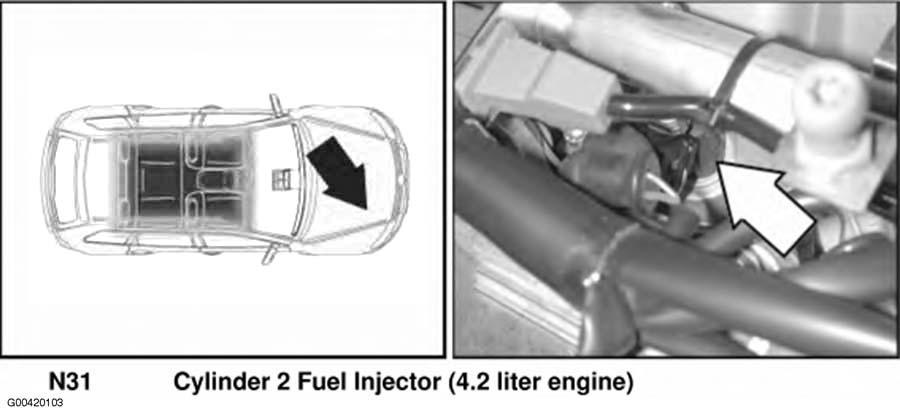

Fig 26: Right Side Of Engine

G00420103

Courtesy of VOLKSWAGEN UNITED STATES, INC.

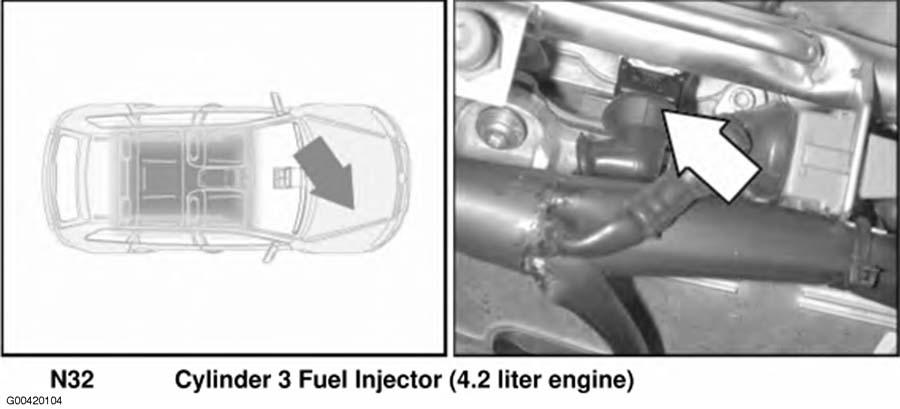

Fig 27: Right Side Of Engine

G00420104

Courtesy of VOLKSWAGEN UNITED STATES, INC.

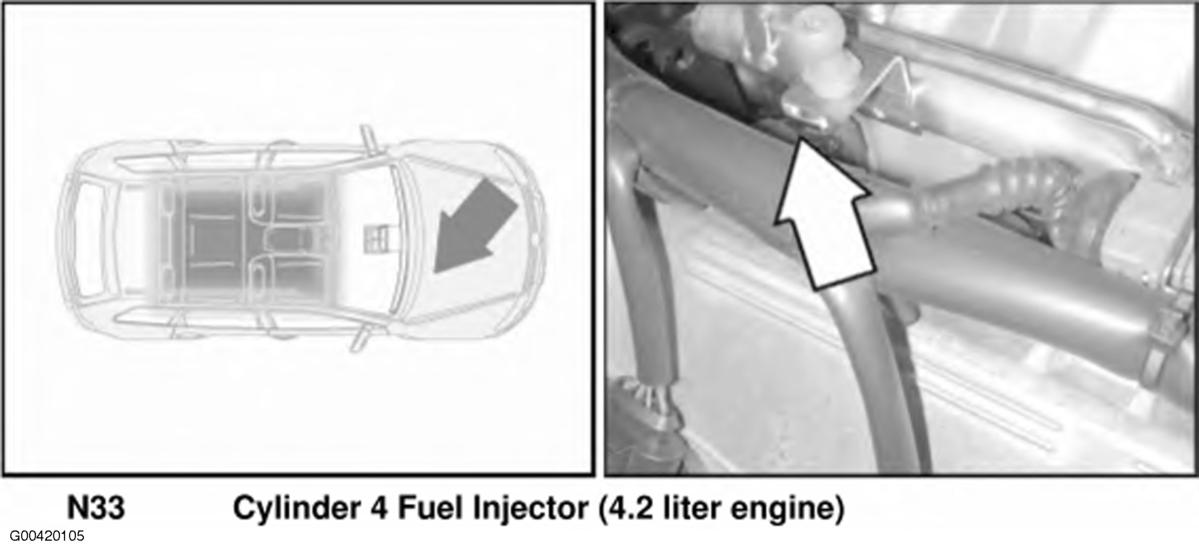

Fig 28: Right Side Of Engine

G00420105

Courtesy of VOLKSWAGEN UNITED STATES, INC.

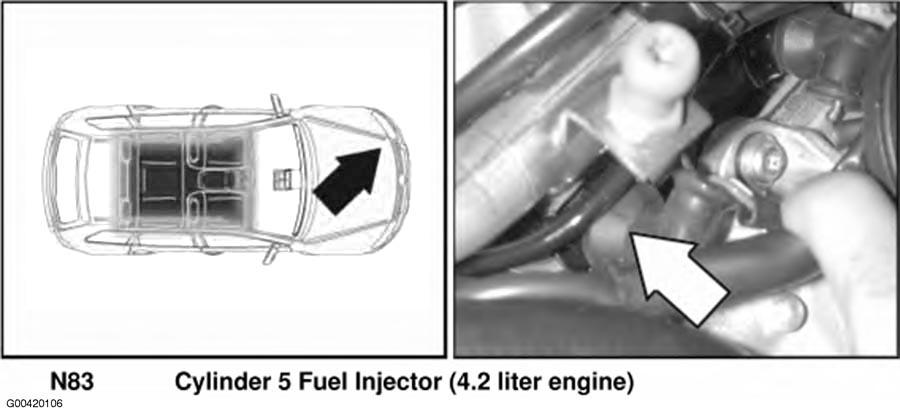

Fig 29: Left Side Of Engine

G00420106

Courtesy of VOLKSWAGEN UNITED STATES, INC.

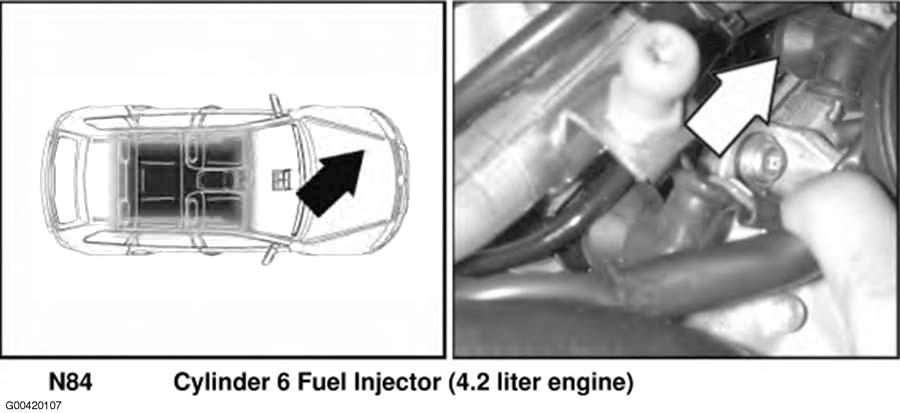

Fig 30: Left Side Of Engine

G00420107

Courtesy of VOLKSWAGEN UNITED STATES, INC.

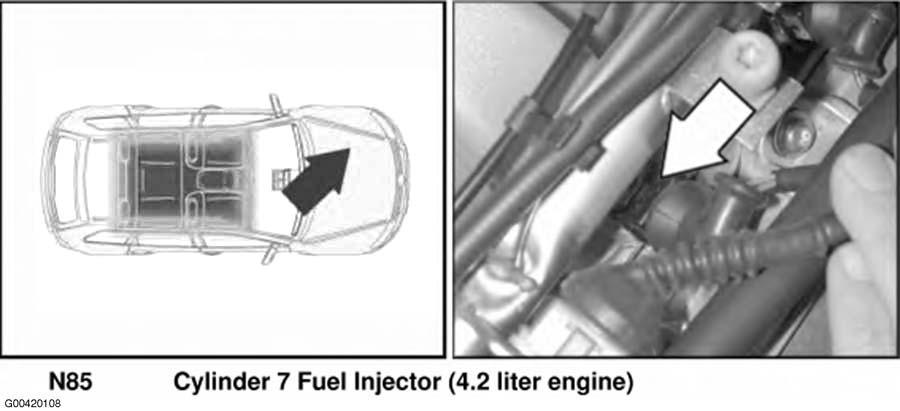

Fig 31: Left Side Of Engine

G00420108

Courtesy of VOLKSWAGEN UNITED STATES, INC.

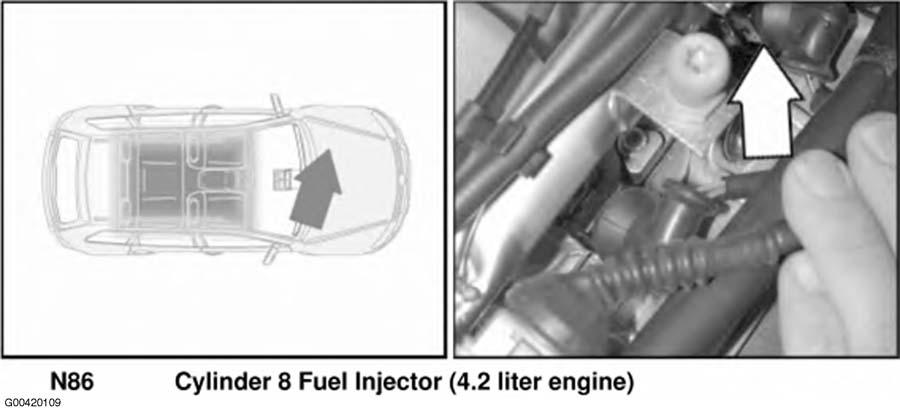

Fig 32: Left Side Of Engine

G00420109

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 33: Under Passenger's Seat

G00420110

Courtesy of VOLKSWAGEN UNITED STATES, INC.

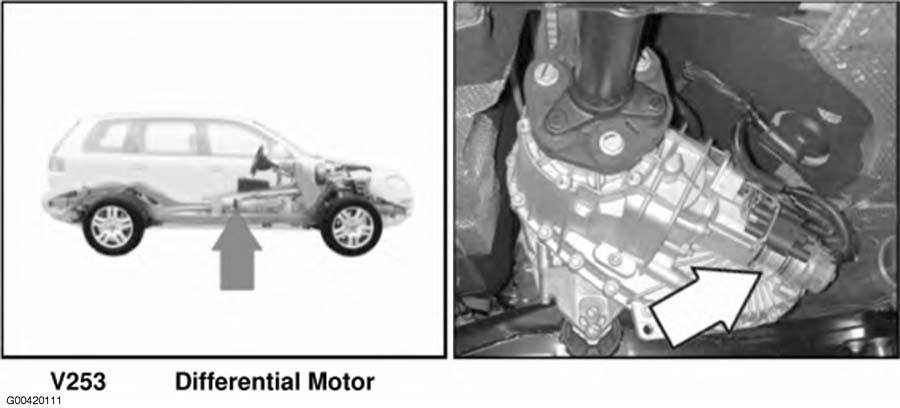

Fig 34: Under Center Of Vehicle

G00420111

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 35: Driver's Door

G00420113

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 36: Left Rear Door

G00420114

Courtesy of VOLKSWAGEN UNITED STATES, INC.

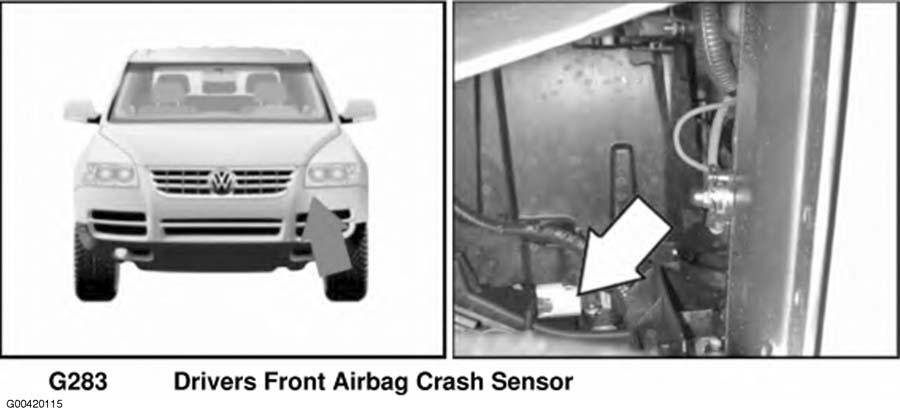

Fig 37: Front Of Vehicle

G00420115

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 38: Driver's Seat

G00420116

Courtesy of VOLKSWAGEN UNITED STATES, INC.

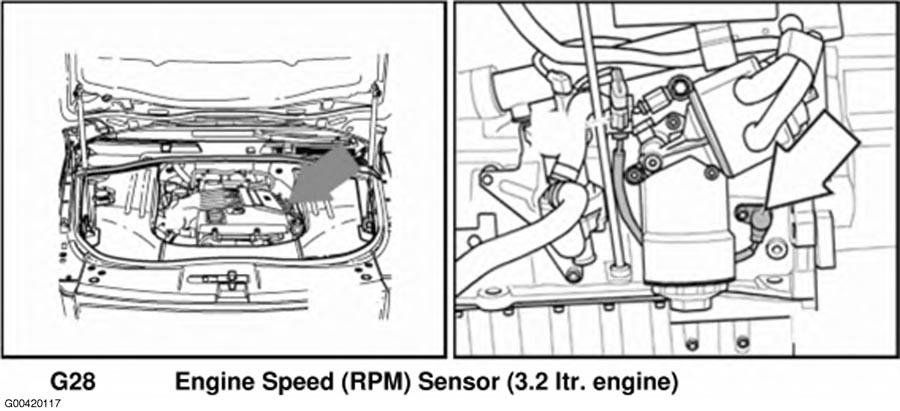

Fig 39: Left Side Of Engine

G00420117

Courtesy of VOLKSWAGEN UNITED STATES, INC.

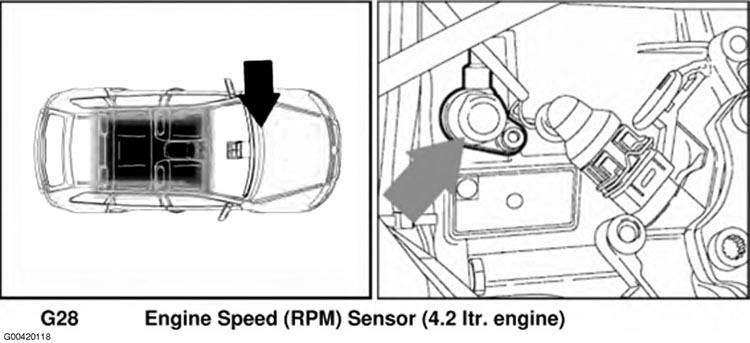

Fig 40: Rear Of Engine Compartment

G00420118

Courtesy of VOLKSWAGEN UNITED STATES, INC.

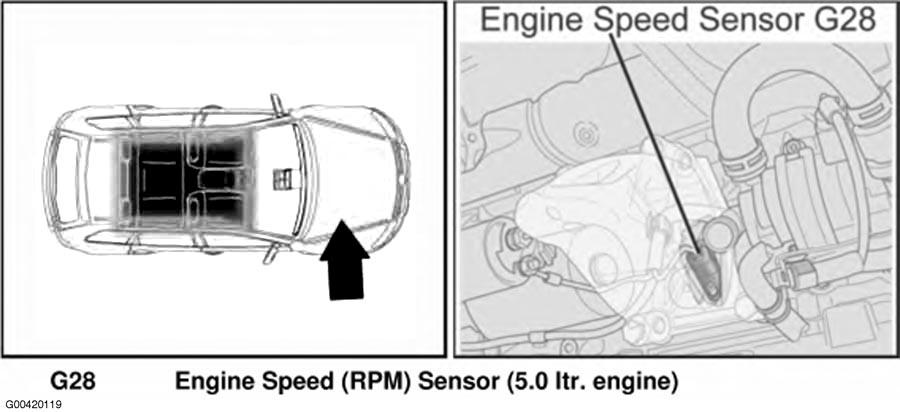

Fig 41: Right Side Of Engine Compartment

G00420119

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 42: Center Console

G00420120

Courtesy of VOLKSWAGEN UNITED STATES, INC.

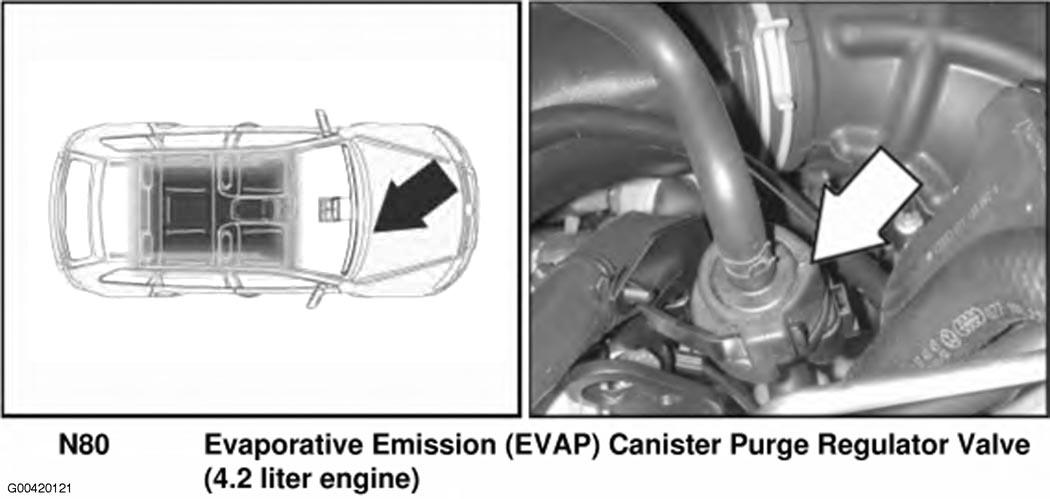

Fig 43: Rear Of Engine Compartment

G00420121

Courtesy of VOLKSWAGEN UNITED STATES, INC.

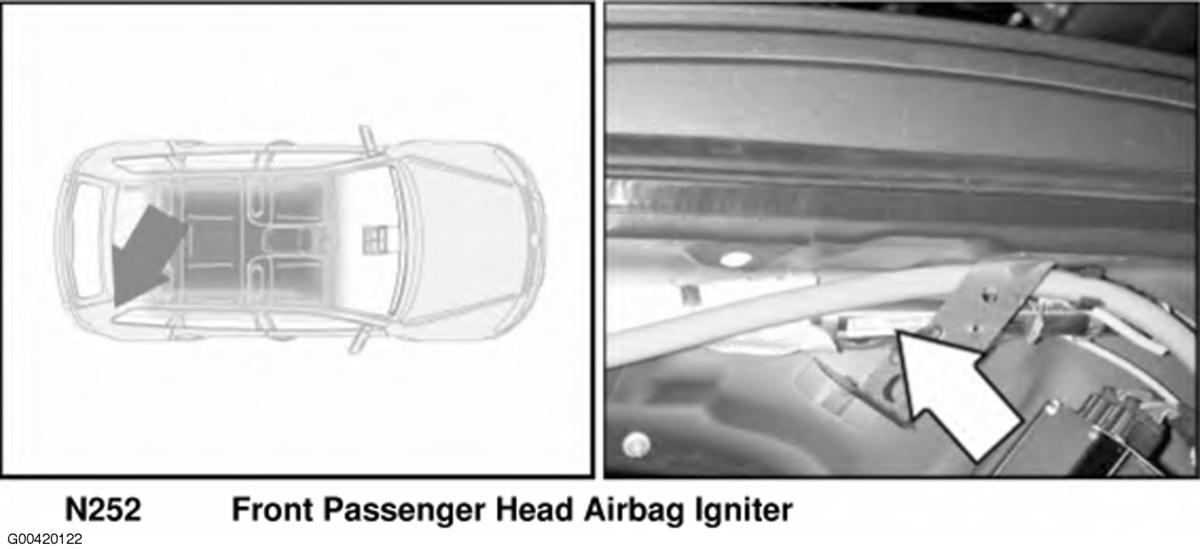

Fig 44: Right Rear Of Vehicle

G00420122

Courtesy of VOLKSWAGEN UNITED STATES, INC.

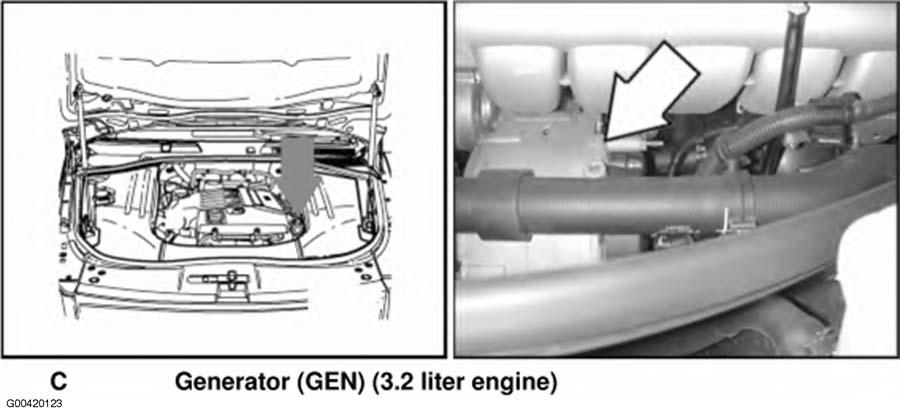

Fig 45: Engine Compartment

G00420123

Courtesy of VOLKSWAGEN UNITED STATES, INC.

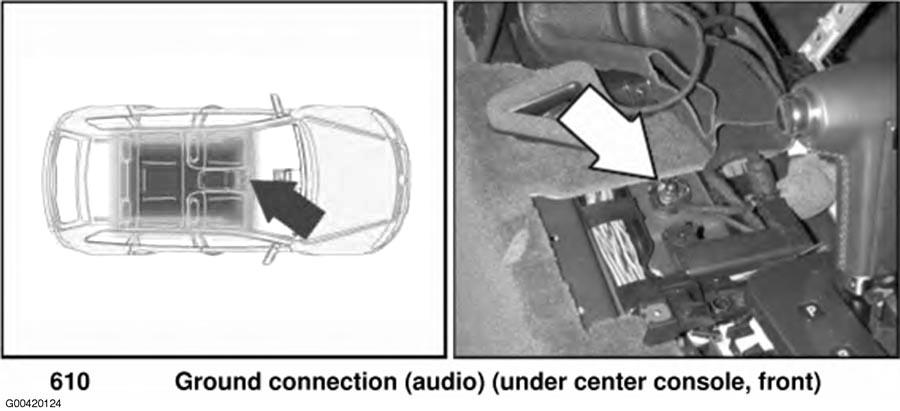

Fig 46: Center Console

G00420124

Courtesy of VOLKSWAGEN UNITED STATES, INC.

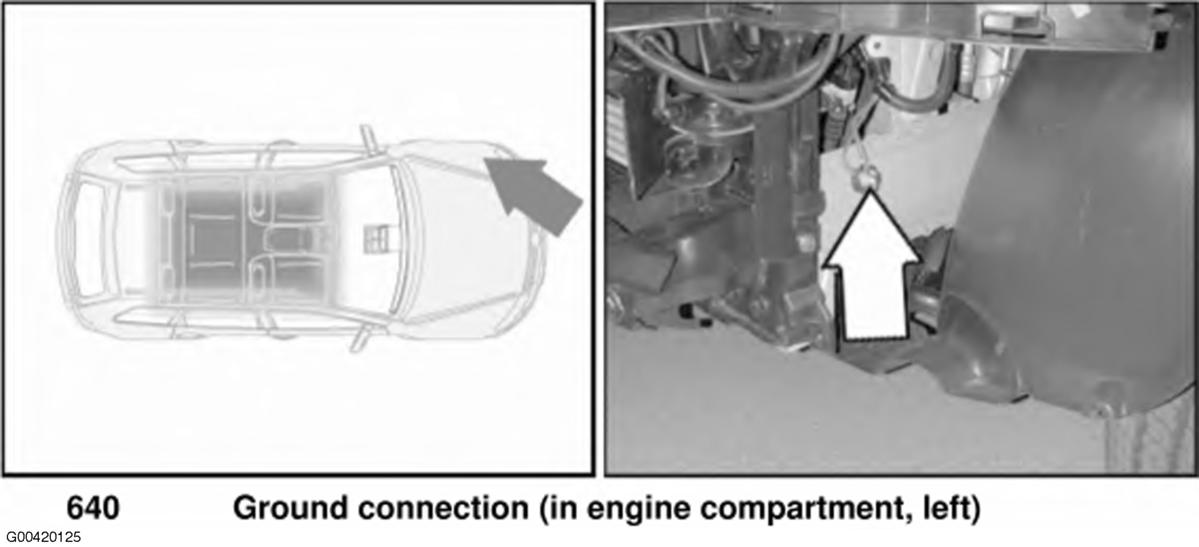

Fig 47: Left Side Of Engine Compartment

G00420125

Courtesy of VOLKSWAGEN UNITED STATES, INC.

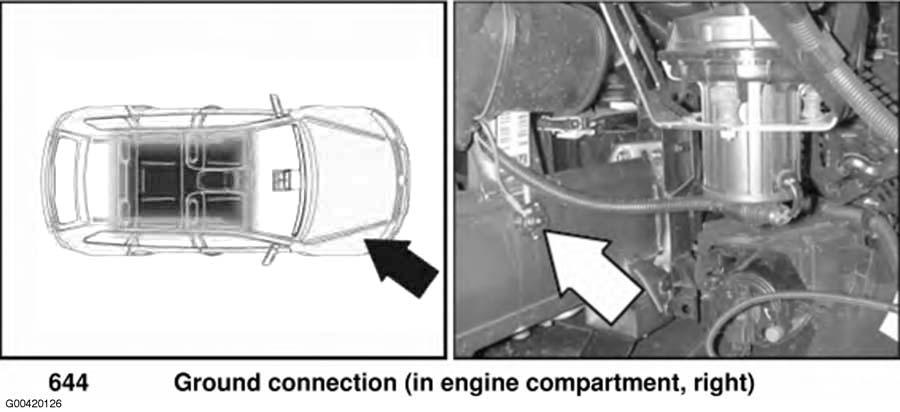

Fig 48: Right Side Of Engine Compartment

G00420126

Courtesy of VOLKSWAGEN UNITED STATES, INC.

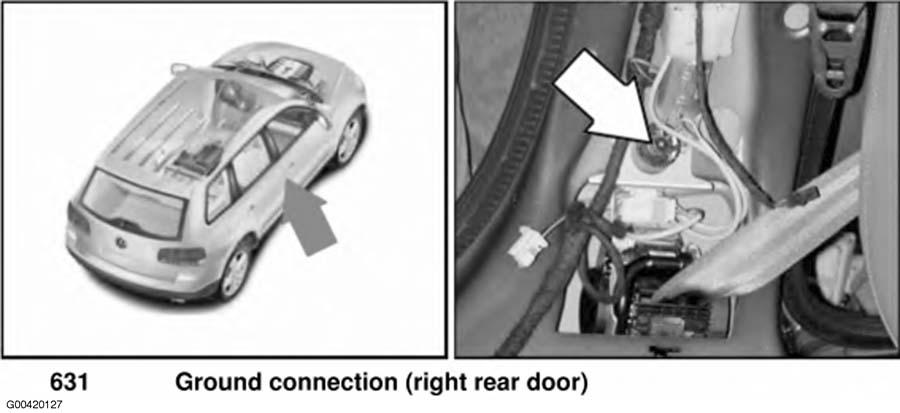

Fig 49: Right "B" Pillar

G00420127

Courtesy of VOLKSWAGEN UNITED STATES, INC.

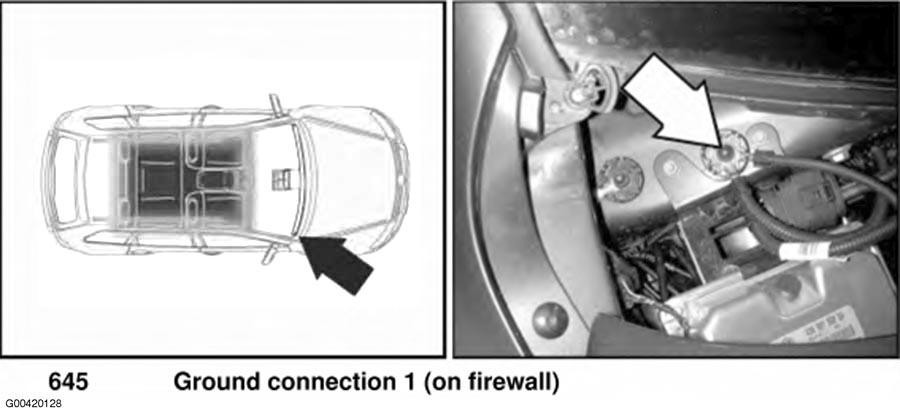

Fig 50: Right Rear Of Engine Compartment

G00420128

Courtesy of VOLKSWAGEN UNITED STATES, INC.

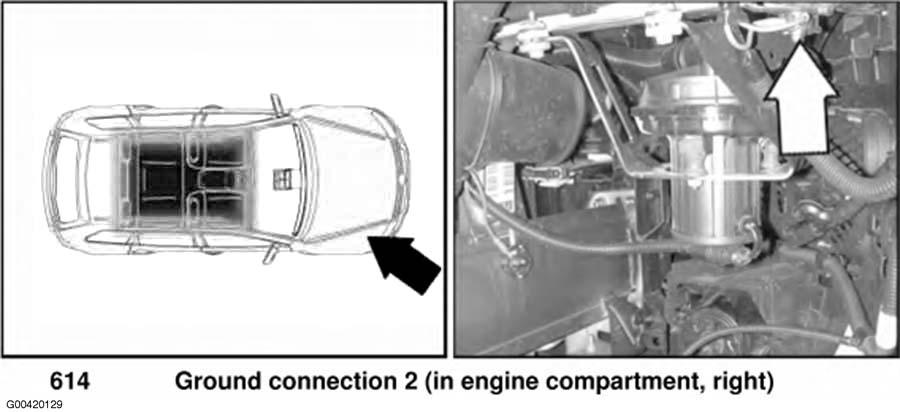

Fig 51: Right Side Of Engine Compartment

G00420129

Courtesy of VOLKSWAGEN UNITED STATES, INC.

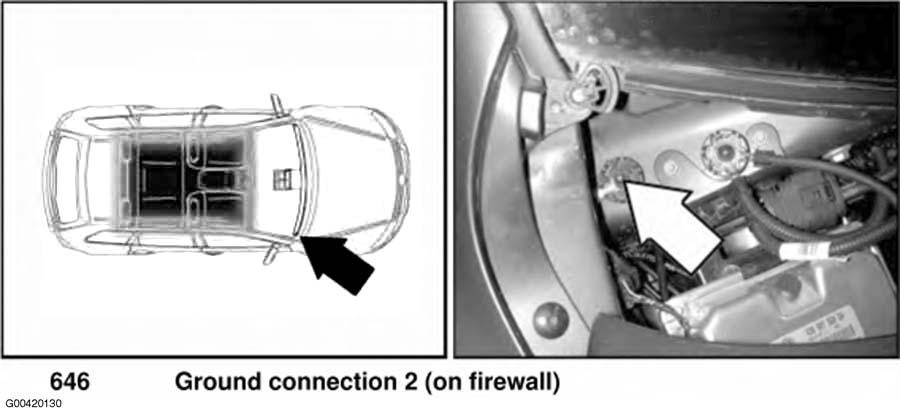

Fig 52: Right Rear Of Engine Compartment

G00420130

Courtesy of VOLKSWAGEN UNITED STATES, INC.

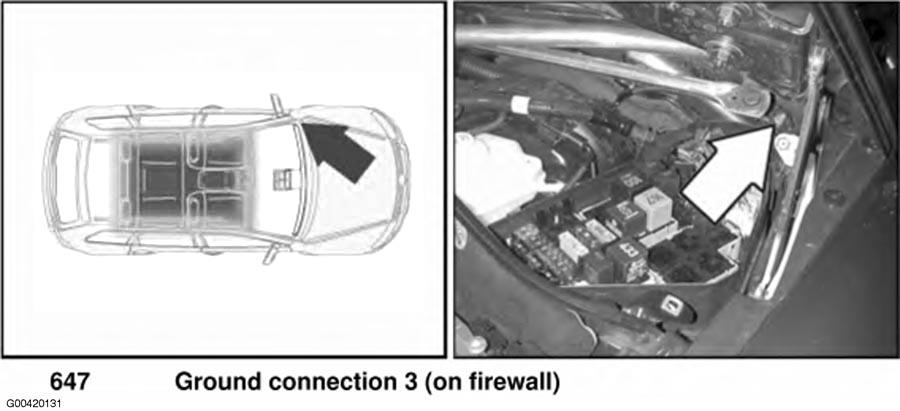

Fig 53: Left Rear Of Engine Compartment

G00420131

Courtesy of VOLKSWAGEN UNITED STATES, INC.

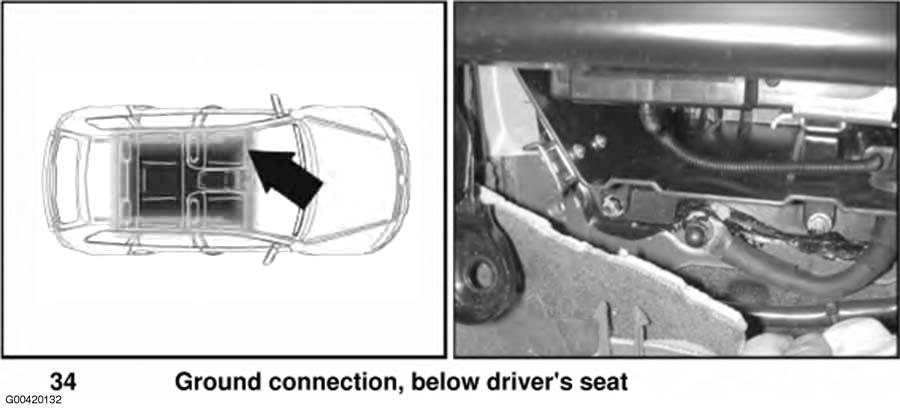

Fig 54: Left Front Floor

G00420132

Courtesy of VOLKSWAGEN UNITED STATES, INC.

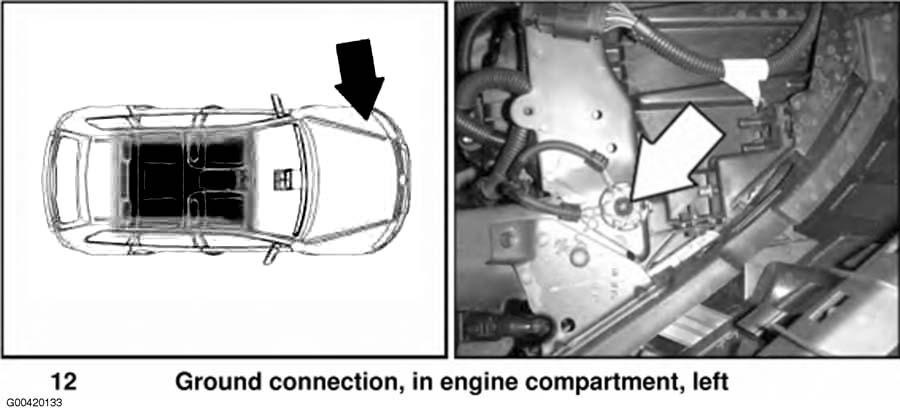

Fig 55: Left Side Of Engine Compartment

G00420133

Courtesy of VOLKSWAGEN UNITED STATES, INC.

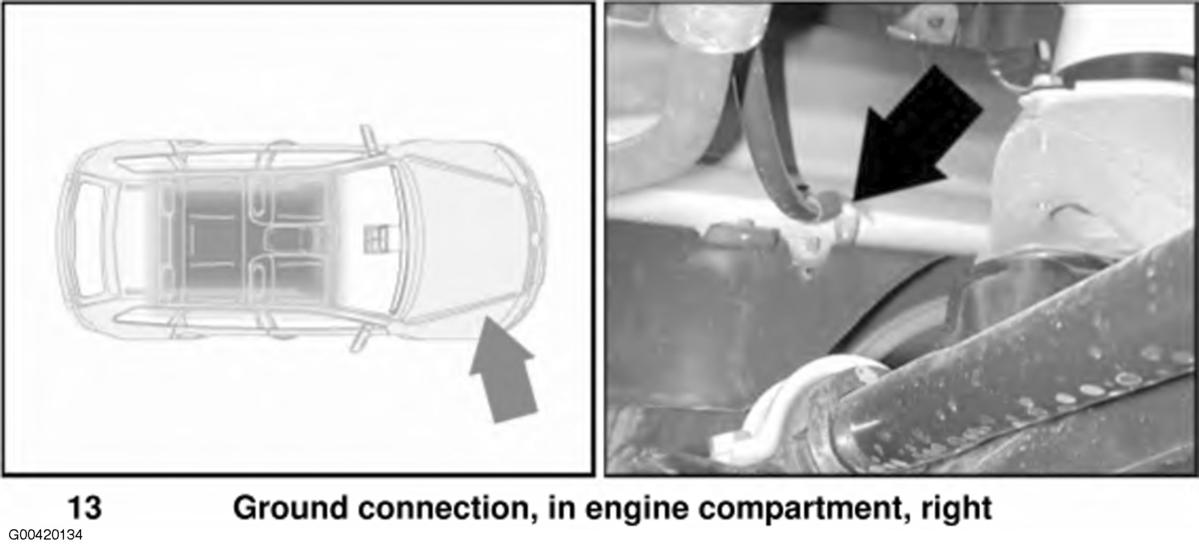

Fig 56: Right Side Of Engine Compartment

G00420134

Courtesy of VOLKSWAGEN UNITED STATES, INC.

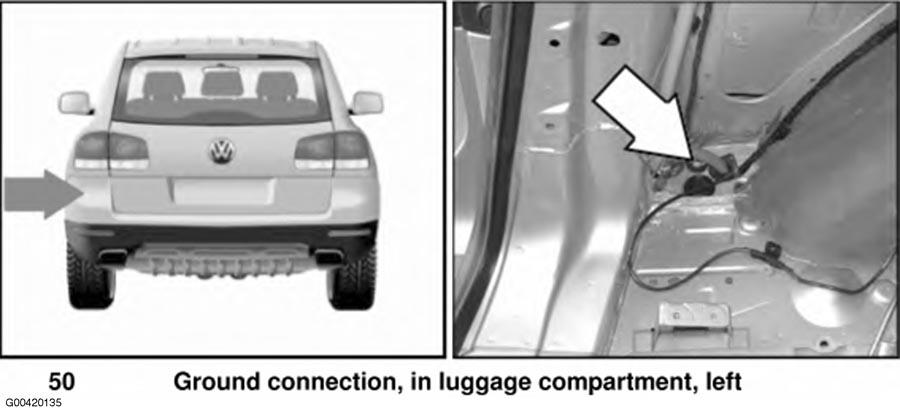

Fig 57: Rear Of Vehicle

G00420135

Courtesy of VOLKSWAGEN UNITED STATES, INC.

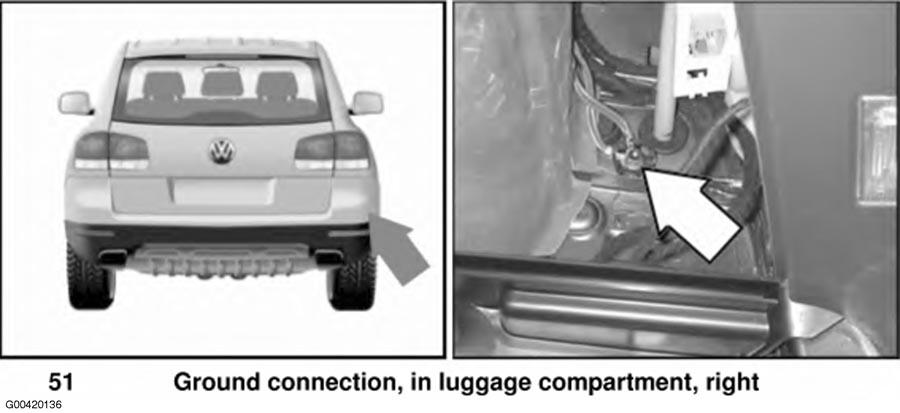

Fig 58: Rear Of Vehicle

G00420136

Courtesy of VOLKSWAGEN UNITED STATES, INC.

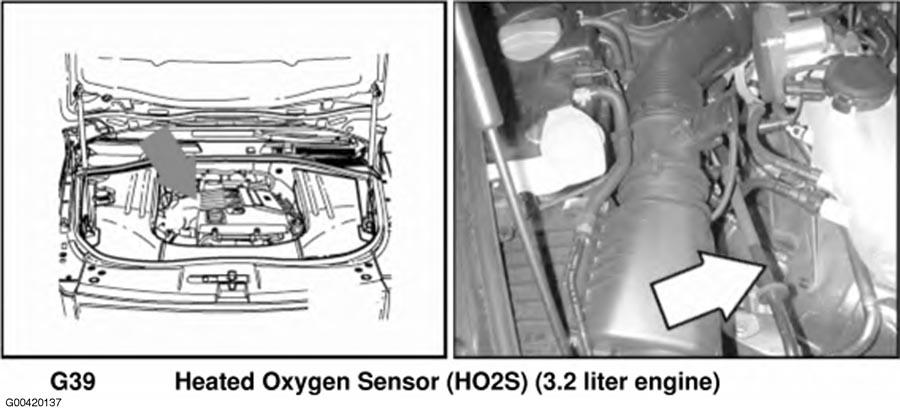

Fig 59: Right Side Of Engine (3.2L)

G00420137

Courtesy of VOLKSWAGEN UNITED STATES, INC.

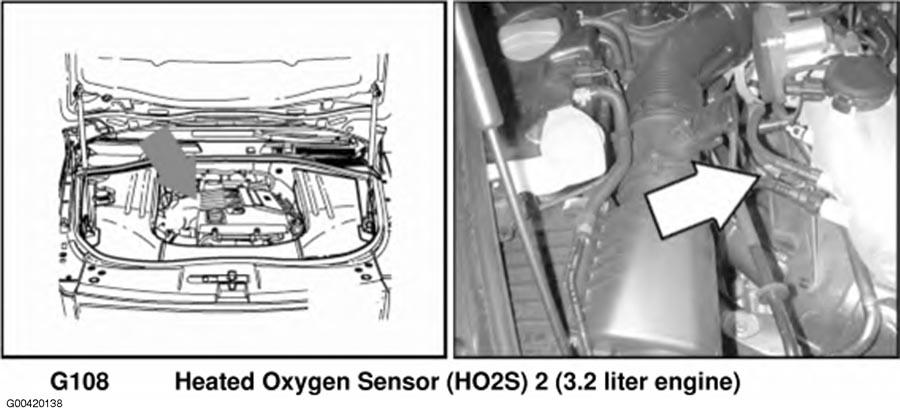

Fig 60: Right Side Of Engine (3.2L)

G00420138

Courtesy of VOLKSWAGEN UNITED STATES, INC.

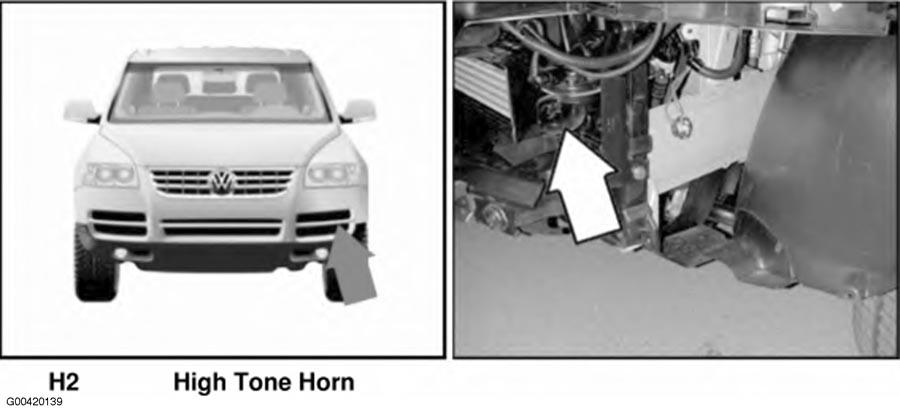

Fig 61: Left Front Of Vehicle

G00420139

Courtesy of VOLKSWAGEN UNITED STATES, INC.

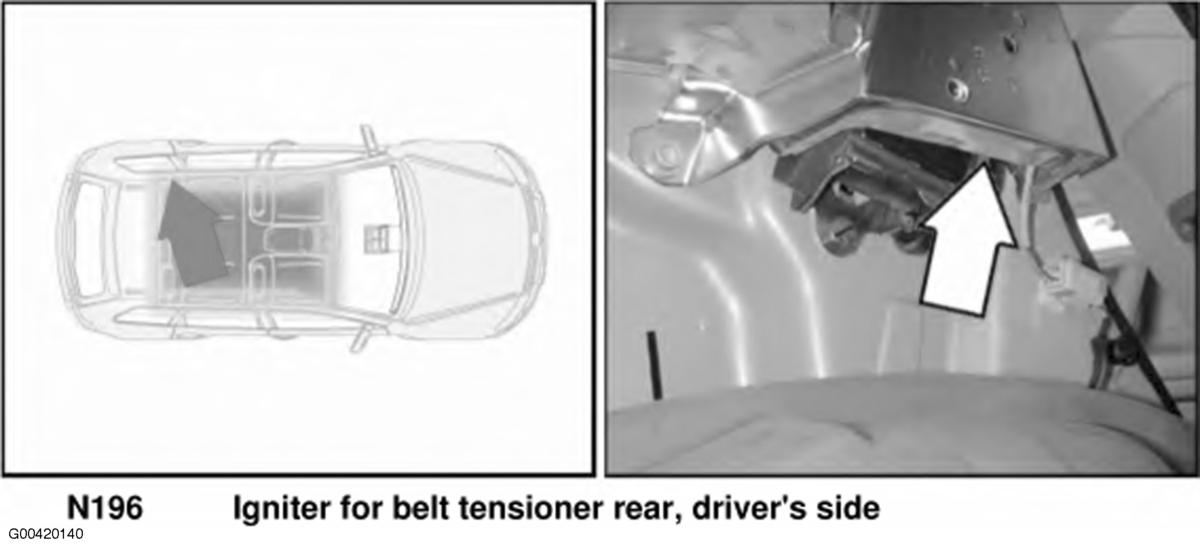

Fig 62: Left "C" Pillar

G00420140

Courtesy of VOLKSWAGEN UNITED STATES, INC.

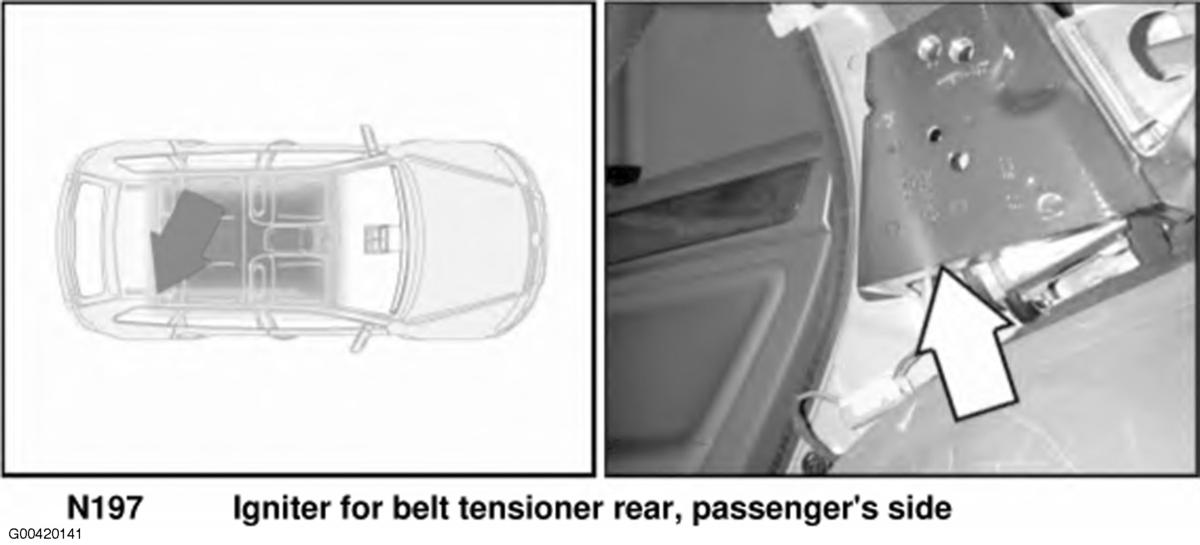

Fig 63: Right "C" Pillar

G00420141

Courtesy of VOLKSWAGEN UNITED STATES, INC.

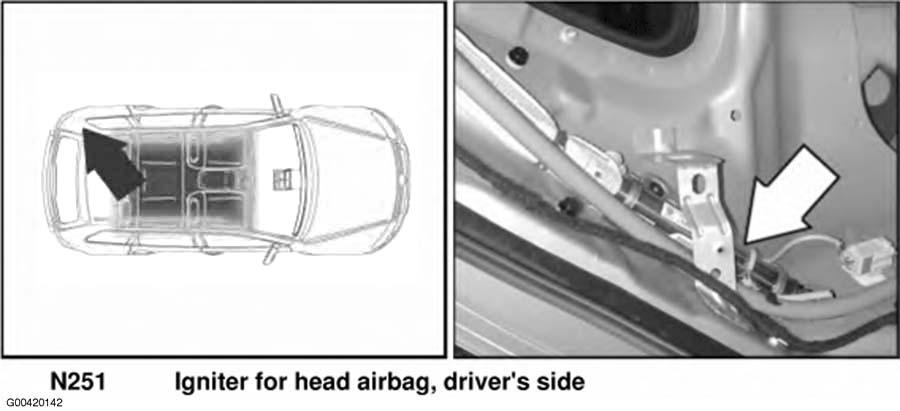

Fig 64: Left Side Of Luggage Compartment

G00420142

Courtesy of VOLKSWAGEN UNITED STATES, INC.

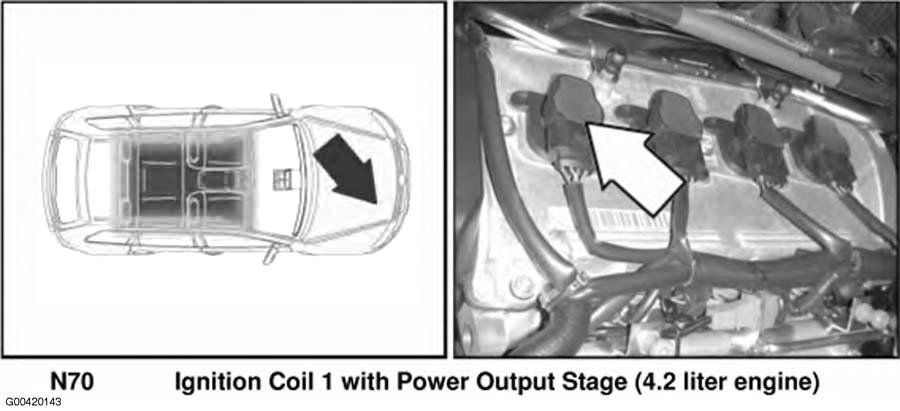

Fig 65: Right Side Of Engine

G00420143

Courtesy of VOLKSWAGEN UNITED STATES, INC.

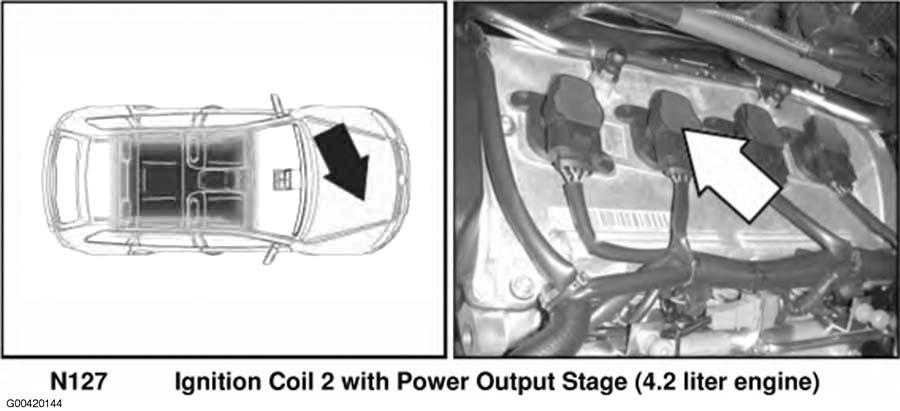

Fig 66: Right Side Of Engine

G00420144

Courtesy of VOLKSWAGEN UNITED STATES, INC.

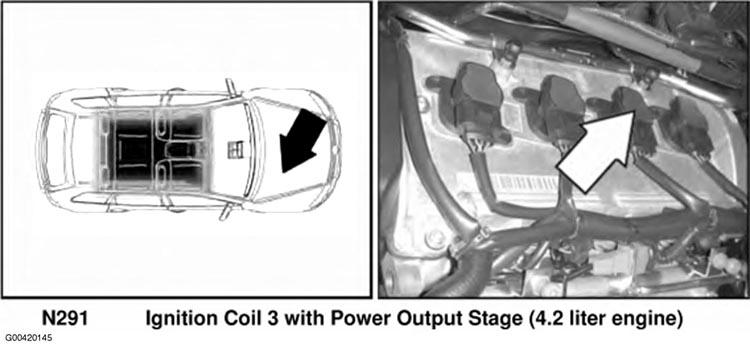

Fig 67: Right Side Of Engine

G00420145

Courtesy of VOLKSWAGEN UNITED STATES, INC.

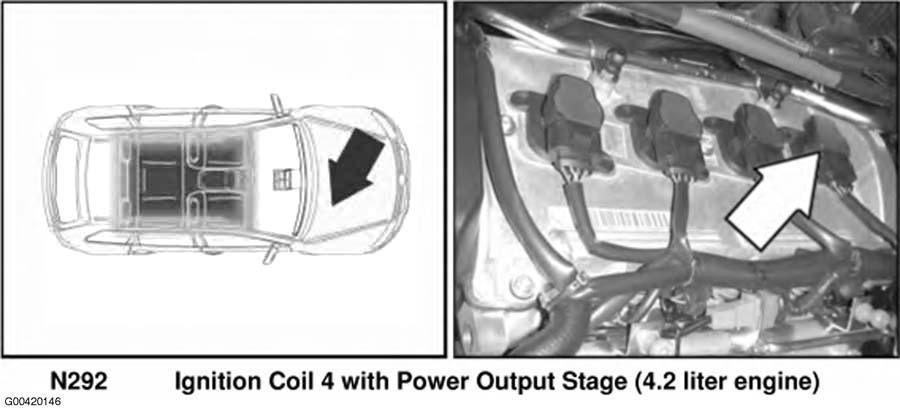

Fig 68: Right Side Of Engine

G00420146

Courtesy of VOLKSWAGEN UNITED STATES, INC.

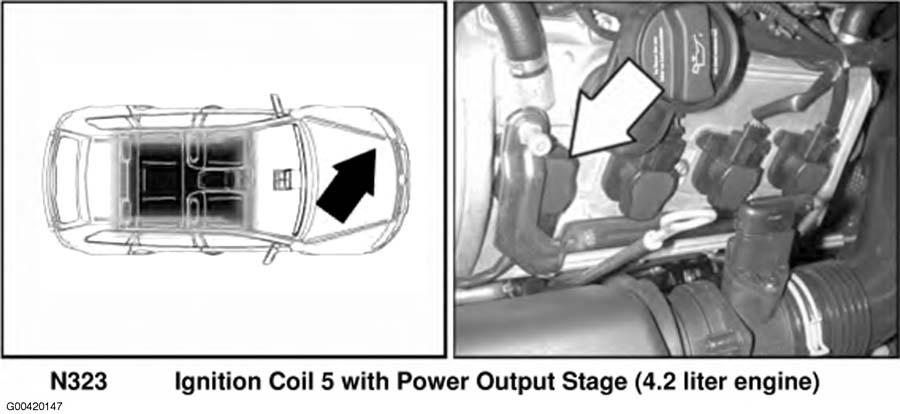

Fig 69: Left Side Of Engine

G00420147

Courtesy of VOLKSWAGEN UNITED STATES, INC.

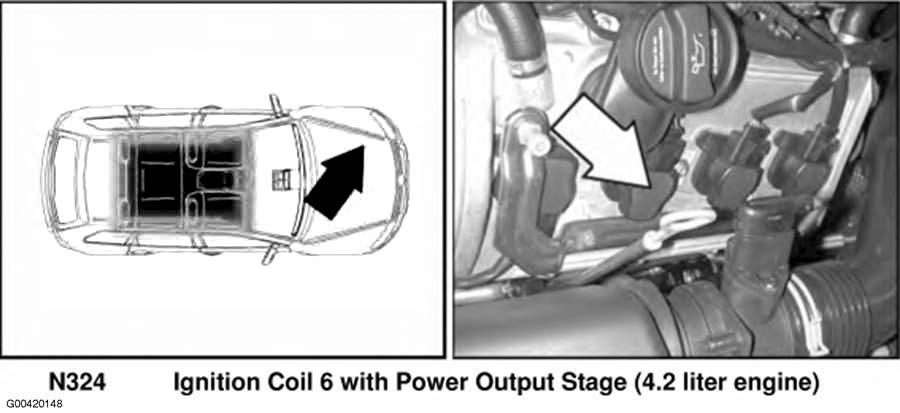

Fig 70: Left Side Of Engine

G00420148

Courtesy of VOLKSWAGEN UNITED STATES, INC.

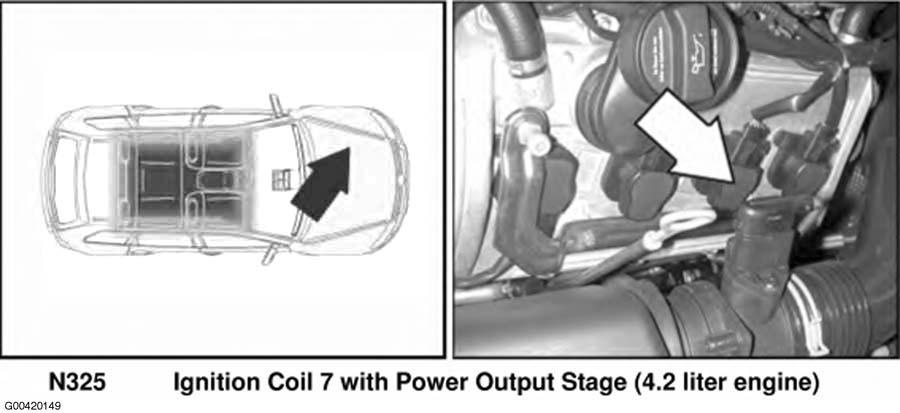

Fig 71: Left Side Of Engine

G00420149

Courtesy of VOLKSWAGEN UNITED STATES, INC.

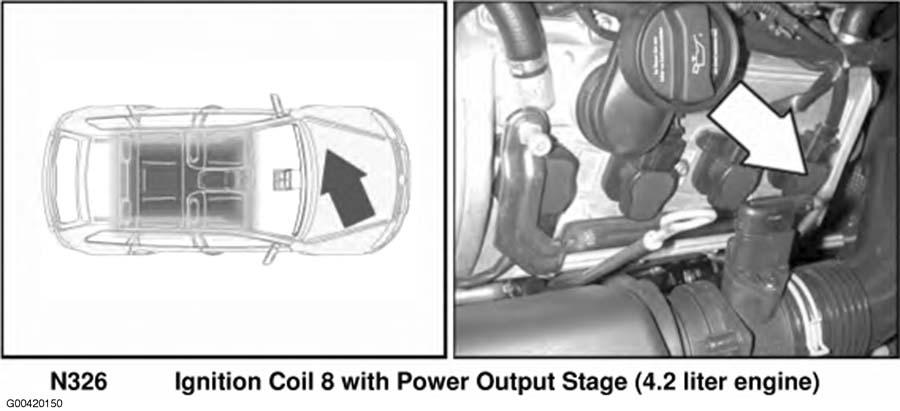

Fig 72: Left Side Of Engine

G00420150

Courtesy of VOLKSWAGEN UNITED STATES, INC.

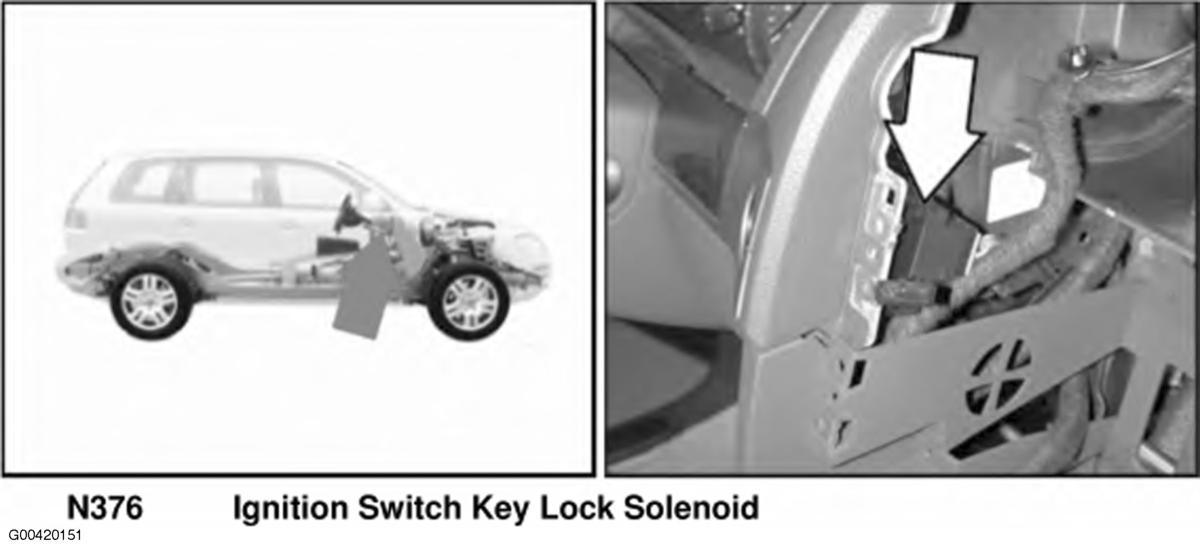

Fig 73: Right Side Of Dash

G00420151

Courtesy of VOLKSWAGEN UNITED STATES, INC.

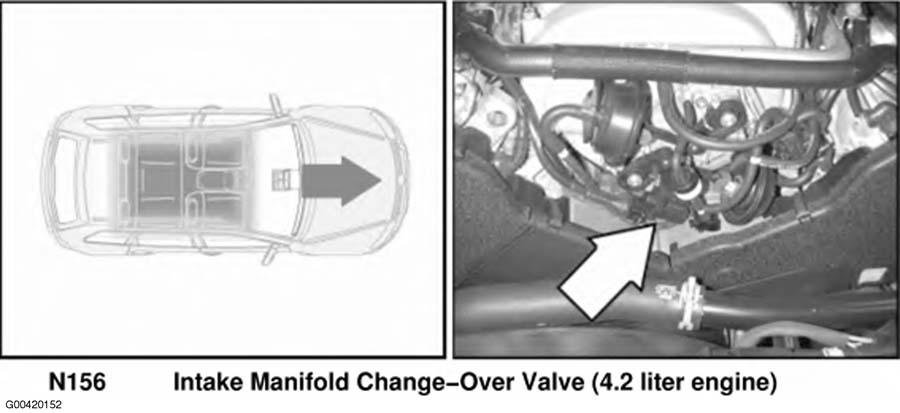

Fig 74: Front Of Engine (4.2L)

G00420152

Courtesy of VOLKSWAGEN UNITED STATES, INC.

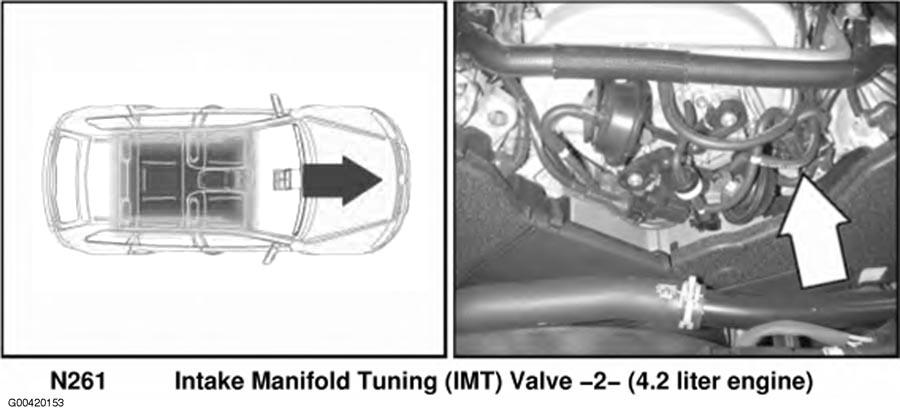

Fig 75: Front Of Engine

G00420153

Courtesy of VOLKSWAGEN UNITED STATES, INC.

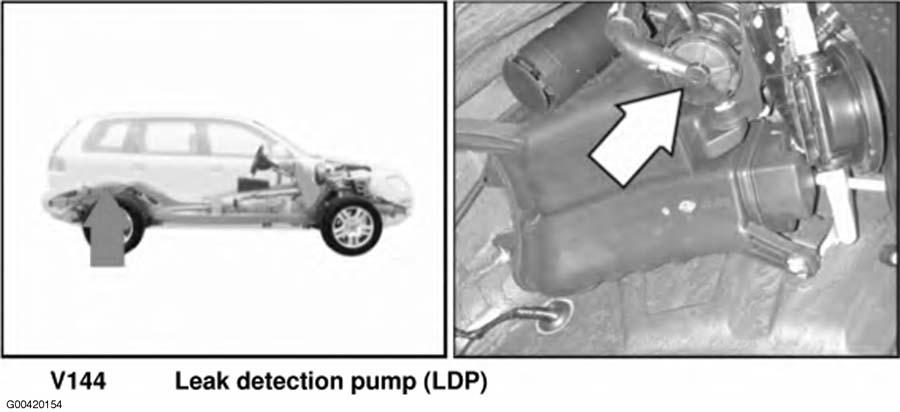

Fig 76: Right Rear Of Vehicle

G00420154

Courtesy of VOLKSWAGEN UNITED STATES, INC.

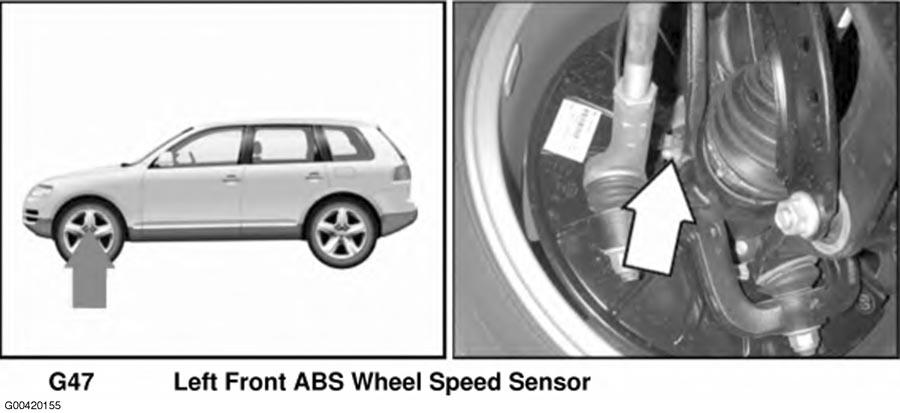

Fig 77: Left Front Wheel

G00420155

Courtesy of VOLKSWAGEN UNITED STATES, INC.

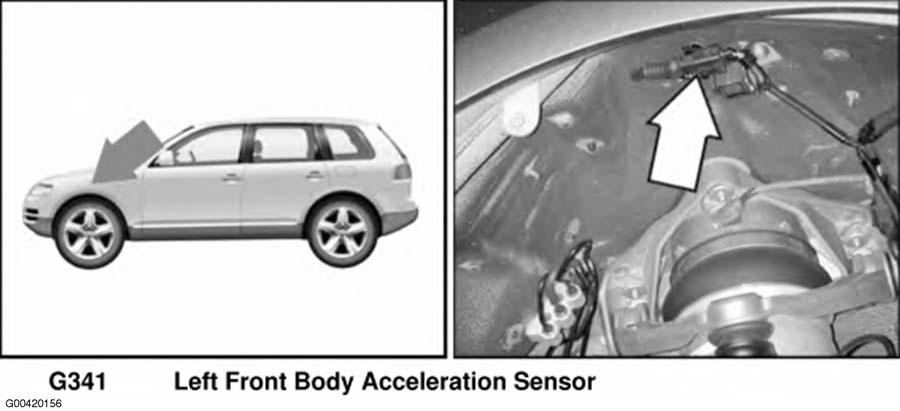

Fig 78: Left Front Of Vehicle

G00420156

Courtesy of VOLKSWAGEN UNITED STATES, INC.

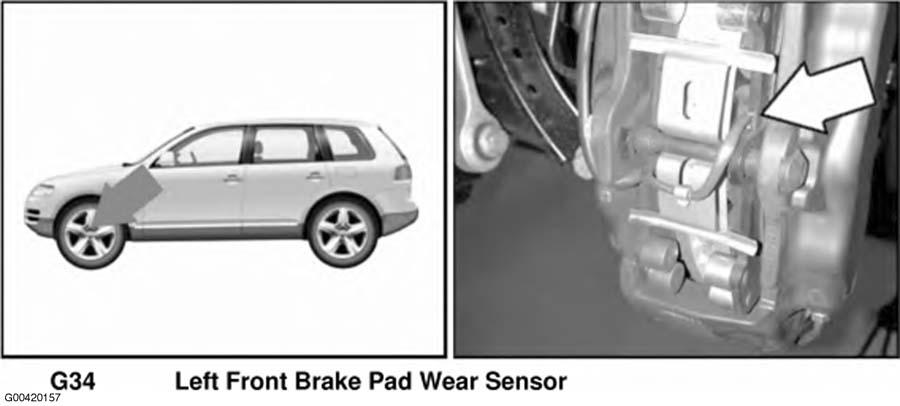

Fig 79: Left Front Wheel

G00420157

Courtesy of VOLKSWAGEN UNITED STATES, INC.

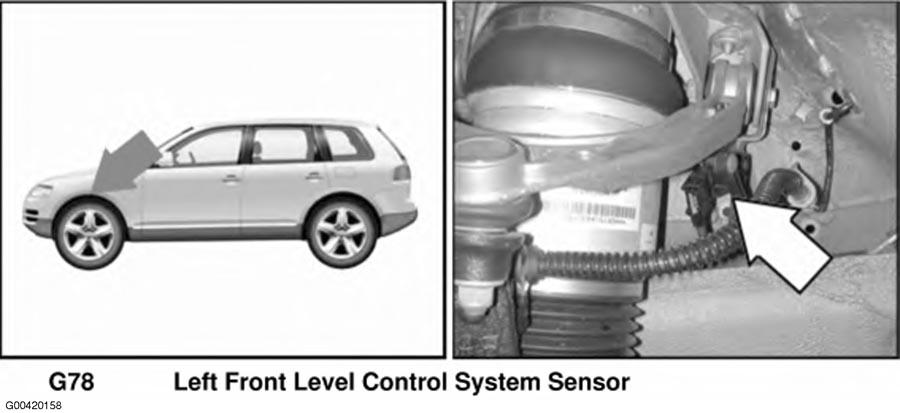

Fig 80: Left Front Of Vehicle

G00420158

Courtesy of VOLKSWAGEN UNITED STATES, INC.

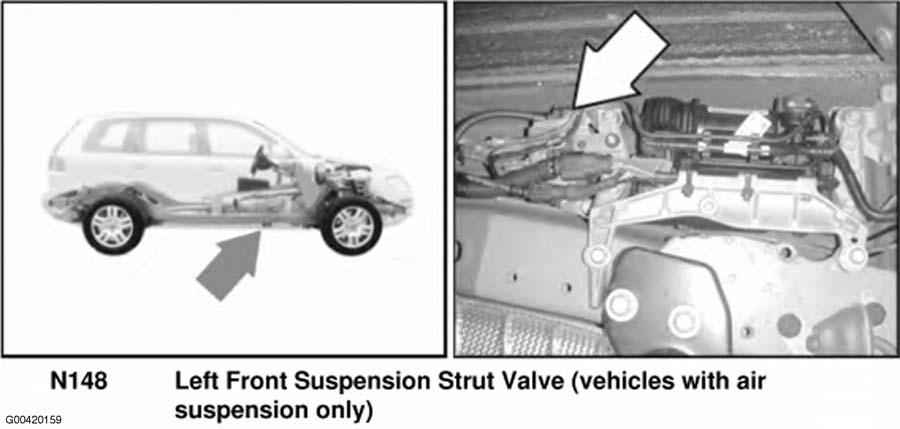

Fig 81: Under Vehicle

G00420159

Courtesy of VOLKSWAGEN UNITED STATES, INC.

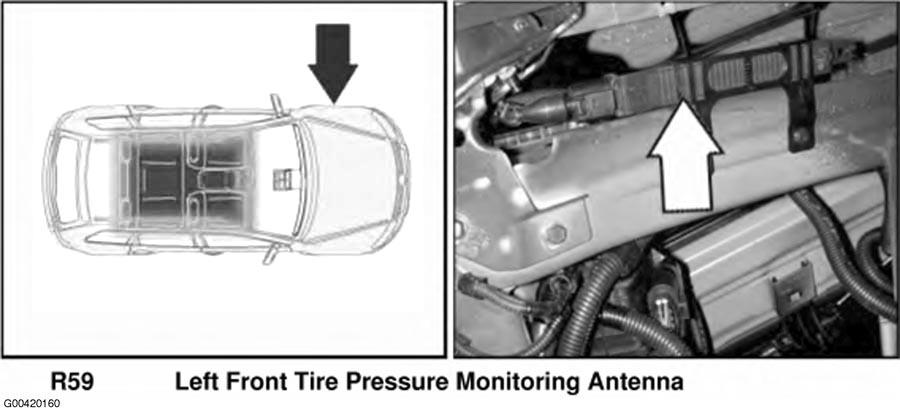

Fig 82: Left Front Of Vehicle

G00420160

Courtesy of VOLKSWAGEN UNITED STATES, INC.

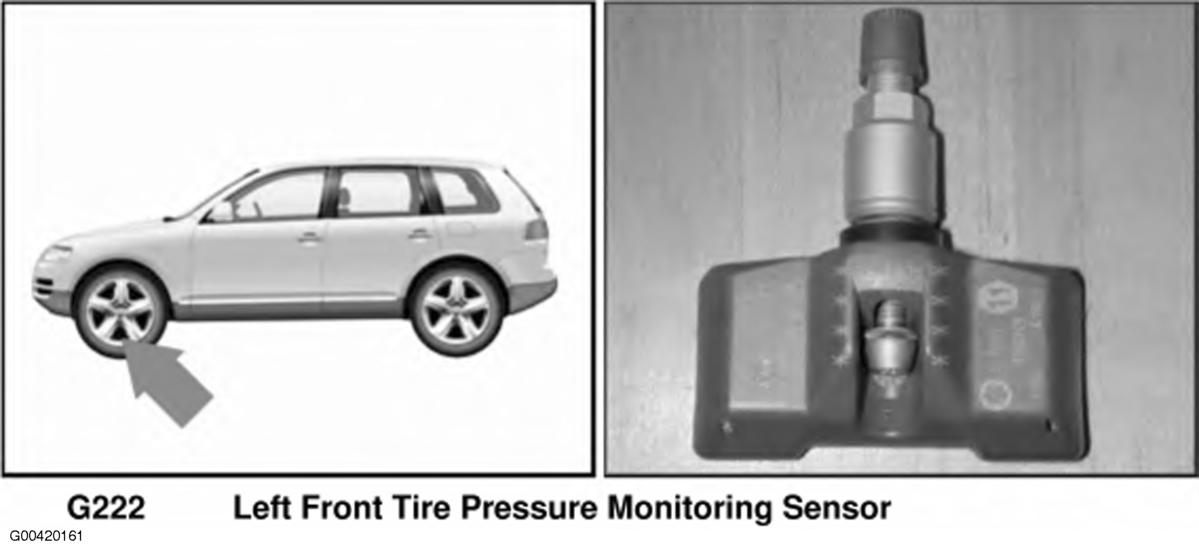

Fig 83: Left Front Wheel

G00420161

Courtesy of VOLKSWAGEN UNITED STATES, INC.

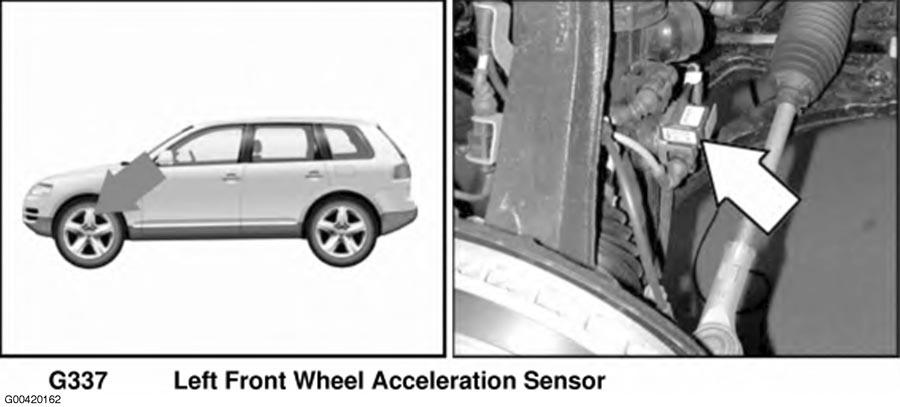

Fig 84: Left Front Of Vehicle

G00420162

Courtesy of VOLKSWAGEN UNITED STATES, INC.

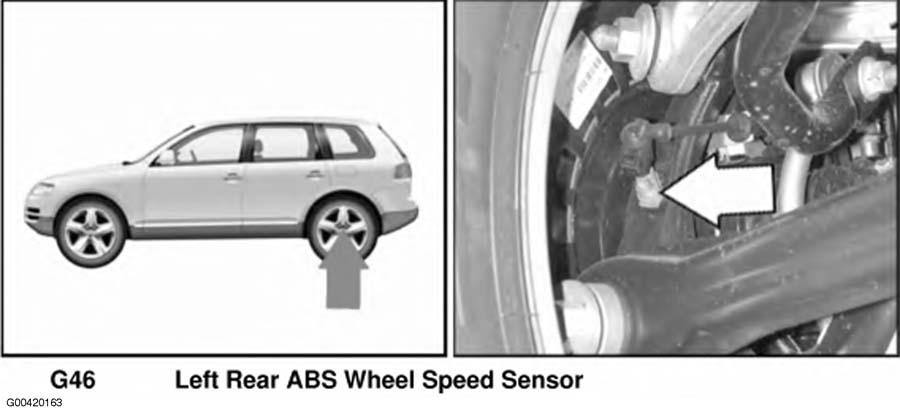

Fig 85: Left Rear Wheel

G00420163

Courtesy of VOLKSWAGEN UNITED STATES, INC.

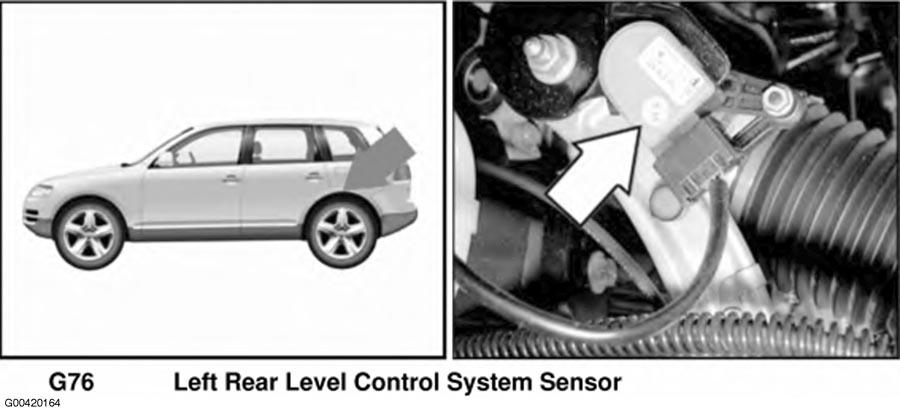

Fig 86: Left Rear Wheel

G00420164

Courtesy of VOLKSWAGEN UNITED STATES, INC.

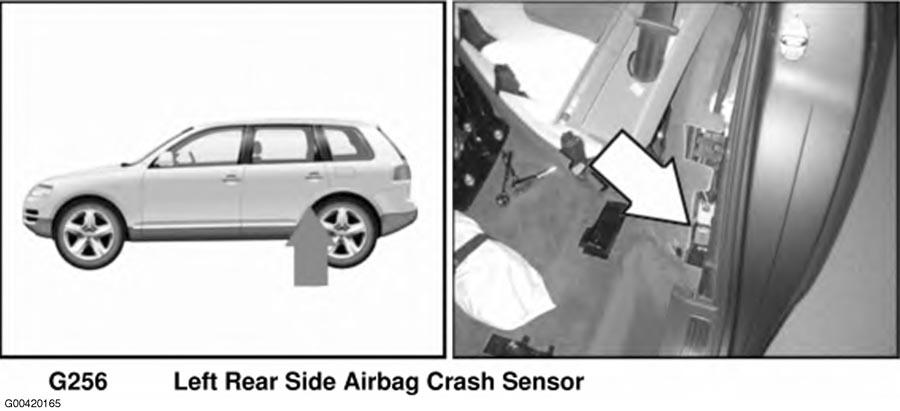

Fig 87: Left Side Of Vehicle

G00420165

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 88: Under Vehicle

G00420166

Courtesy of VOLKSWAGEN UNITED STATES, INC.

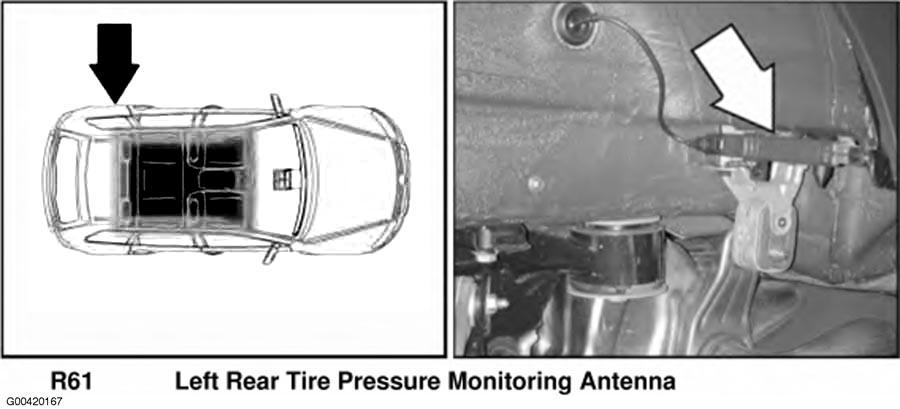

Fig 89: Left Rear Of Vehicle

G00420167

Courtesy of VOLKSWAGEN UNITED STATES, INC.

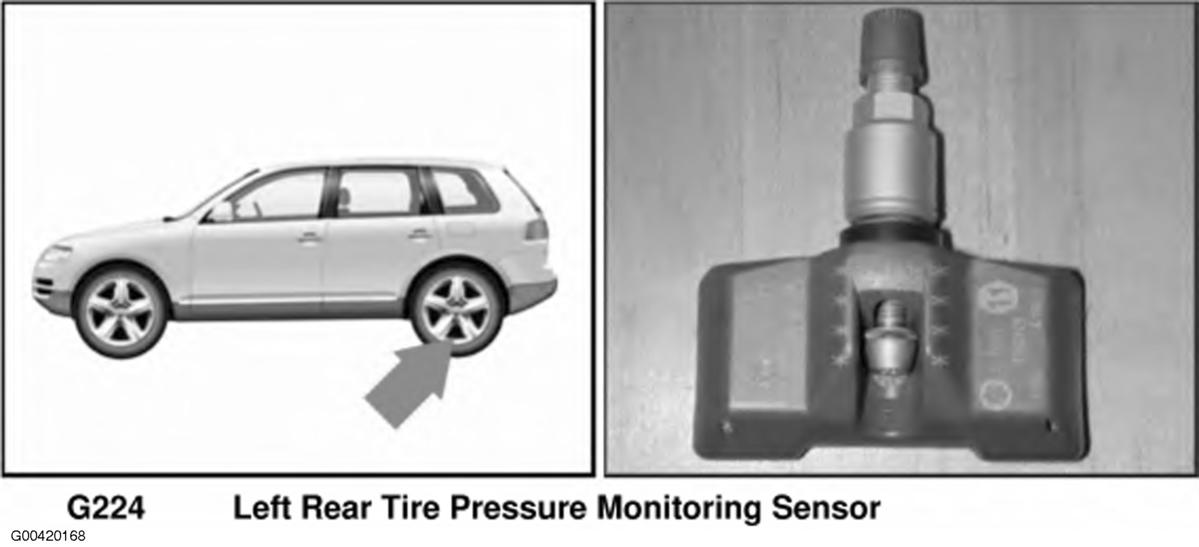

Fig 90: Left Rear Of Vehicle

G00420168

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 91: Under Vehicle

G00420169

Courtesy of VOLKSWAGEN UNITED STATES, INC.

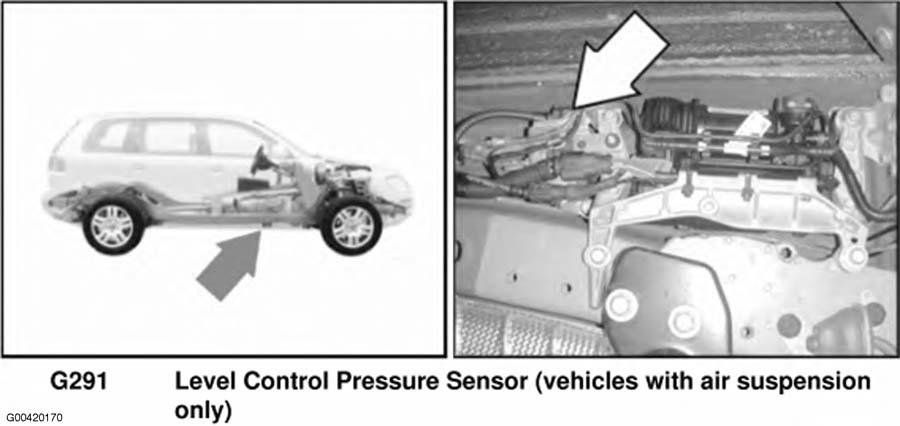

Fig 92: Under Vehicle

G00420170

Courtesy of VOLKSWAGEN UNITED STATES, INC.

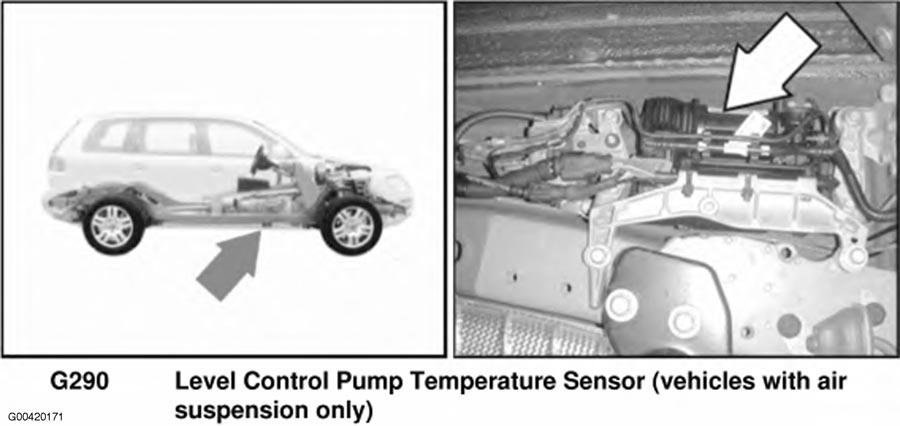

Fig 93: Under Vehicle

G00420171

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 94: Right Rear Of Vehicle

G00420172

Courtesy of VOLKSWAGEN UNITED STATES, INC.

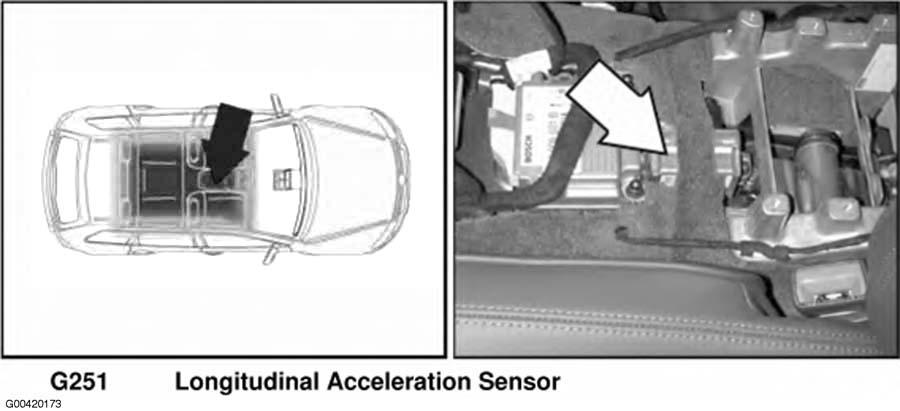

Fig 95: Center Console

G00420173

Courtesy of VOLKSWAGEN UNITED STATES, INC.

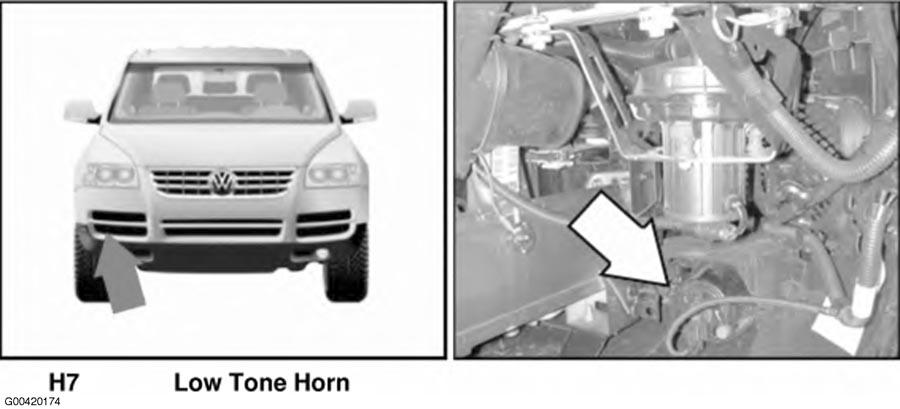

Fig 96: Right Front Of Vehicle

G00420174

Courtesy of VOLKSWAGEN UNITED STATES, INC.

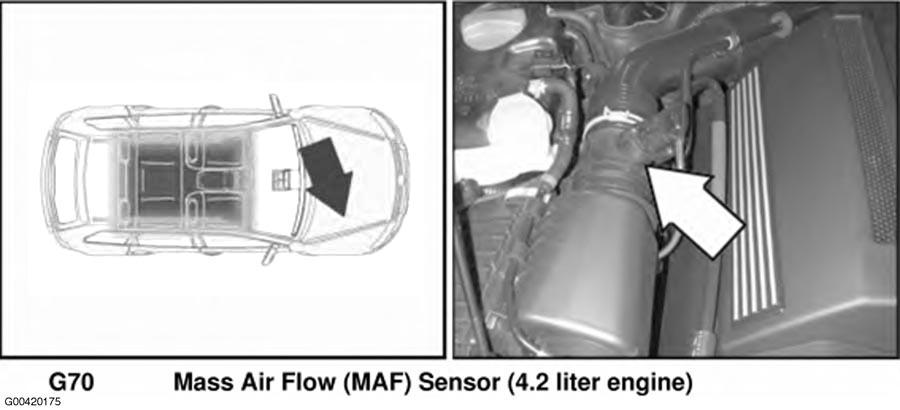

Fig 97: Right Side Of Engine Compartment

G00420175

Courtesy of VOLKSWAGEN UNITED STATES, INC.

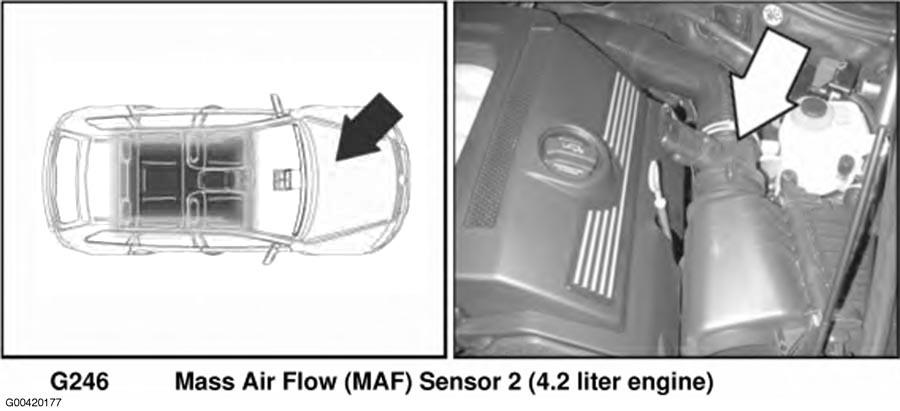

Fig 98: Left Side Of Engine Compartment

G00420177

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 99: Driver's Seat

G00420178

Courtesy of VOLKSWAGEN UNITED STATES, INC.

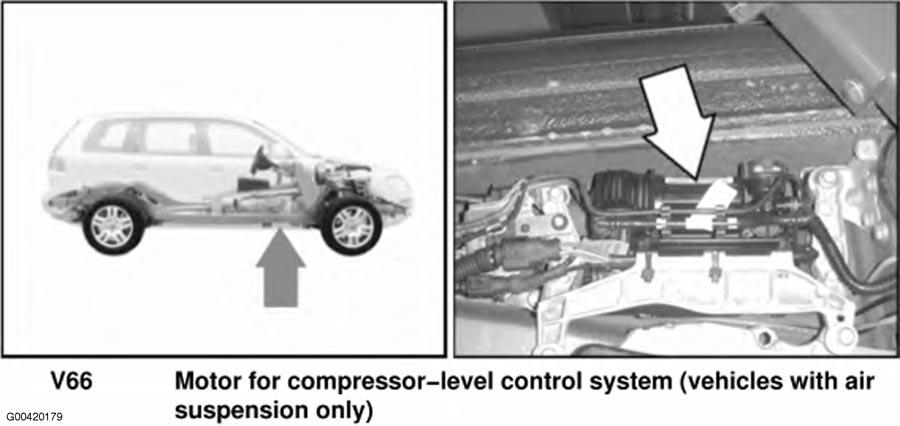

Fig 100: Under Vehicle

G00420179

Courtesy of VOLKSWAGEN UNITED STATES, INC.

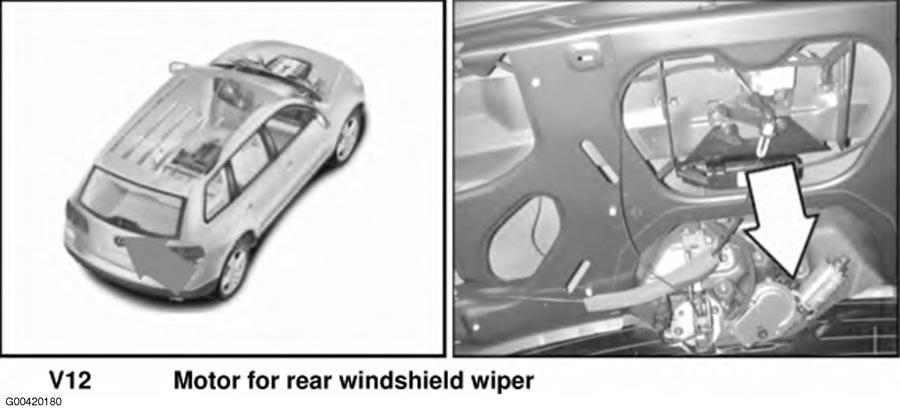

Fig 101: Tailgate

G00420180

Courtesy of VOLKSWAGEN UNITED STATES, INC.

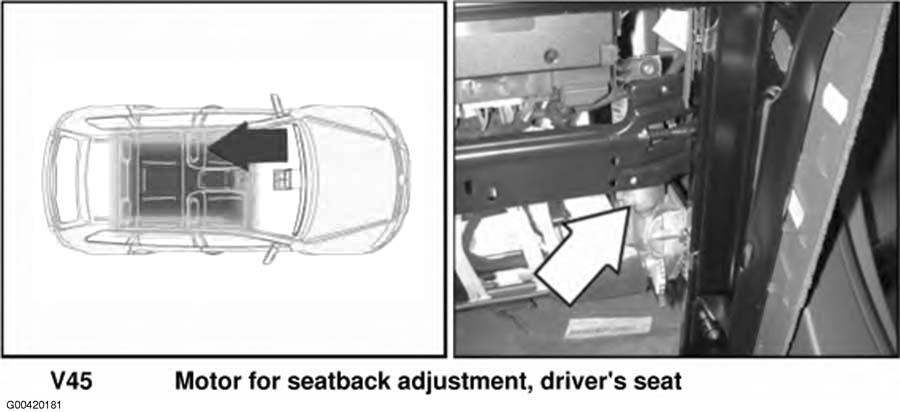

Fig 102: Driver's Seat

G00420181

Courtesy of VOLKSWAGEN UNITED STATES, INC.

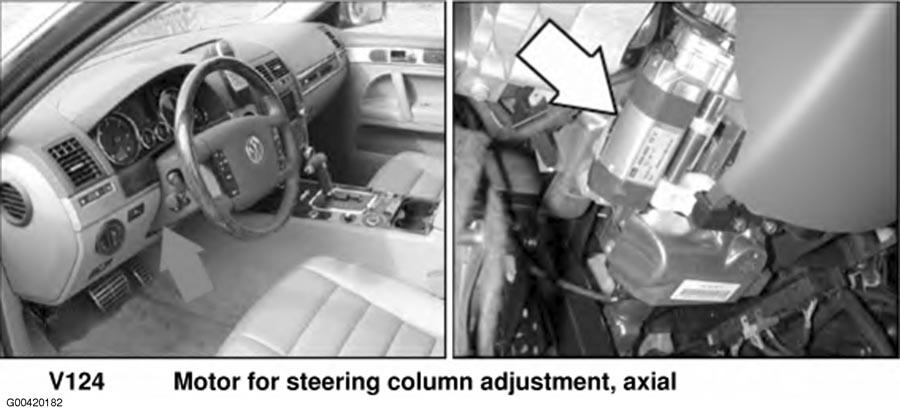

Fig 103: Steering Column

G00420182

Courtesy of VOLKSWAGEN UNITED STATES, INC.

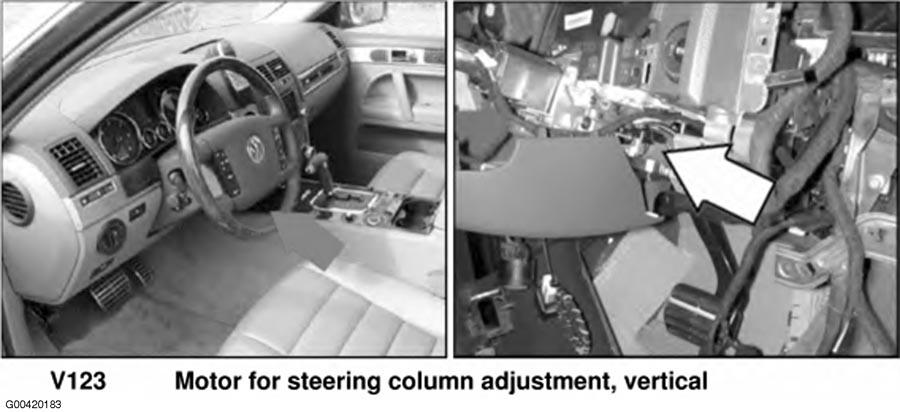

Fig 104: Steering Column

G00420183

Courtesy of VOLKSWAGEN UNITED STATES, INC.

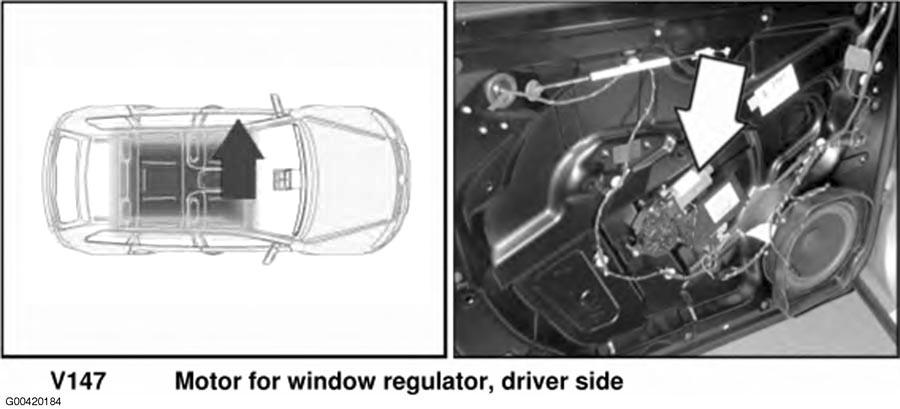

Fig 105: Driver's Door

G00420184

Courtesy of VOLKSWAGEN UNITED STATES, INC.

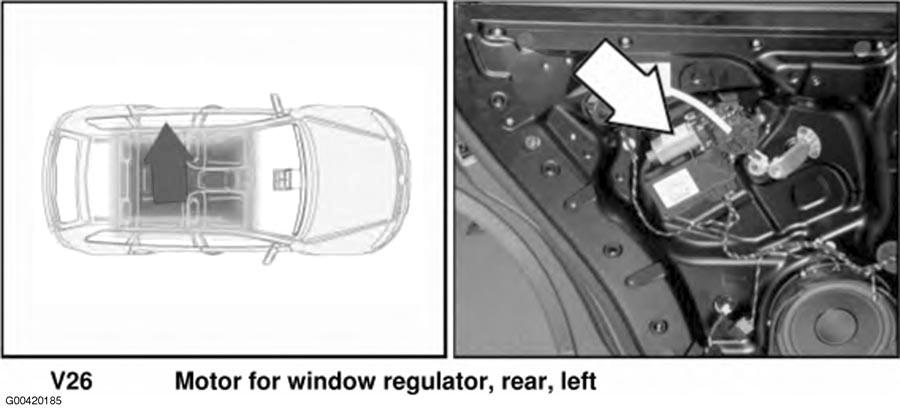

Fig 106: Left Rear Door

G00420185

Courtesy of VOLKSWAGEN UNITED STATES, INC.

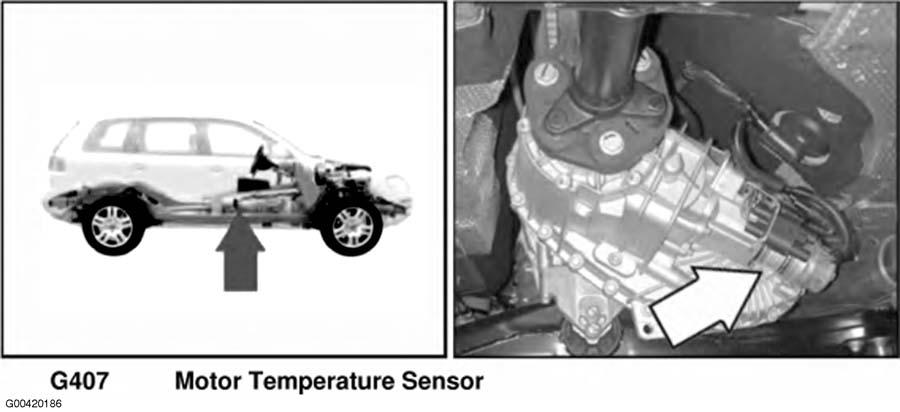

Fig 107: Center Differential

G00420186

Courtesy of VOLKSWAGEN UNITED STATES, INC.

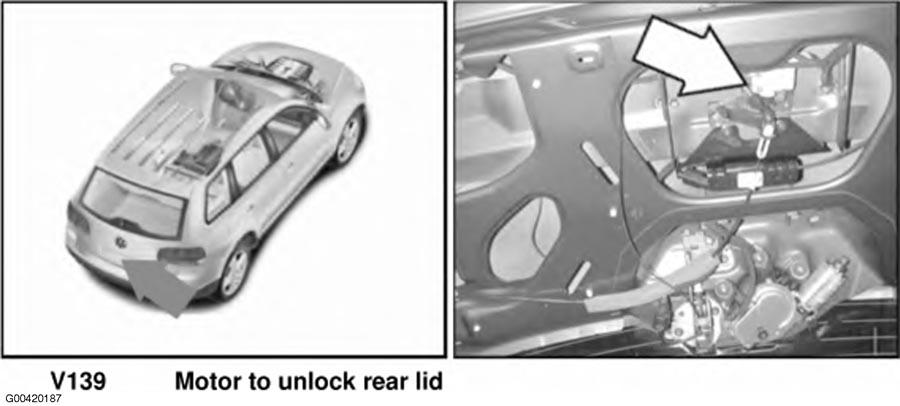

Fig 108: Tailgate

G00420187

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 109: Right Rear Of Engine Compartment

G00420188

Courtesy of VOLKSWAGEN UNITED STATES, INC.

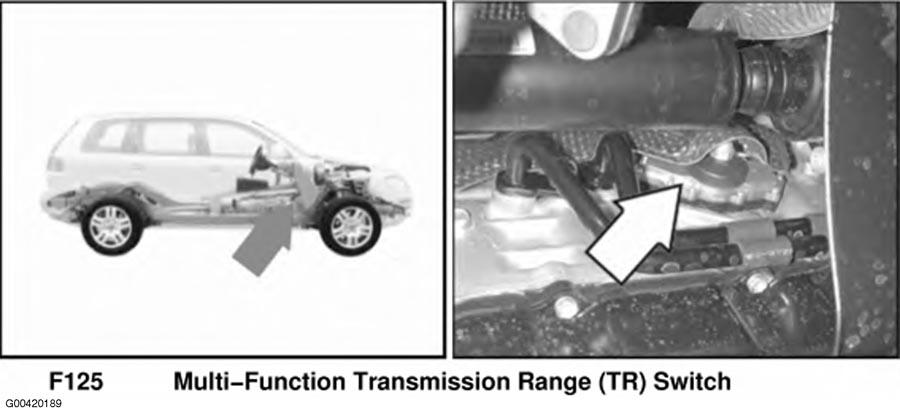

Fig 110: Under Vehicle

G00420189

Courtesy of VOLKSWAGEN UNITED STATES, INC.

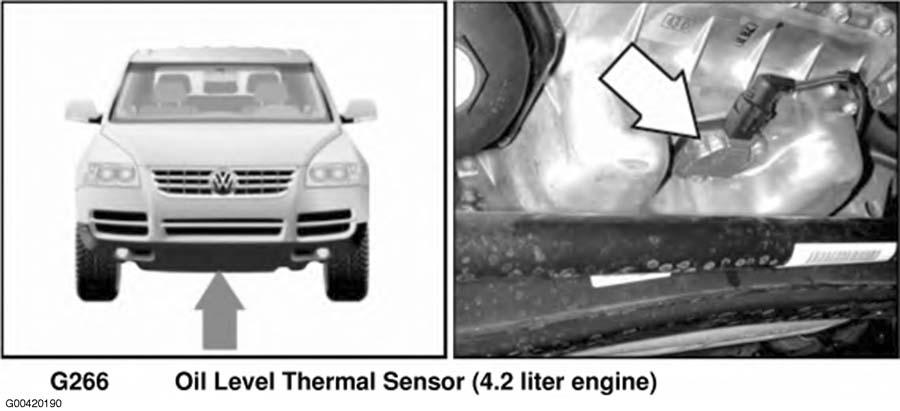

Fig 111: Bottom Of Engine (4.2L)

G00420190

Courtesy of VOLKSWAGEN UNITED STATES, INC.

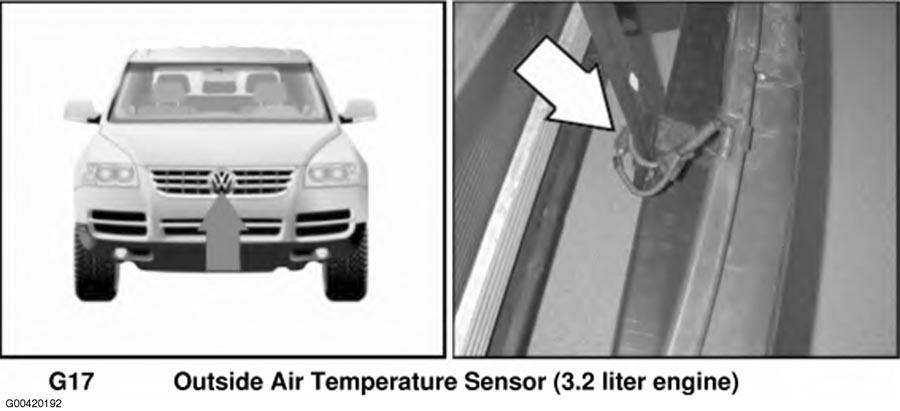

Fig 112: Front Of Vehicle

G00420192

Courtesy of VOLKSWAGEN UNITED STATES, INC.

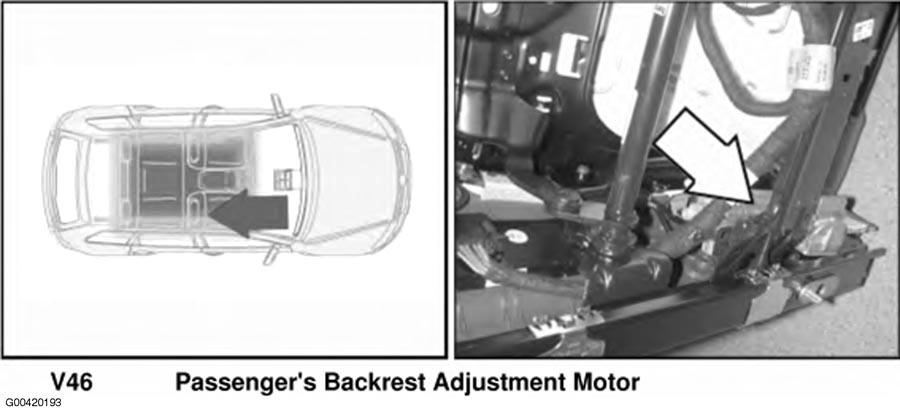

Fig 113: Passenger's Seat

G00420193

Courtesy of VOLKSWAGEN UNITED STATES, INC.

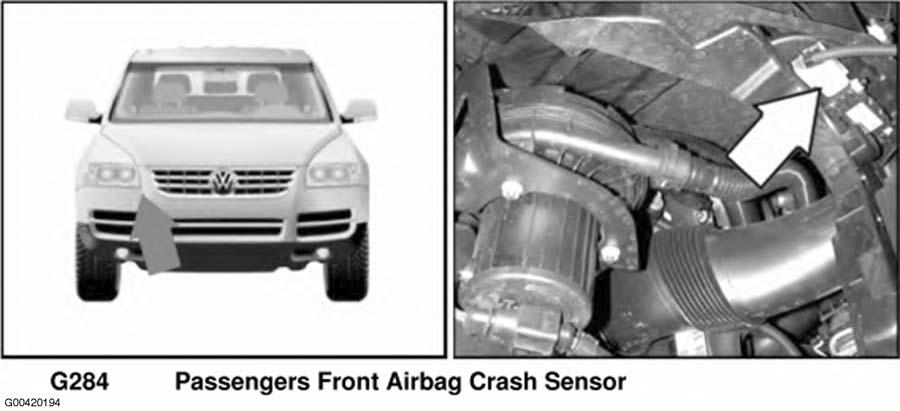

Fig 114: Right Front Of Vehicle

G00420194

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 115: Passenger's Seat

G00420195

Courtesy of VOLKSWAGEN UNITED STATES, INC.

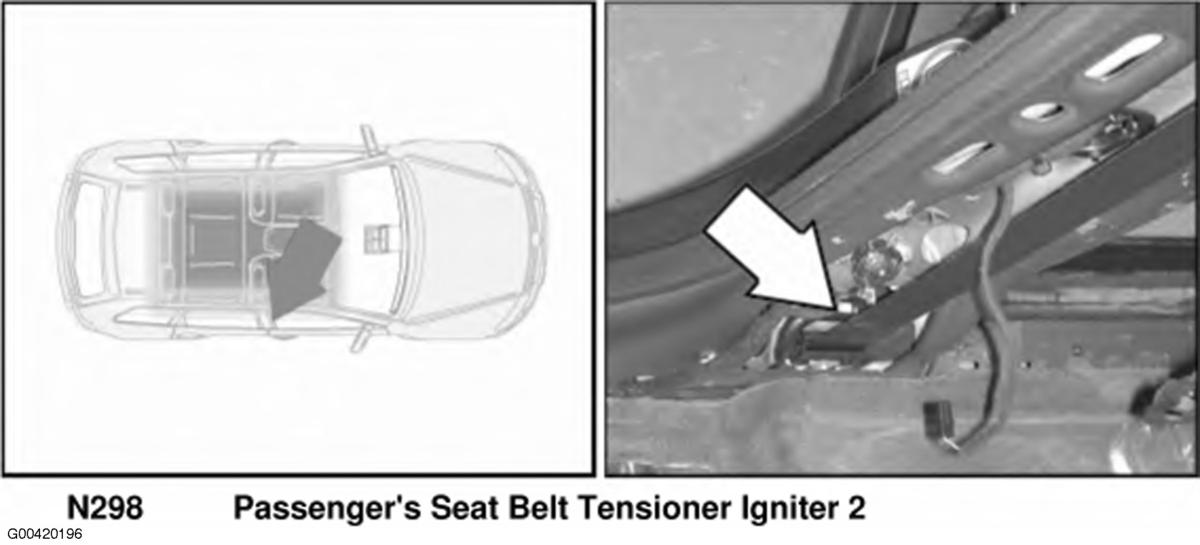

Fig 116: Right "B" Pillar

G00420196

Courtesy of VOLKSWAGEN UNITED STATES, INC.

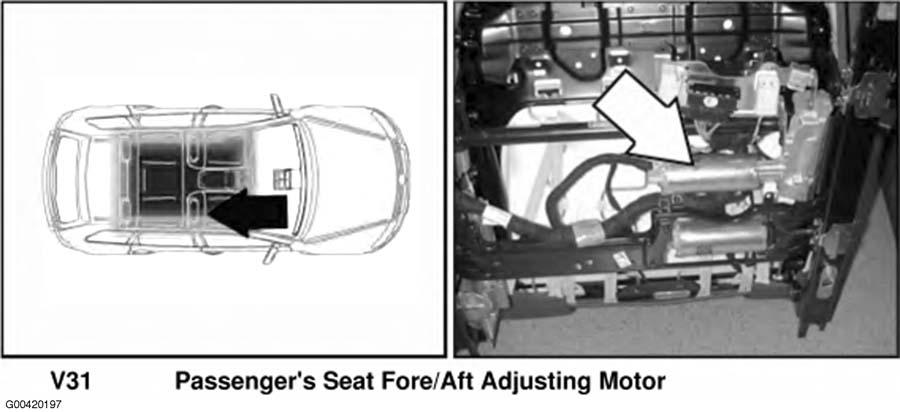

Fig 117: Passenger's Seat

G00420197

Courtesy of VOLKSWAGEN UNITED STATES, INC.

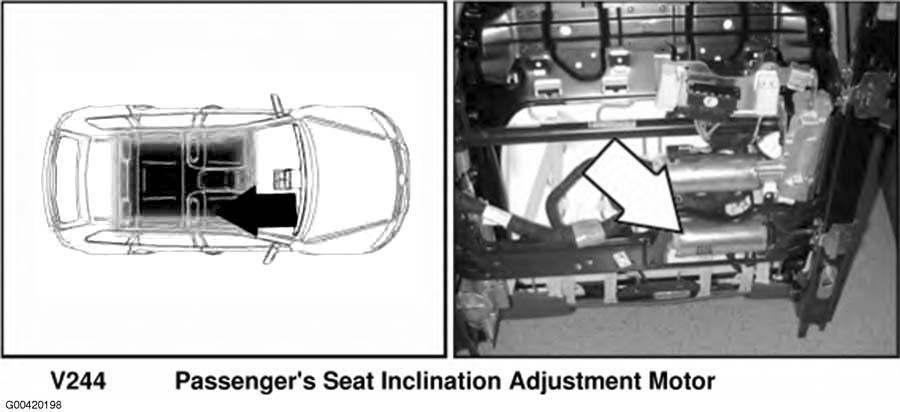

Fig 118: Below Passenger's Seat

G00420198

Courtesy of VOLKSWAGEN UNITED STATES, INC.

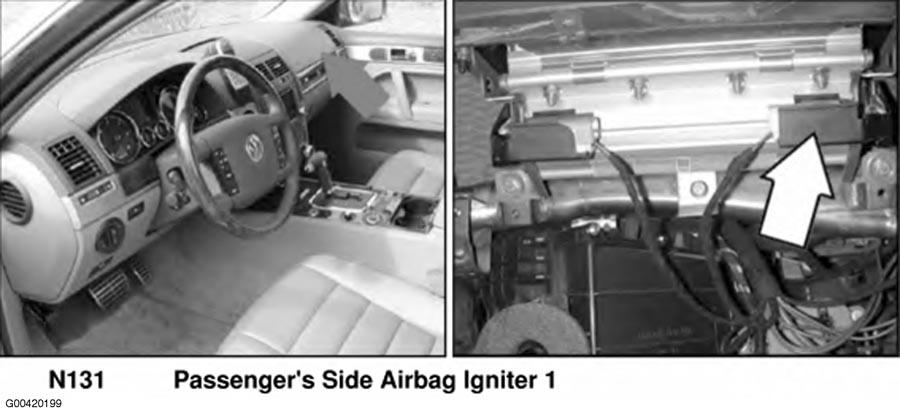

Fig 119: Right Side Of Dash

G00420199

Courtesy of VOLKSWAGEN UNITED STATES, INC.

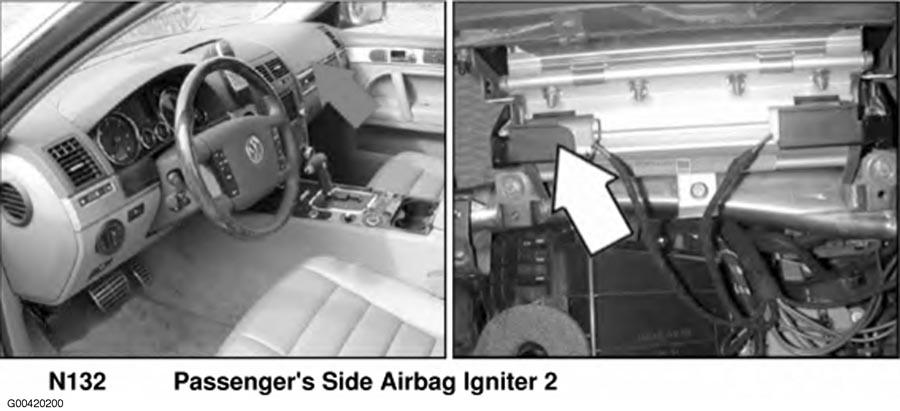

Fig 120: Right Side Of Dash

G00420200

Courtesy of VOLKSWAGEN UNITED STATES, INC.

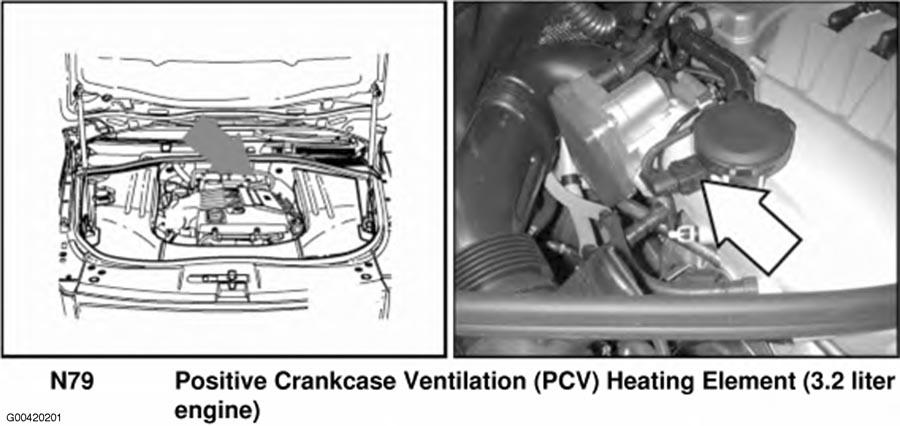

Fig 121: Engine Compartment (3.2L)

G00420201

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 122: Center Of Roof

G00420202

Courtesy of VOLKSWAGEN UNITED STATES, INC.

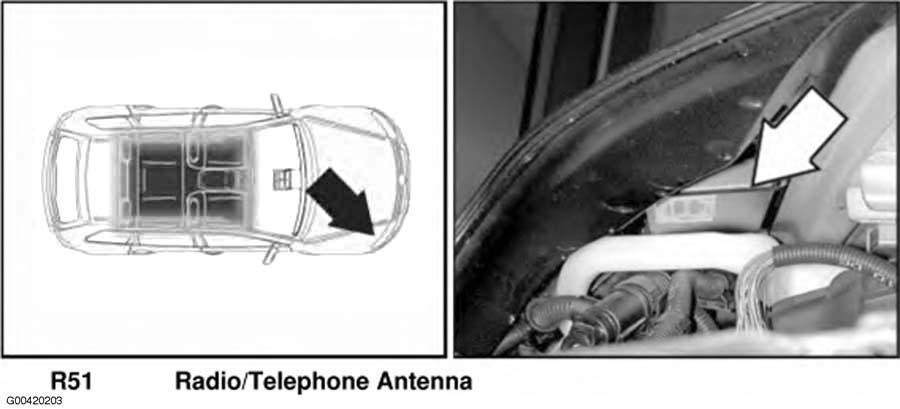

Fig 123: Right Front Of Vehicle

G00420203

Courtesy of VOLKSWAGEN UNITED STATES, INC.

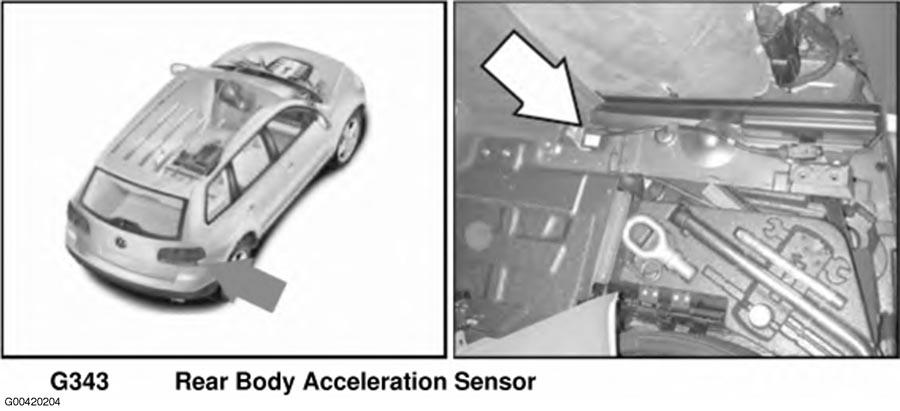

Fig 124: Right Rear Of Vehicle

G00420204

Courtesy of VOLKSWAGEN UNITED STATES, INC.

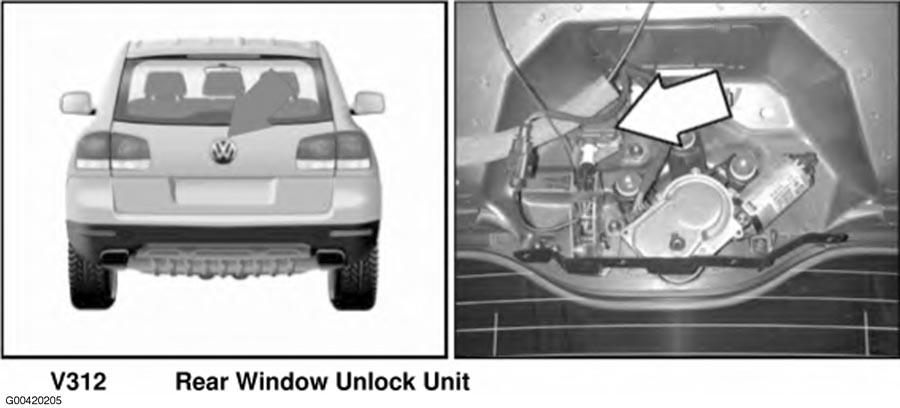

Fig 125: Tailgate

G00420205

Courtesy of VOLKSWAGEN UNITED STATES, INC.

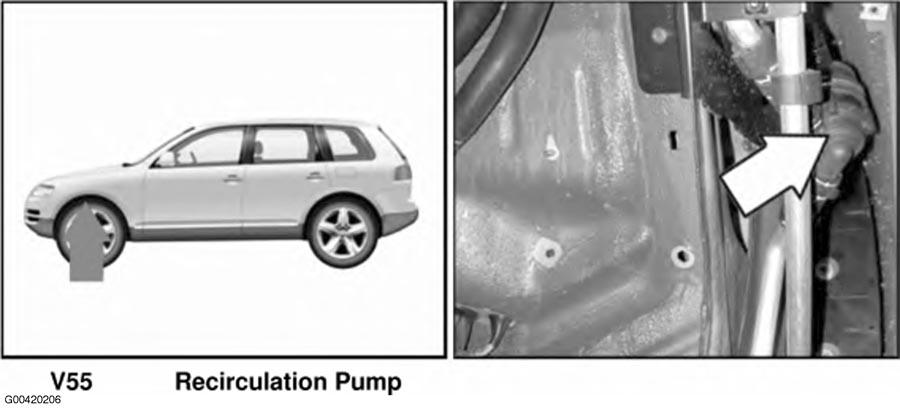

Fig 126: Left Front Fender

G00420206

Courtesy of VOLKSWAGEN UNITED STATES, INC.

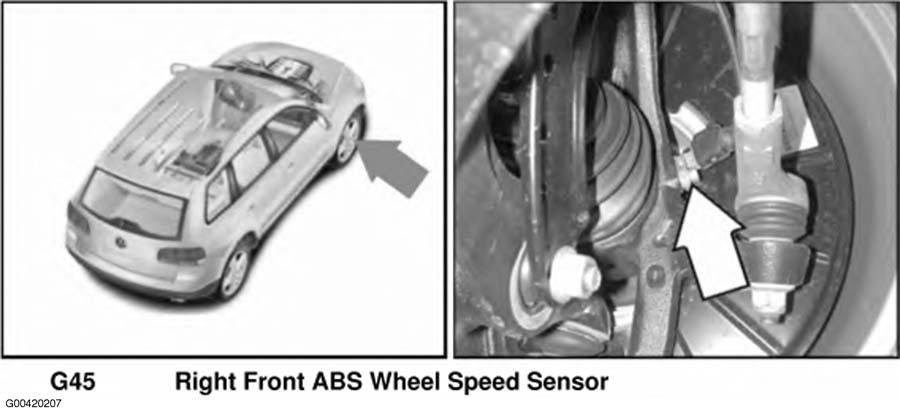

Fig 127: Right Front Wheel

G00420207

Courtesy of VOLKSWAGEN UNITED STATES, INC.

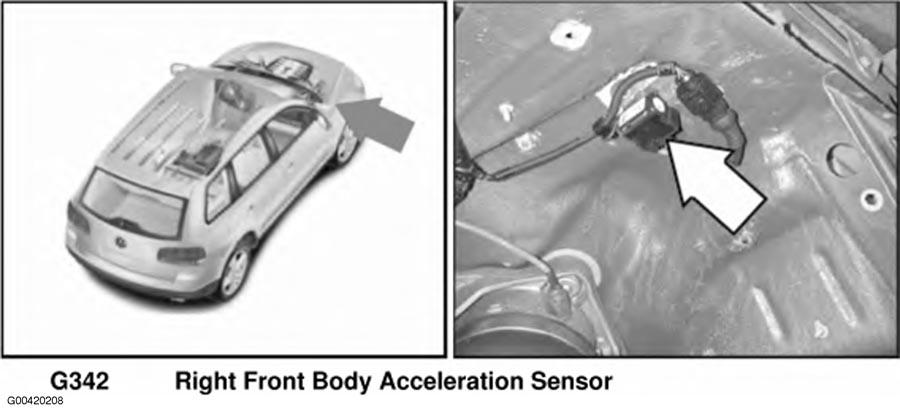

Fig 128: Right Front Of Vehicle

G00420208

Courtesy of VOLKSWAGEN UNITED STATES, INC.

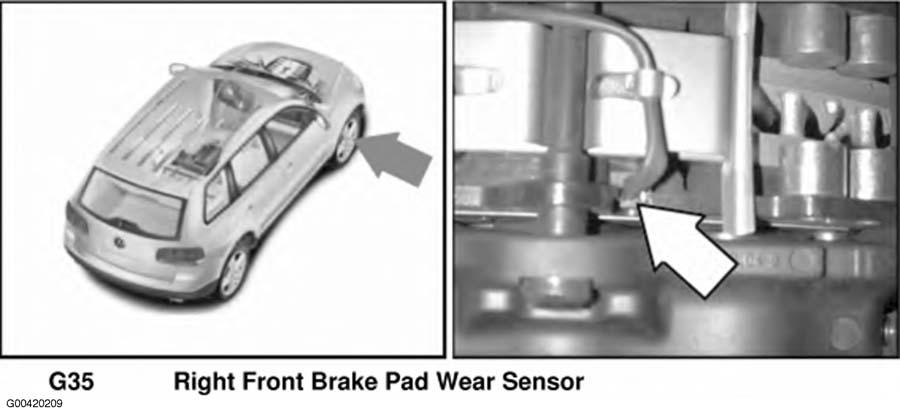

Fig 129: Right Front Wheel

G00420209

Courtesy of VOLKSWAGEN UNITED STATES, INC.

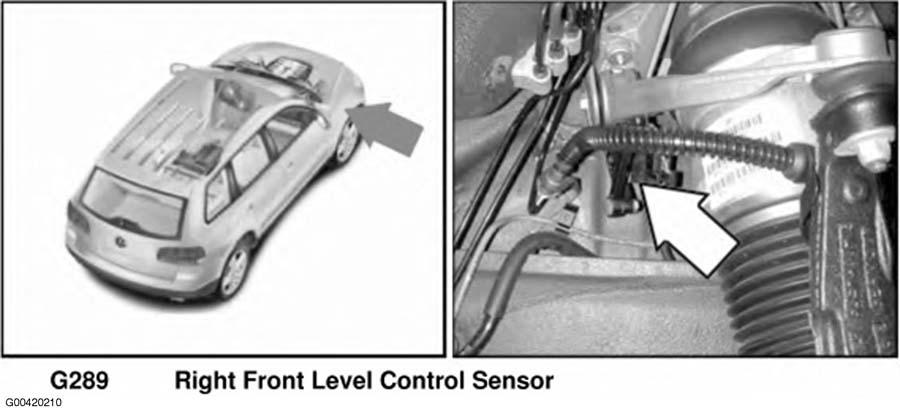

Fig 130: Right Front Of Vehicle

G00420210

Courtesy of VOLKSWAGEN UNITED STATES, INC.

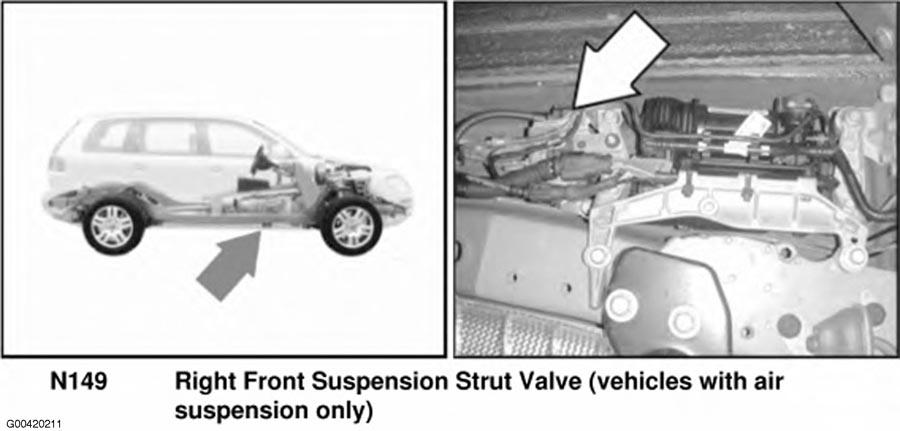

Fig 131: Under Vehicle

G00420211

Courtesy of VOLKSWAGEN UNITED STATES, INC.

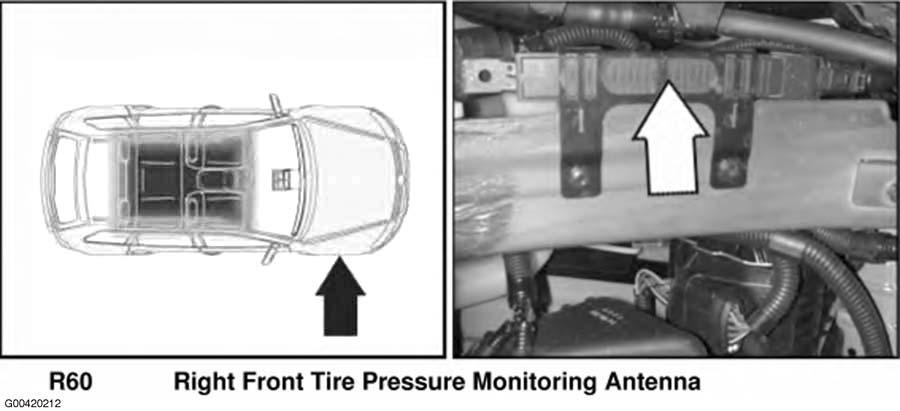

Fig 132: Right Front Of Vehicle

G00420212

Courtesy of VOLKSWAGEN UNITED STATES, INC.

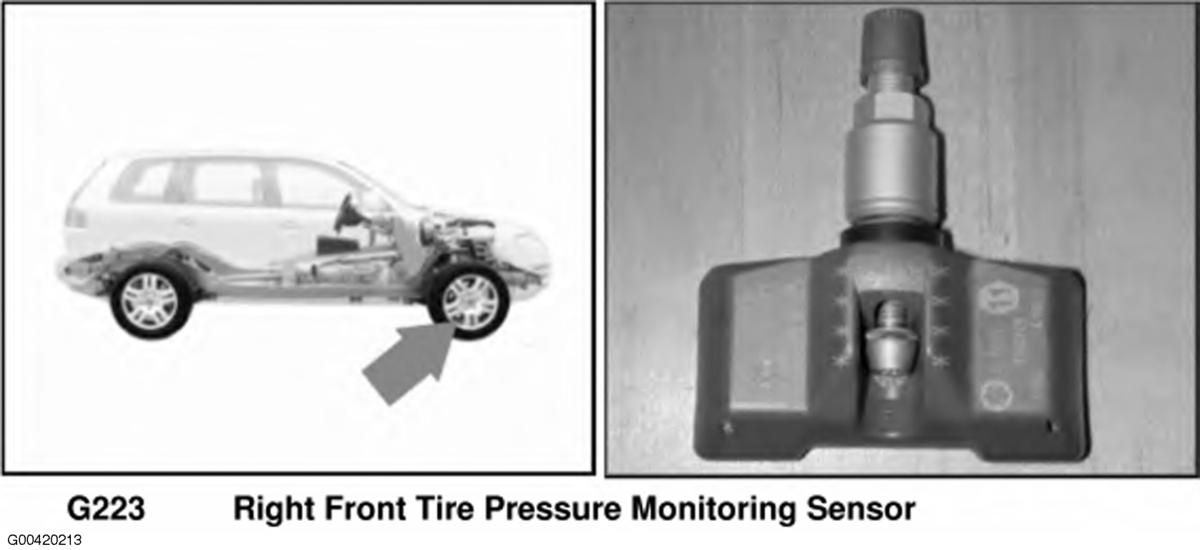

Fig 133: Right Front Wheel

G00420213

Courtesy of VOLKSWAGEN UNITED STATES, INC.

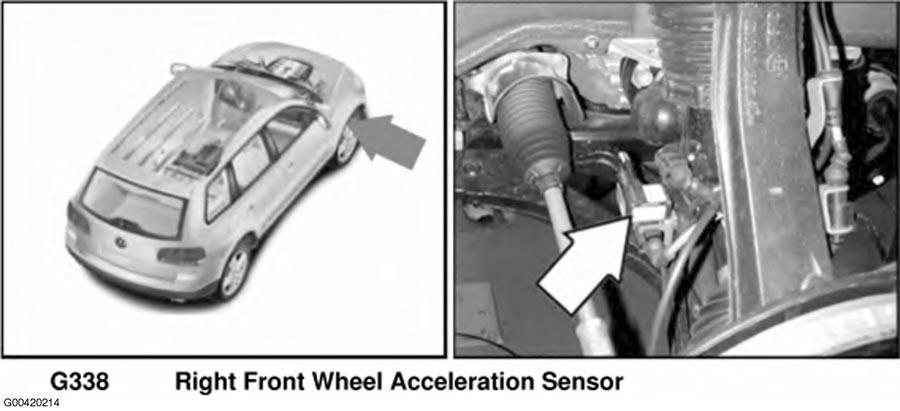

Fig 134: Right Front Of Vehicle

G00420214

Courtesy of VOLKSWAGEN UNITED STATES, INC.

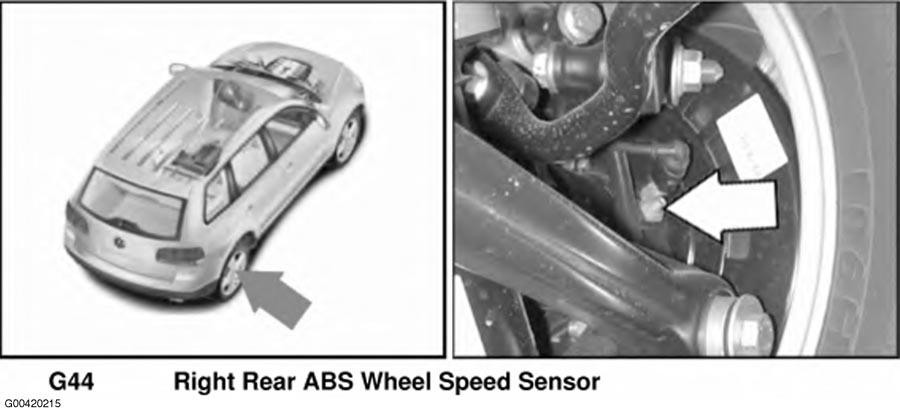

Fig 135: Right Rear Wheel

G00420215

Courtesy of VOLKSWAGEN UNITED STATES, INC.

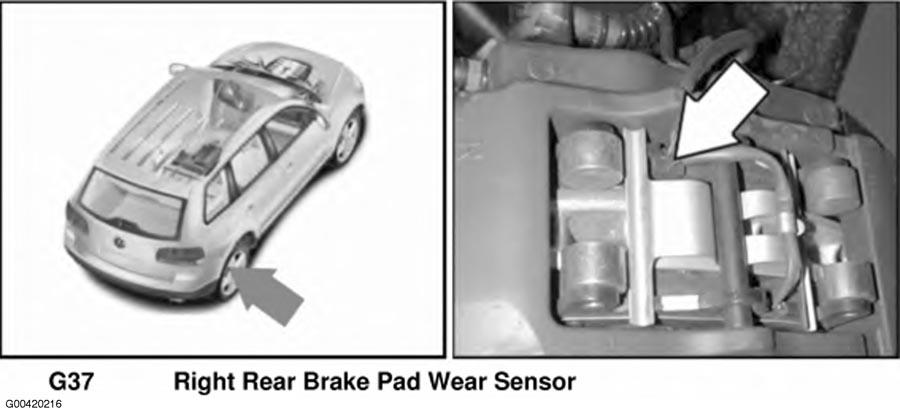

Fig 136: Right Rear Wheel

G00420216

Courtesy of VOLKSWAGEN UNITED STATES, INC.

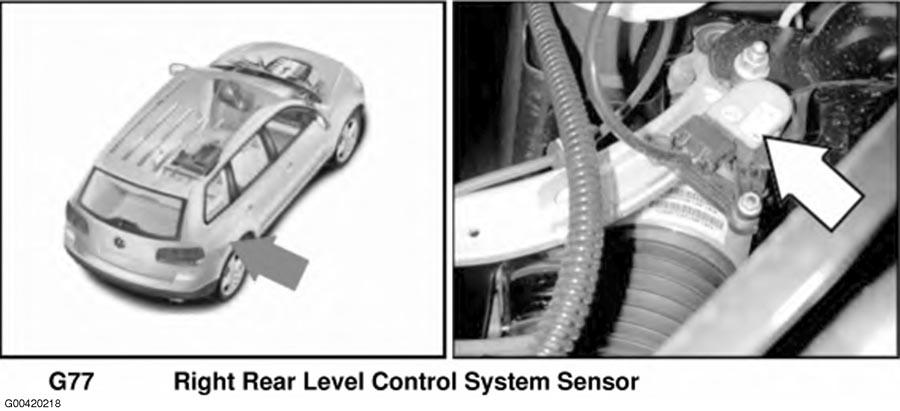

Fig 137: Right Rear Of Vehicle

G00420218

Courtesy of VOLKSWAGEN UNITED STATES, INC.

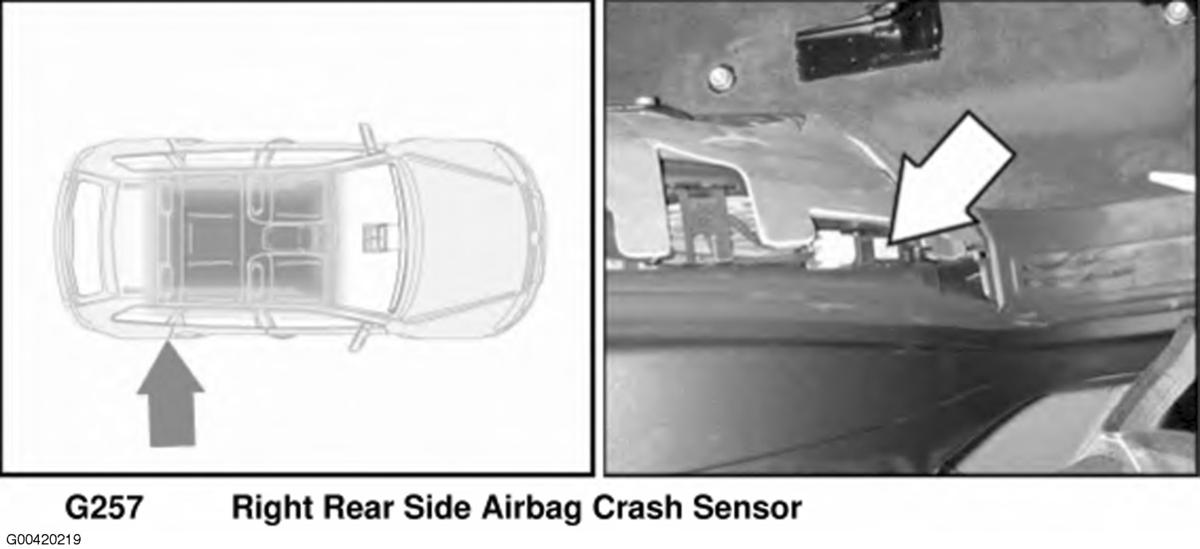

Fig 138: Right Rear Of Vehicle

G00420219

Courtesy of VOLKSWAGEN UNITED STATES, INC.

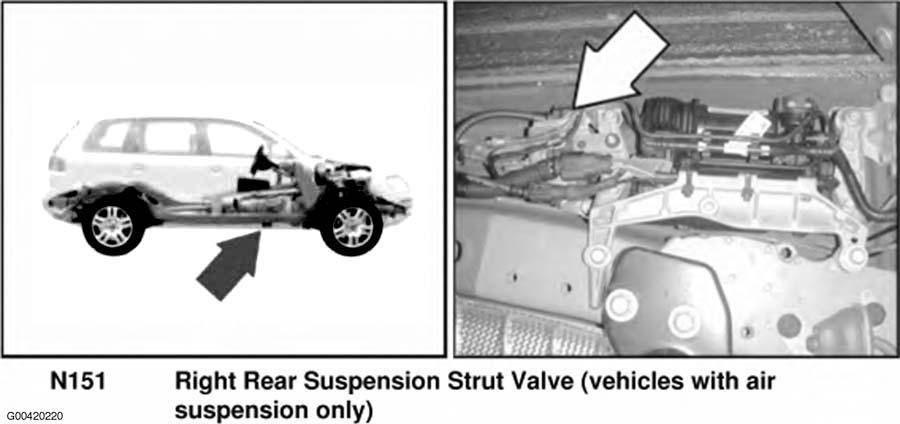

Fig 139: Under Vehicle

G00420220

Courtesy of VOLKSWAGEN UNITED STATES, INC.

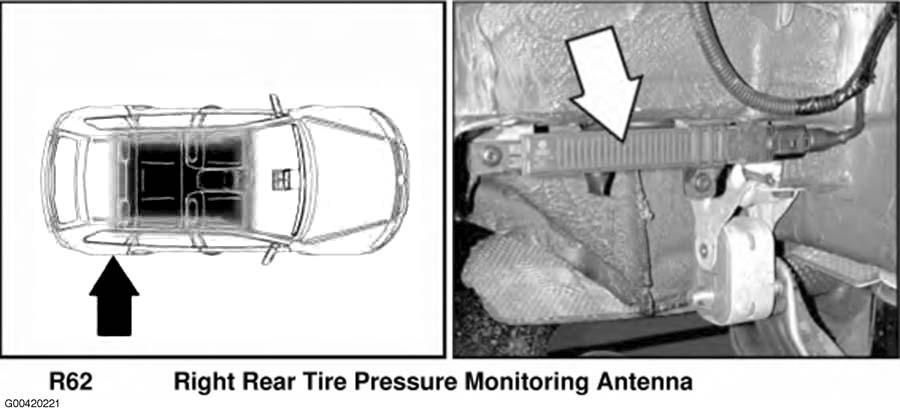

Fig 140: Right Rear Of Vehicle

G00420221

Courtesy of VOLKSWAGEN UNITED STATES, INC.

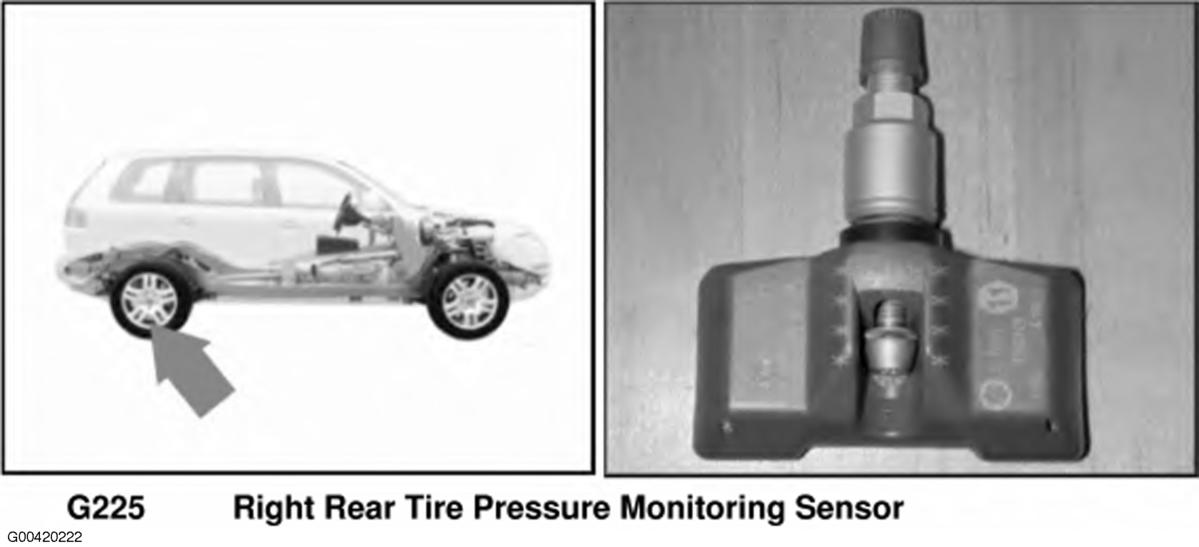

Fig 141: Right Rear Wheel

G00420222

Courtesy of VOLKSWAGEN UNITED STATES, INC.

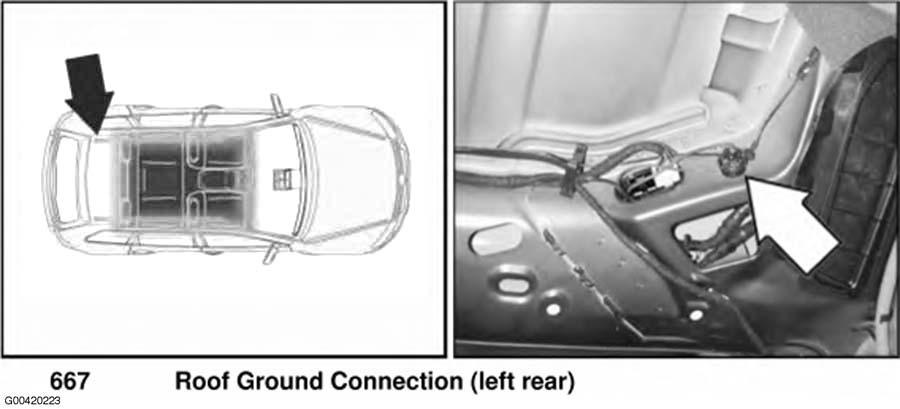

Fig 142: Left Rear Of Roof

G00420223

Courtesy of VOLKSWAGEN UNITED STATES, INC.

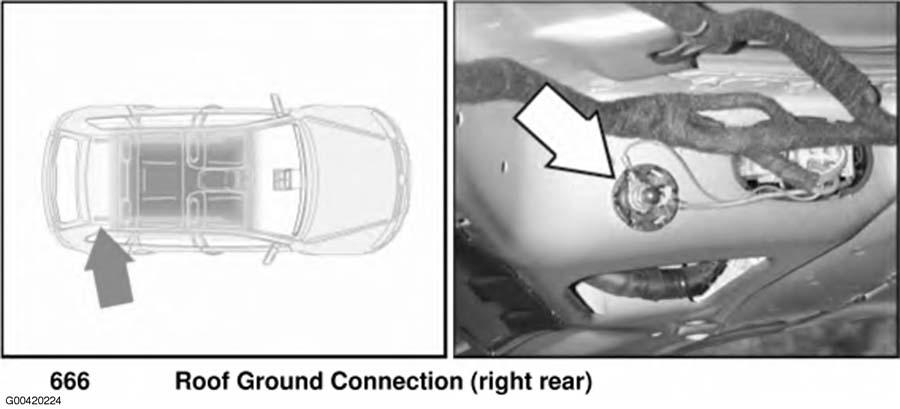

Fig 143: Right Rear Of Roof

G00420224

Courtesy of VOLKSWAGEN UNITED STATES, INC.

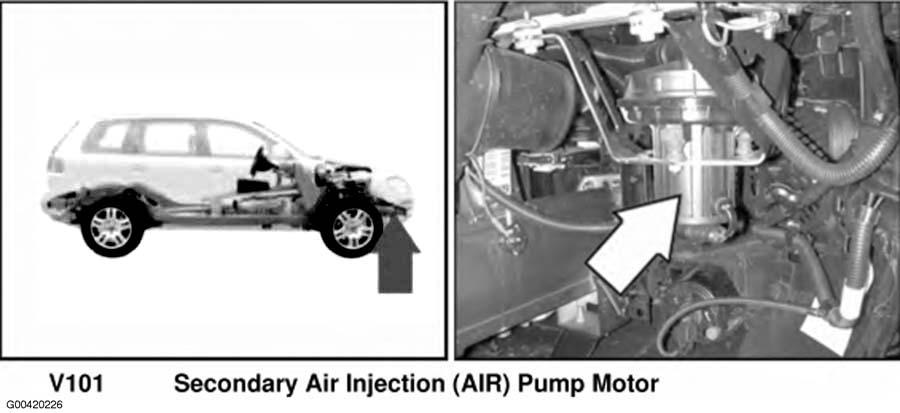

Fig 144: Right Front Of Vehicle

G00420226

Courtesy of VOLKSWAGEN UNITED STATES, INC.

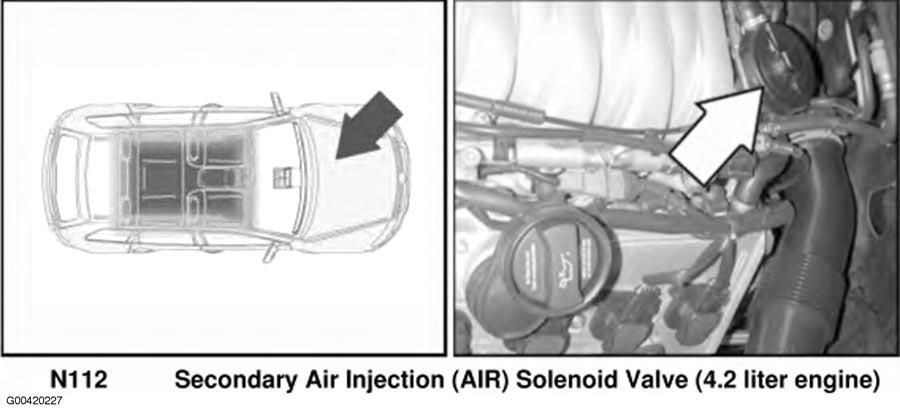

Fig 145: Engine Compartment

G00420227

Courtesy of VOLKSWAGEN UNITED STATES, INC.

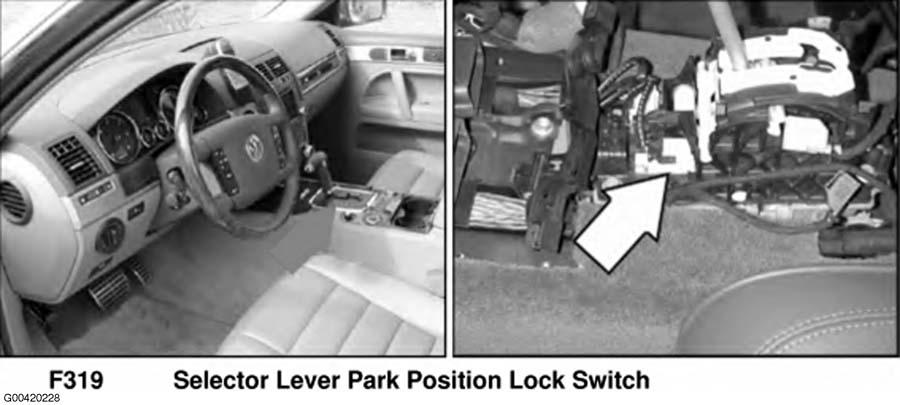

Fig 146: Center Console

G00420228

Courtesy of VOLKSWAGEN UNITED STATES, INC.

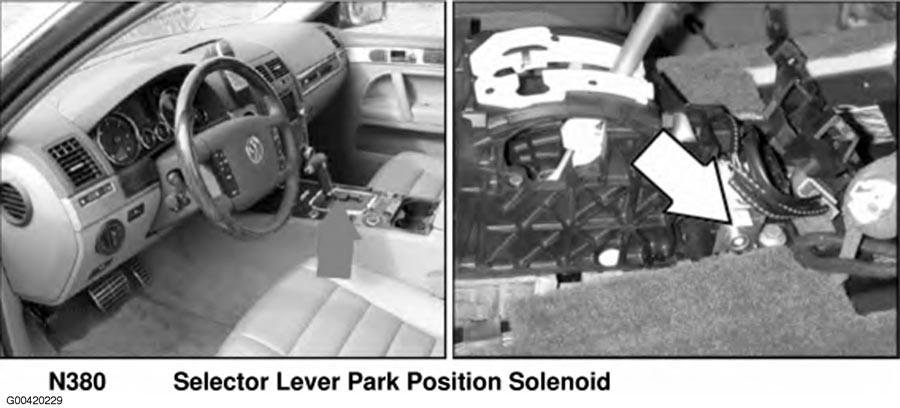

Fig 147: Center Console

G00420229

Courtesy of VOLKSWAGEN UNITED STATES, INC.

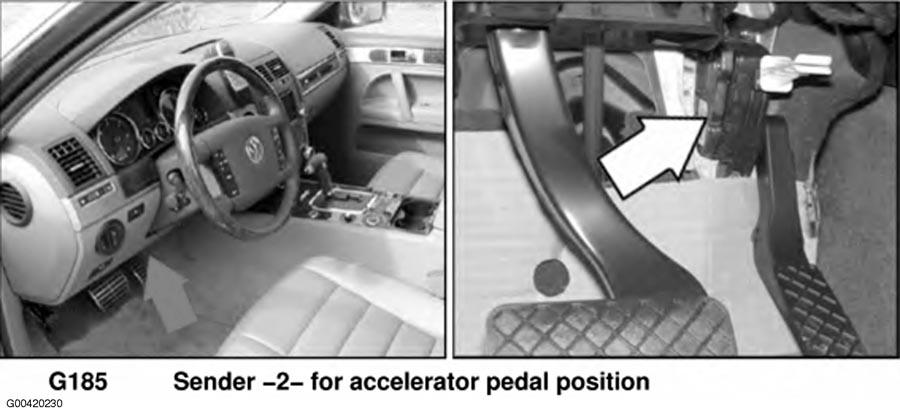

Fig 148: Below Left Side Of Dash

G00420230

Courtesy of VOLKSWAGEN UNITED STATES, INC.

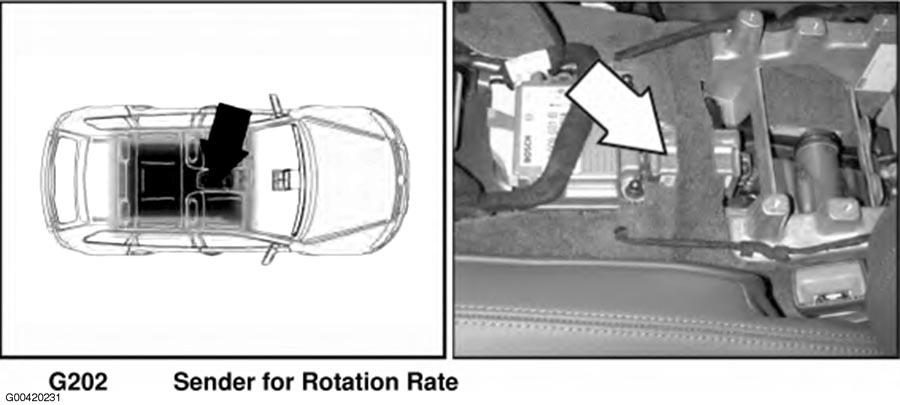

Fig 149: Center Console

G00420231

Courtesy of VOLKSWAGEN UNITED STATES, INC.

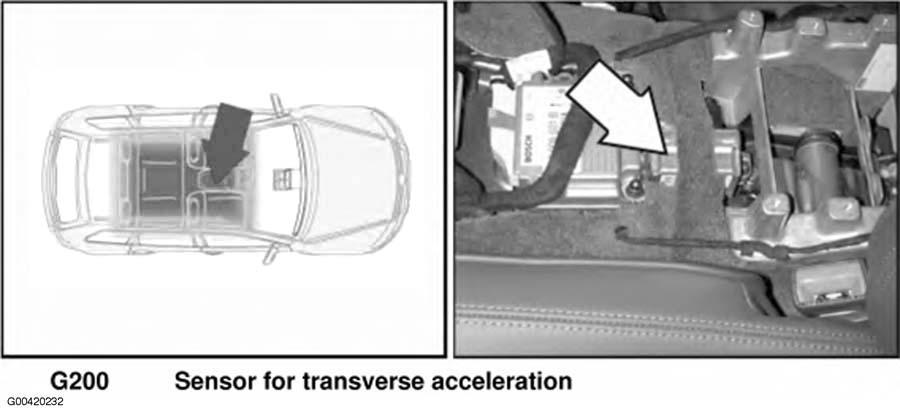

Fig 150: Center Console

G00420232

Courtesy of VOLKSWAGEN UNITED STATES, INC.

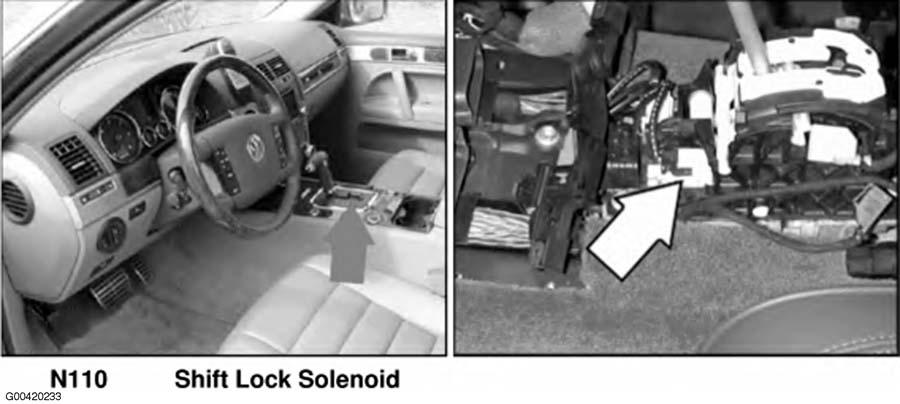

Fig 151: Center Console

G00420233

Courtesy of VOLKSWAGEN UNITED STATES, INC.

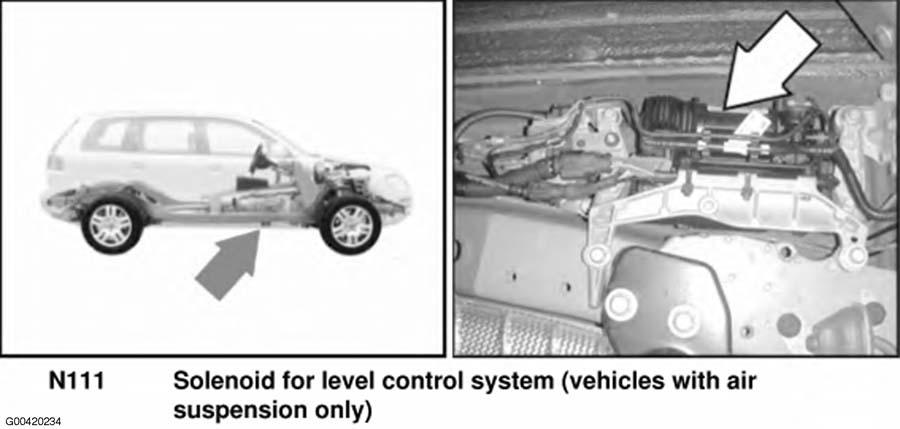

Fig 152: Under Vehicle

G00420234

Courtesy of VOLKSWAGEN UNITED STATES, INC.

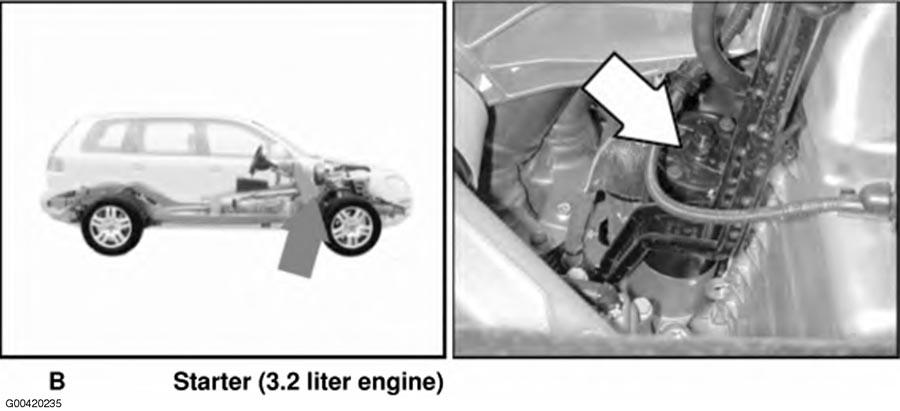

Fig 153: Engine (3.2L)

G00420235

Courtesy of VOLKSWAGEN UNITED STATES, INC.

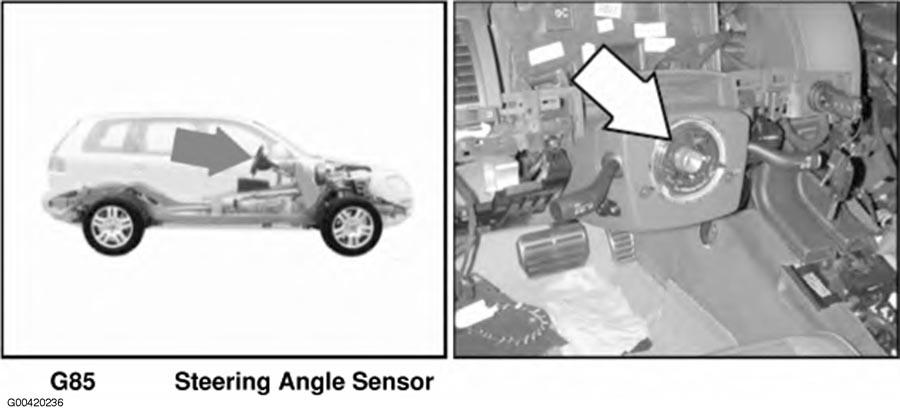

Fig 154: Steering Column

G00420236

Courtesy of VOLKSWAGEN UNITED STATES, INC.

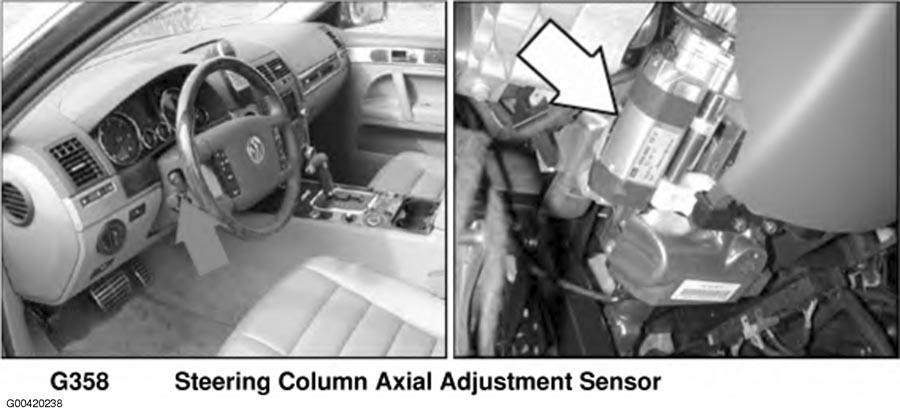

Fig 155: Steering Column

G00420238

Courtesy of VOLKSWAGEN UNITED STATES, INC.

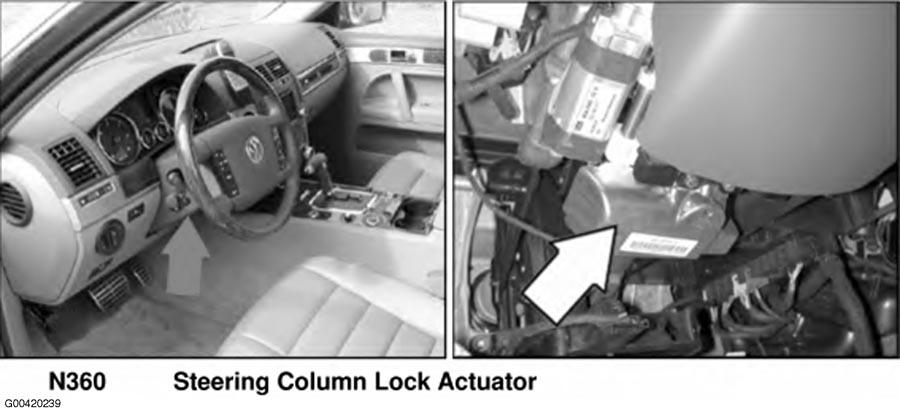

Fig 156: Steering Column

G00420239

Courtesy of VOLKSWAGEN UNITED STATES, INC.

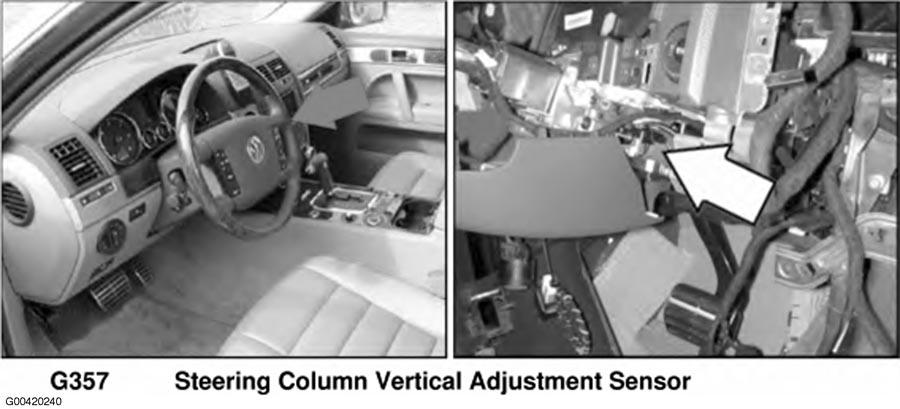

Fig 157: Steering Column

G00420240

Courtesy of VOLKSWAGEN UNITED STATES, INC.

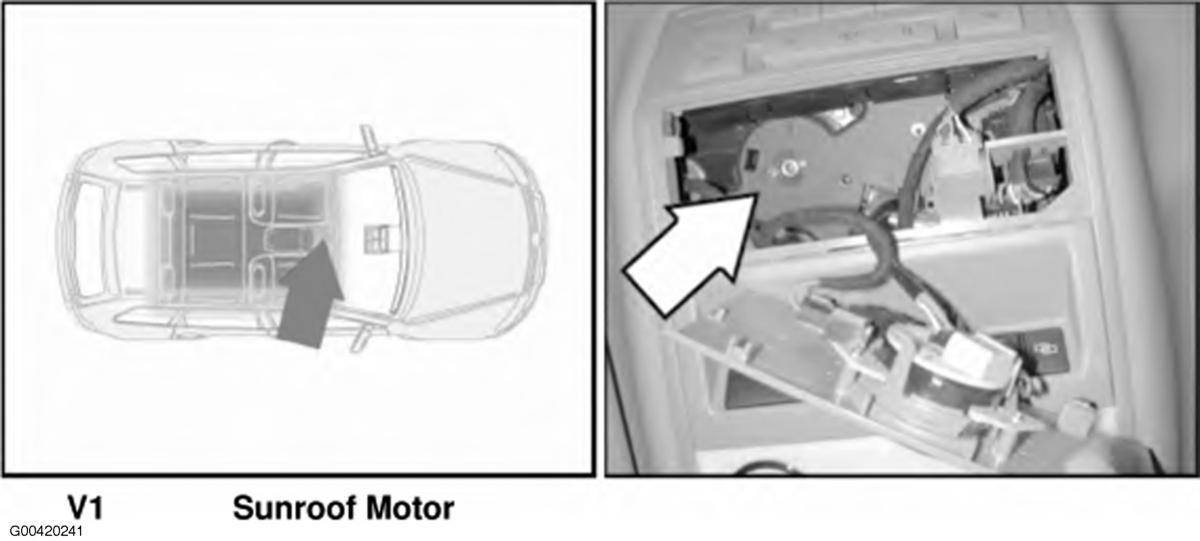

Fig 158: Center Of Roof

G00420241

Courtesy of VOLKSWAGEN UNITED STATES, INC.

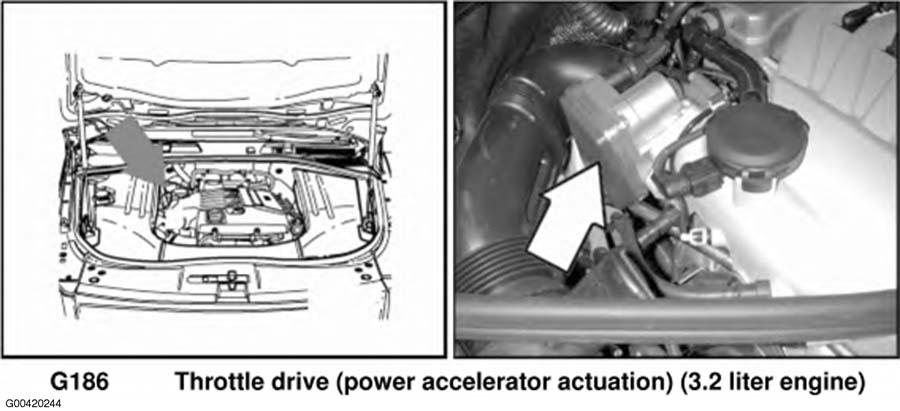

Fig 159: Right Side Of Engine (3.2L)

G00420244

Courtesy of VOLKSWAGEN UNITED STATES, INC.

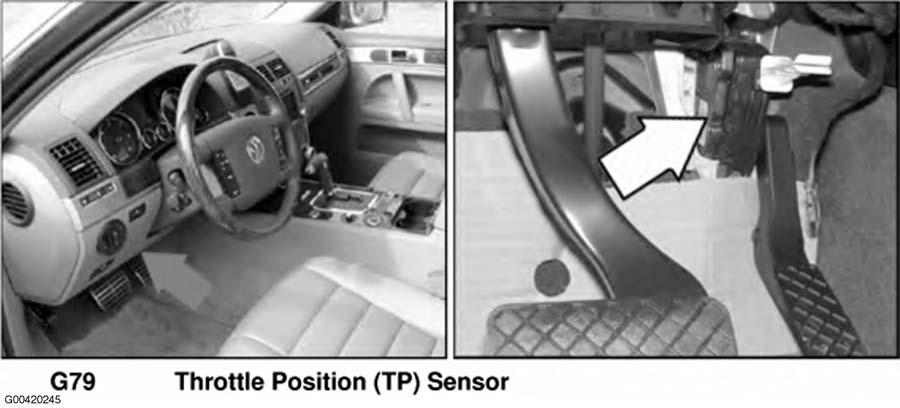

Fig 160: Below Left Side Of Dash

G00420245

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 161: Right Side Of Engine (3.2L)

G00420246

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 162: Under Left Side Of Dash

G00420247

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 163: Right Front Floor

G00420248

Courtesy of VOLKSWAGEN UNITED STATES, INC.

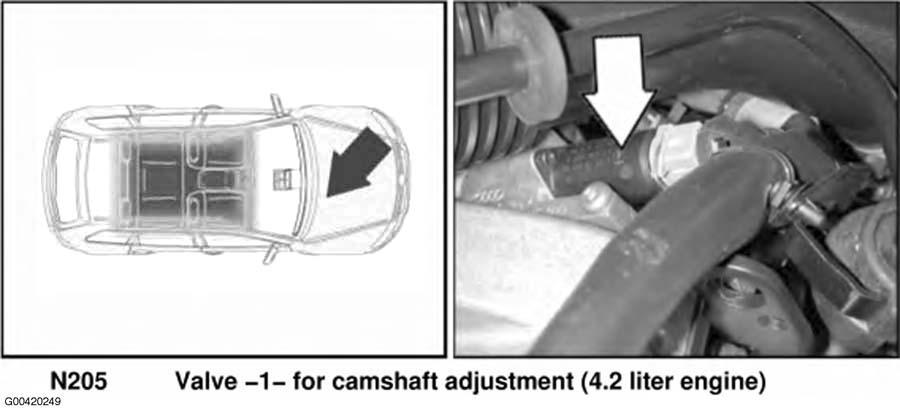

Fig 164: Rear Of Engine Compartment

G00420249

Courtesy of VOLKSWAGEN UNITED STATES, INC.

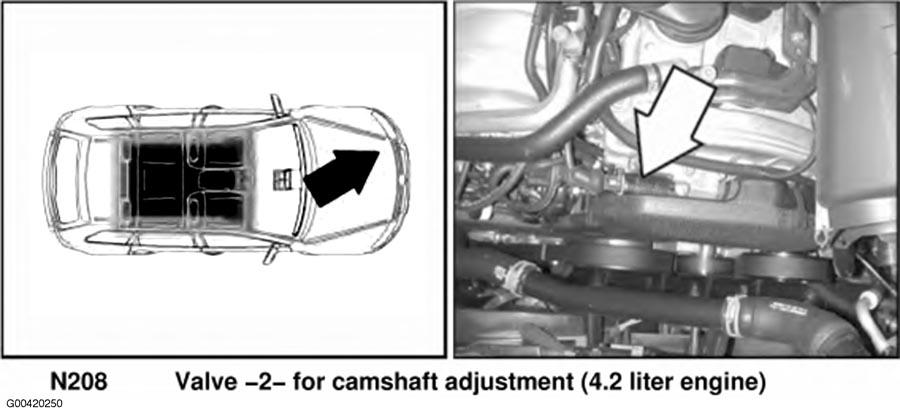

Fig 165: Rear Of Engine Compartment

G00420250

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 166: Below Left Side Of Dash

G00420251

Courtesy of VOLKSWAGEN UNITED STATES, INC.

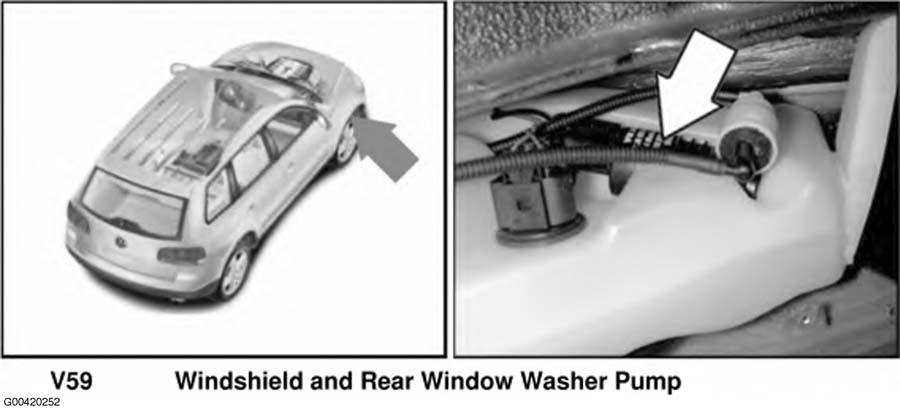

Fig 167: Right Side Of Engine Compartment

G00420252

Courtesy of VOLKSWAGEN UNITED STATES, INC.

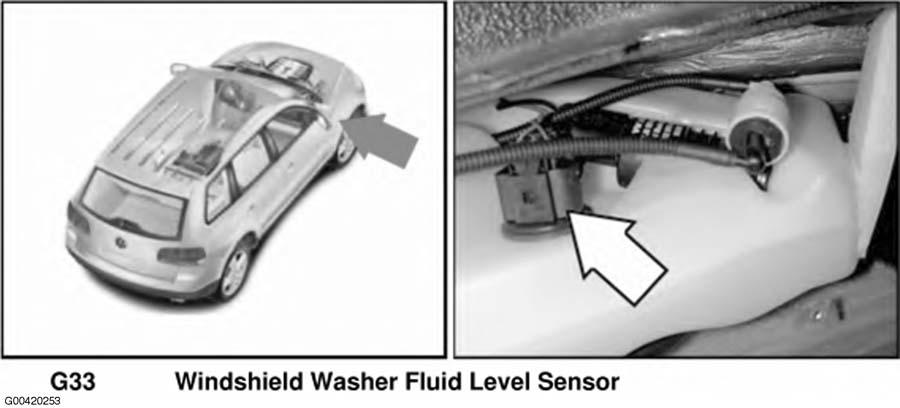

Fig 168: Right Side Of Engine Compartment

G00420253

Courtesy of VOLKSWAGEN UNITED STATES, INC.
