Tire Pressure Monitoring Control Module Connector Side Connector End View (J502)

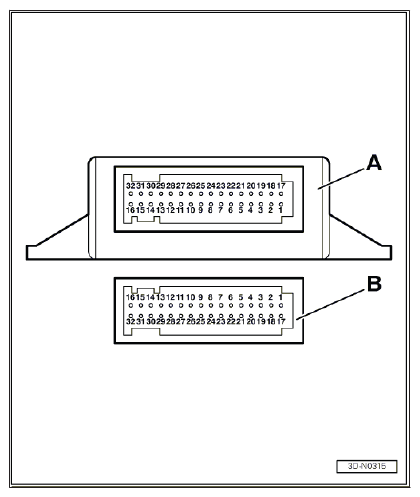

Fig 1: Tire Pressure Monitoring Control Module Connector Side Connector End View (J502)
G10539206Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A Tire Pressure Monitoring Control Module connector side
B Multi-pin connector, 32-pin
