Control Module For Distance Regulation Connector Side Connector End View (J428)

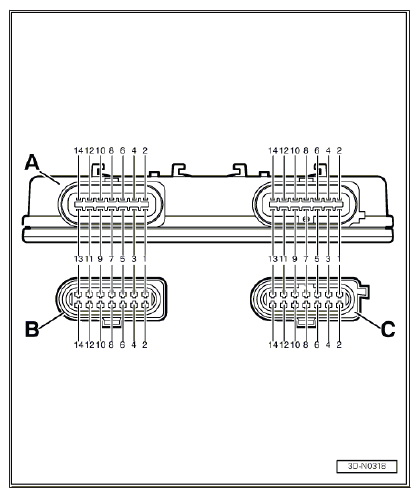

Fig 1: Control Module For Distance Regulation Connector Side Connector End View (J428)
G10539208Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A Control Module for Distance Regulation connector side
B Multi-pin connector, 14-pin
C Multi-pin connector, 14-pin
