Final Drive

Raise and support vehicle. Remove filler plug on side of final drive. See Fig 1 . Gear oil level should be at lower edge of hole. If fluid is required, add G 50, SAE 75W-90 synthetic gear oil (G 052 145 S2). Install filler plug and tighten to 15 ft. lbs. (20 N.m).

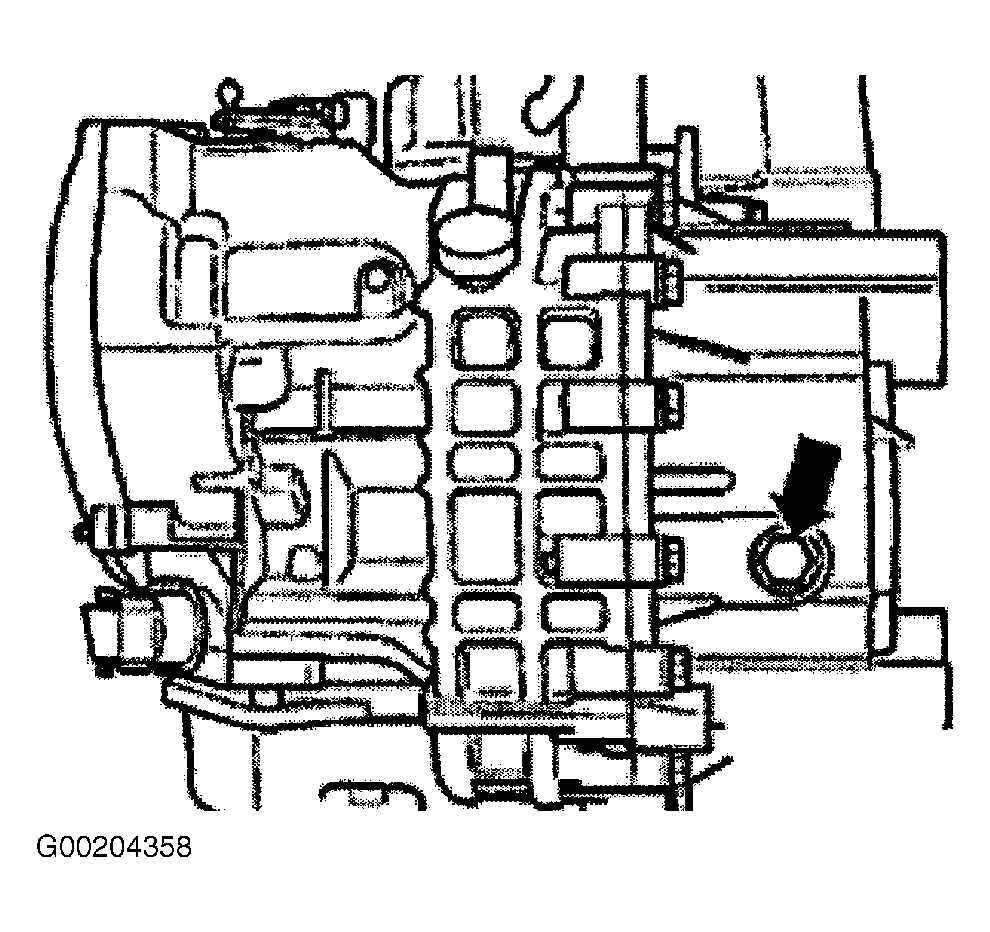

Fig 1: Checking Final Drive Fluid Level

Courtesy of VOLKSWAGEN UNITED STATES, INC.
