Front Axle

NOTE: Camber adjustment bolt connection is shown without wheel installed.

Loosen bolt "a". See Fig 1 . To loosen and tighten with wheel installed, turn steering as necessary.
Loosen nut "b". Modify 3252 box wrench (46 mm) as shown in illustration. See Fig 2 . Adjust eccentric socket "A" until the specified value has been reached using special tool (3252A). See Fig 3 .
While counter holding eccentric nut, tighten nut "b" to specification. See TORQUE SPECIFICATIONS . Tighten bolt "a" to specification. After fasteners are torqued, recheck all wheel alignment settings and readjust as necessary.

Fig 1: Locating Camber Adjusting Fasteners

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Modifying Special Tool 3252

Courtesy of VOLKSWAGEN UNITED STATES, INC.

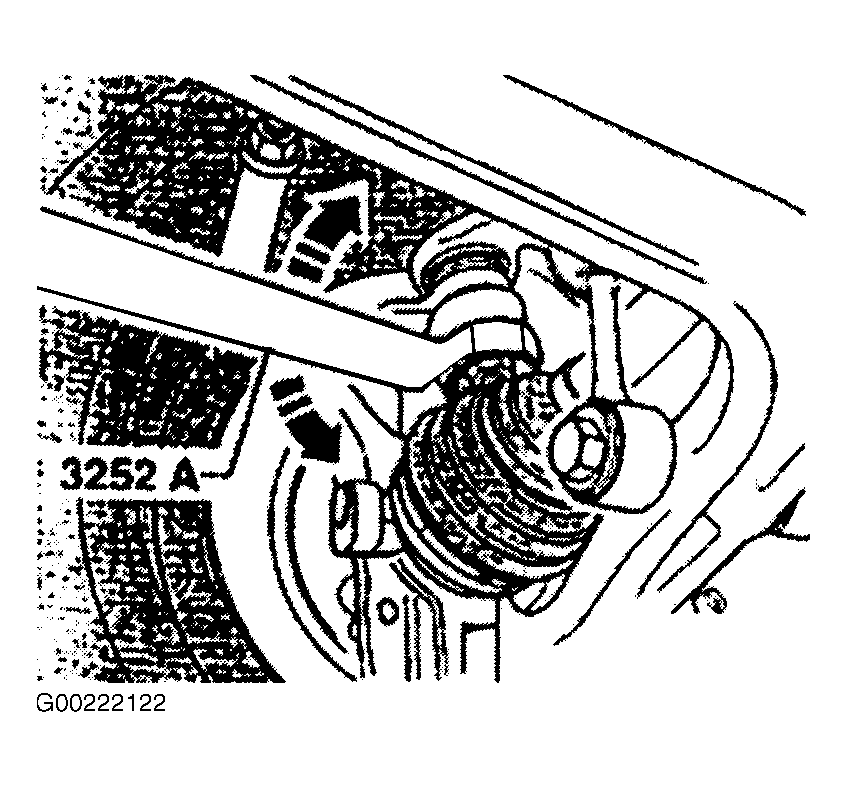

Fig 3: Adjusting Front Axle Camber (EuroVan)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
