Vacuum Diagrams: Introduction: EUROVAN

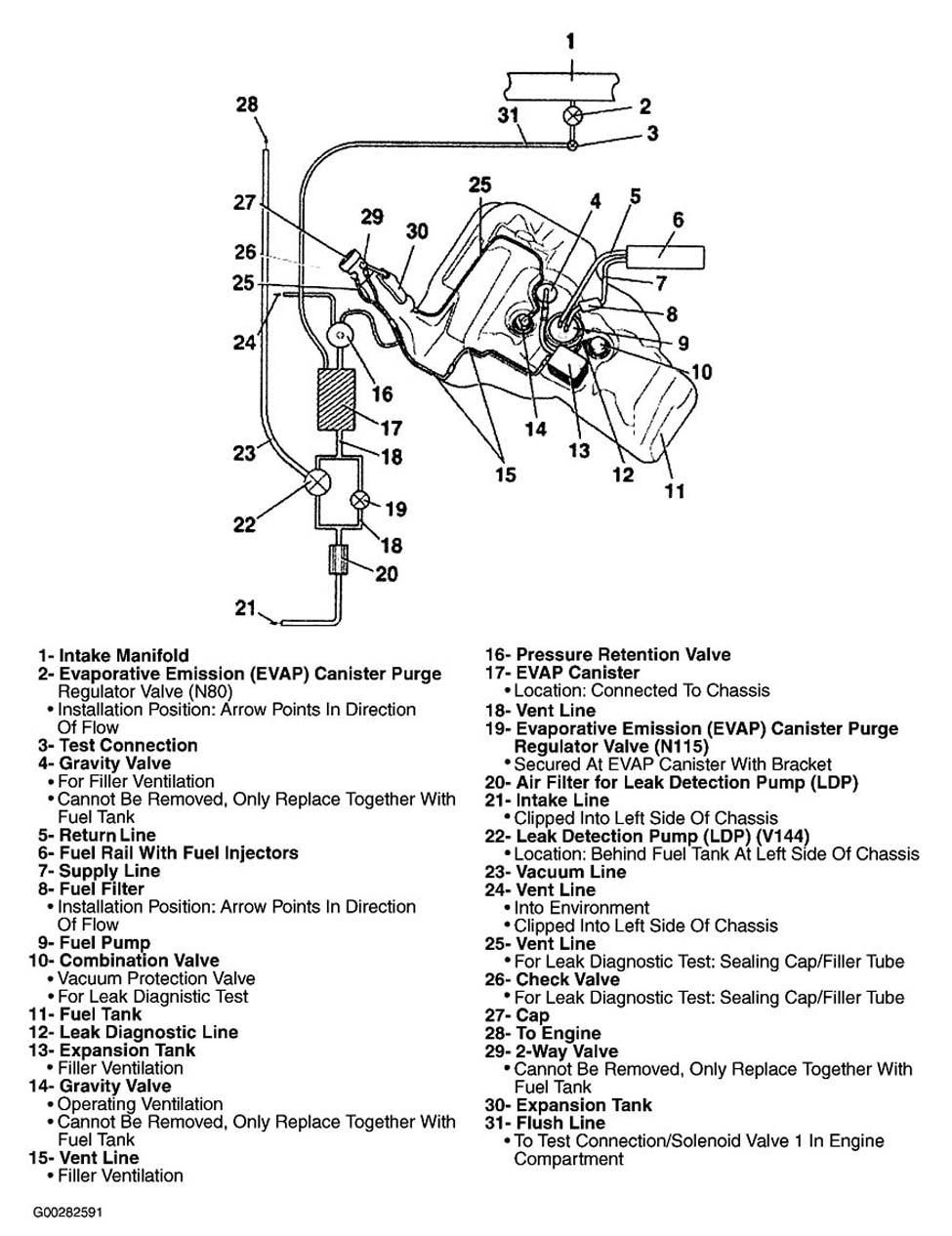

Fig 1: Vacuum Diagram EVAP System
G00282591Courtesy of VOLKSWAGEN UNITED STATES, INC.

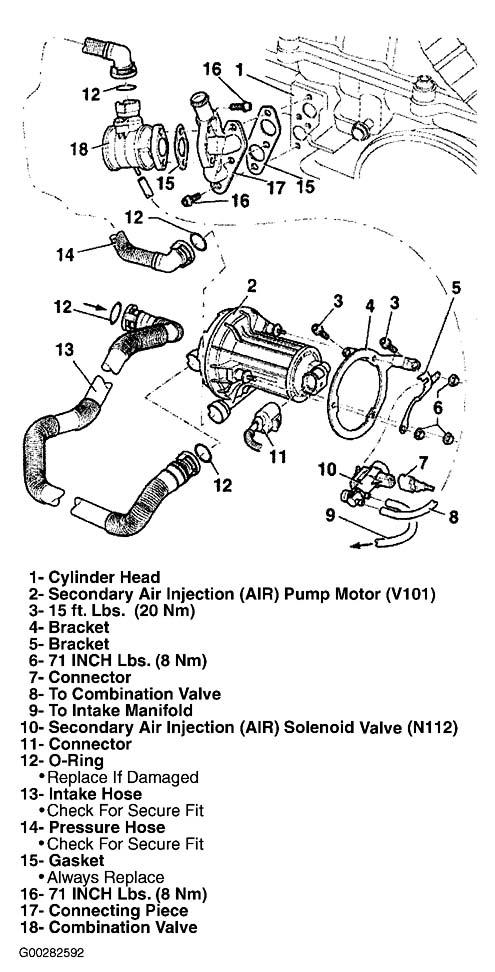

Fig 2: Vacuum Diagram Secondary Air Injection System
G00282592Courtesy of VOLKSWAGEN UNITED STATES, INC.
