Drive Belt Routing

NOTE: Serpentine belt is self-adjusting. For drive belt routing, see Fig 1 -Fig 4 .

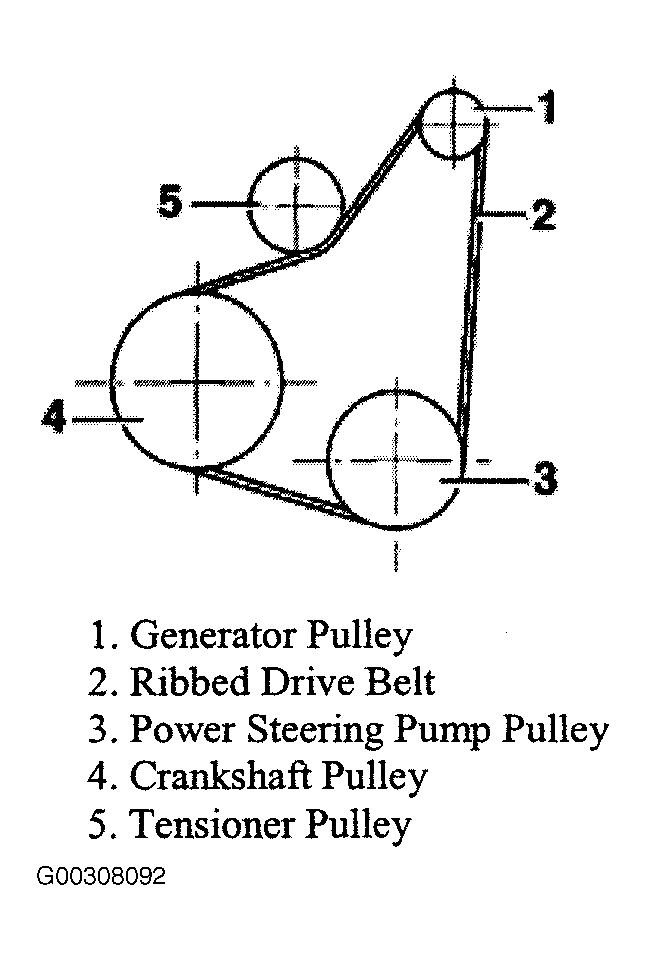

Fig 1: Drive Belt Routing (2.5L, 5 Cyl. - Without A/C)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

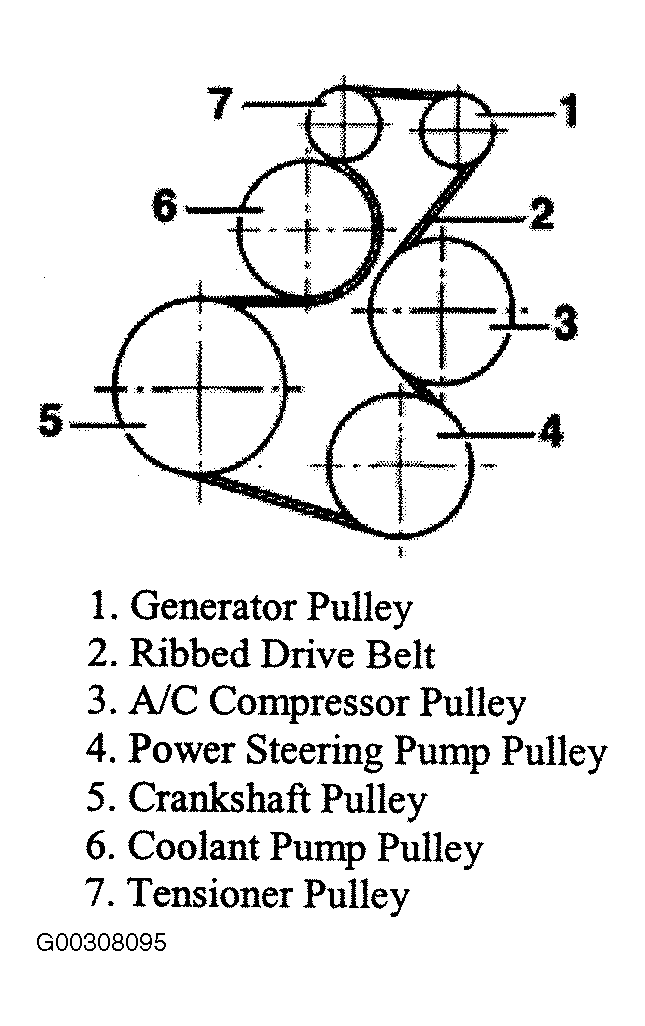

Fig 2: Drive Belt Routing (2.5L, 5 Cyl. - With A/C)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

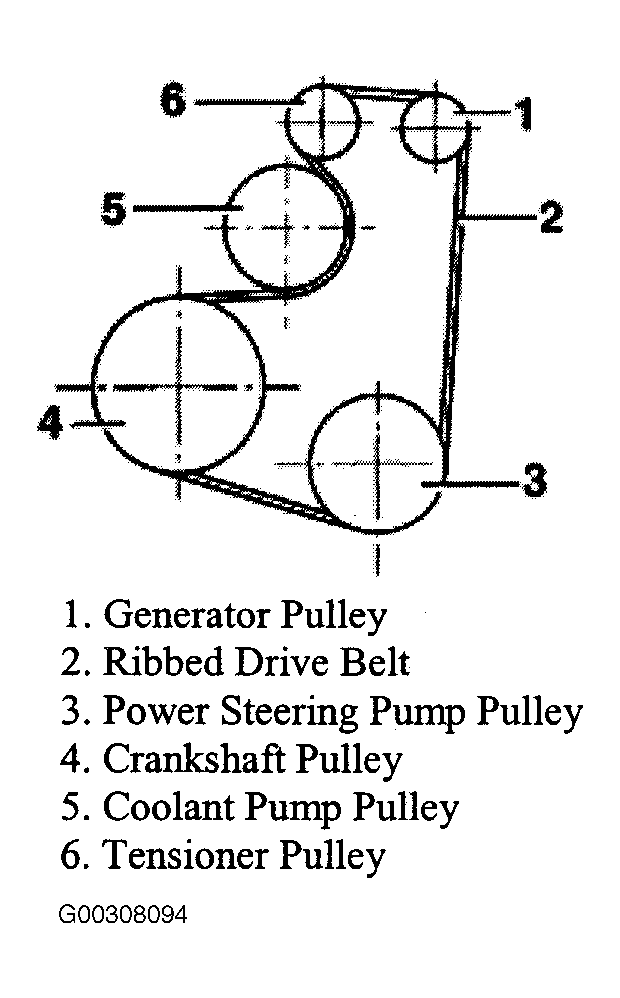

Fig 3: Drive Belt Routing (2.8L VR6 - Without A/C)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

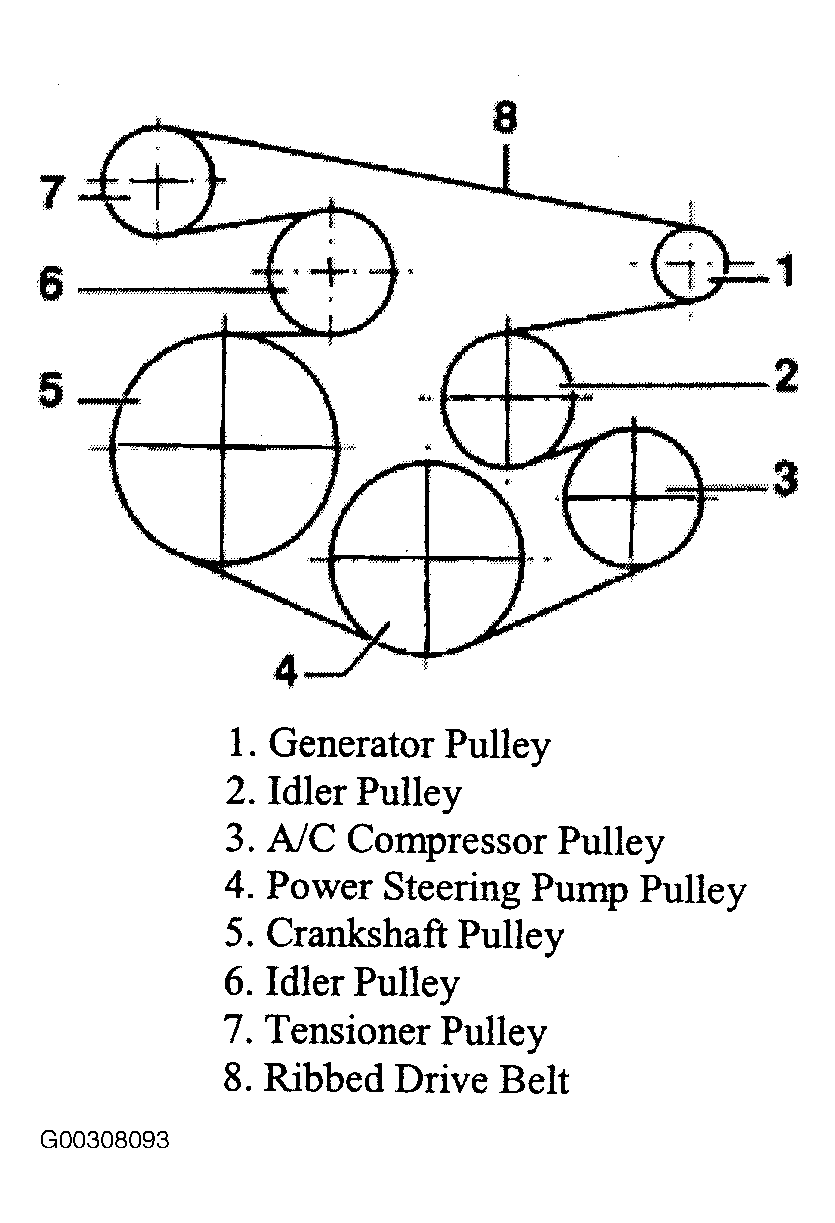

Fig 4: Drive Belt Routing (2.8L VR6 - With A/C)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
