Read Measuring Value Blocks, Designations

Enter -0-, -0- and -1- for "Display group number 001" and Q to confirm input.

NOTE: The following display group numbers are for example only.

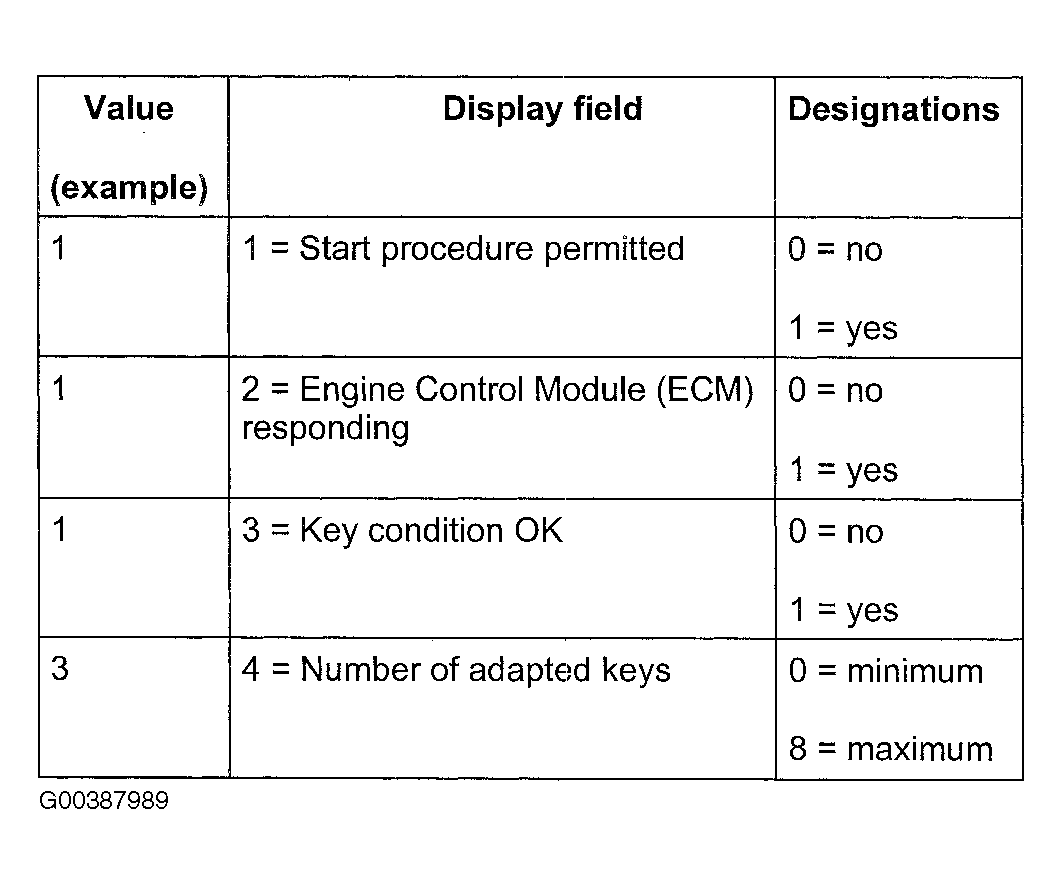

Fig 1: Read Measuring Value Block Display Group 001

Courtesy of VOLKSWAGEN UNITED STATES, INC.

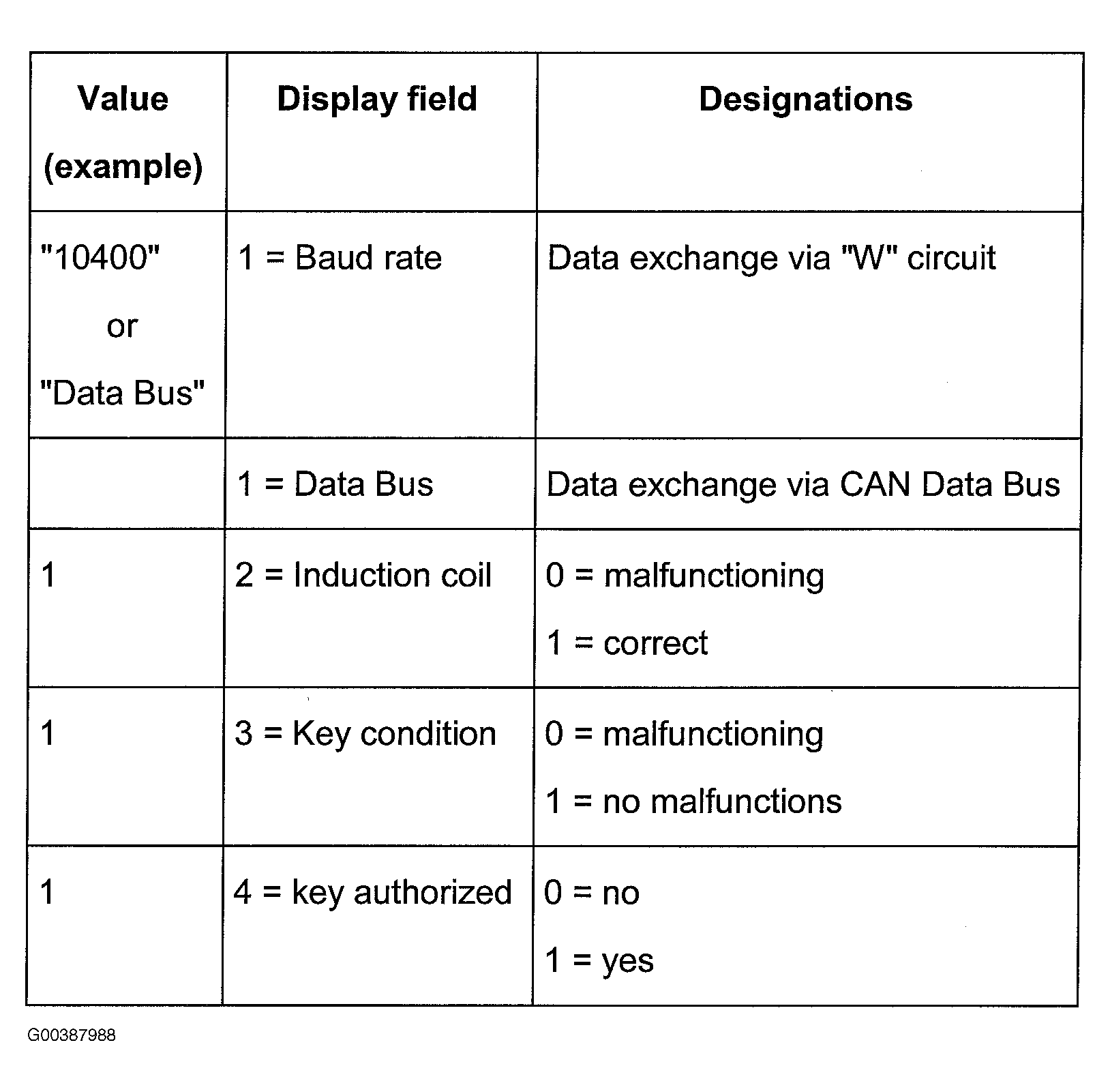

Fig 2: Read Measuring Value Block Display Group 002

Courtesy of VOLKSWAGEN UNITED STATES, INC.

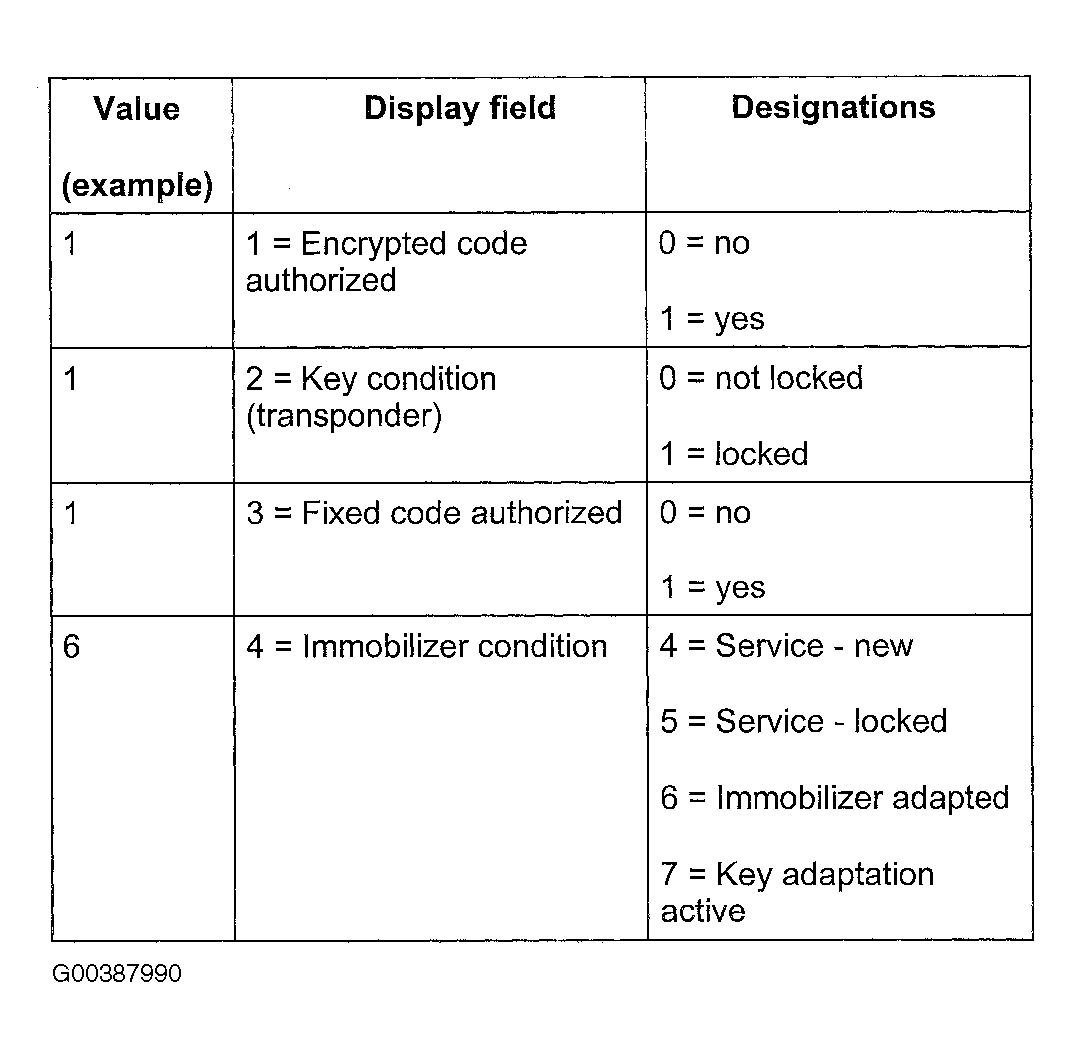

Fig 3: Read Measuring Value Block Display Group 003

Courtesy of VOLKSWAGEN UNITED STATES, INC.

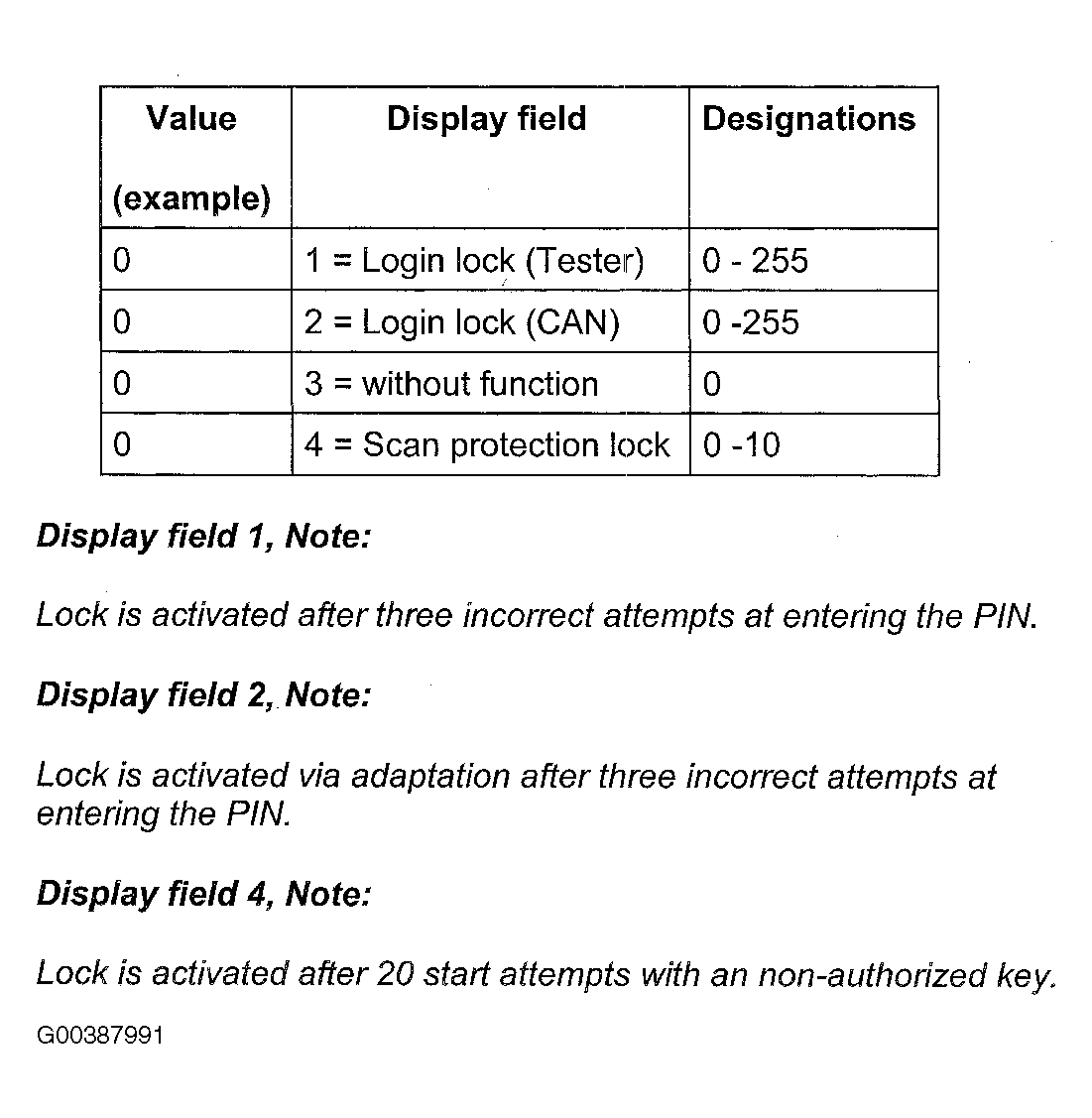

Fig 4: Read Measuring Value Block Display Group 004

Courtesy of VOLKSWAGEN UNITED STATES, INC.

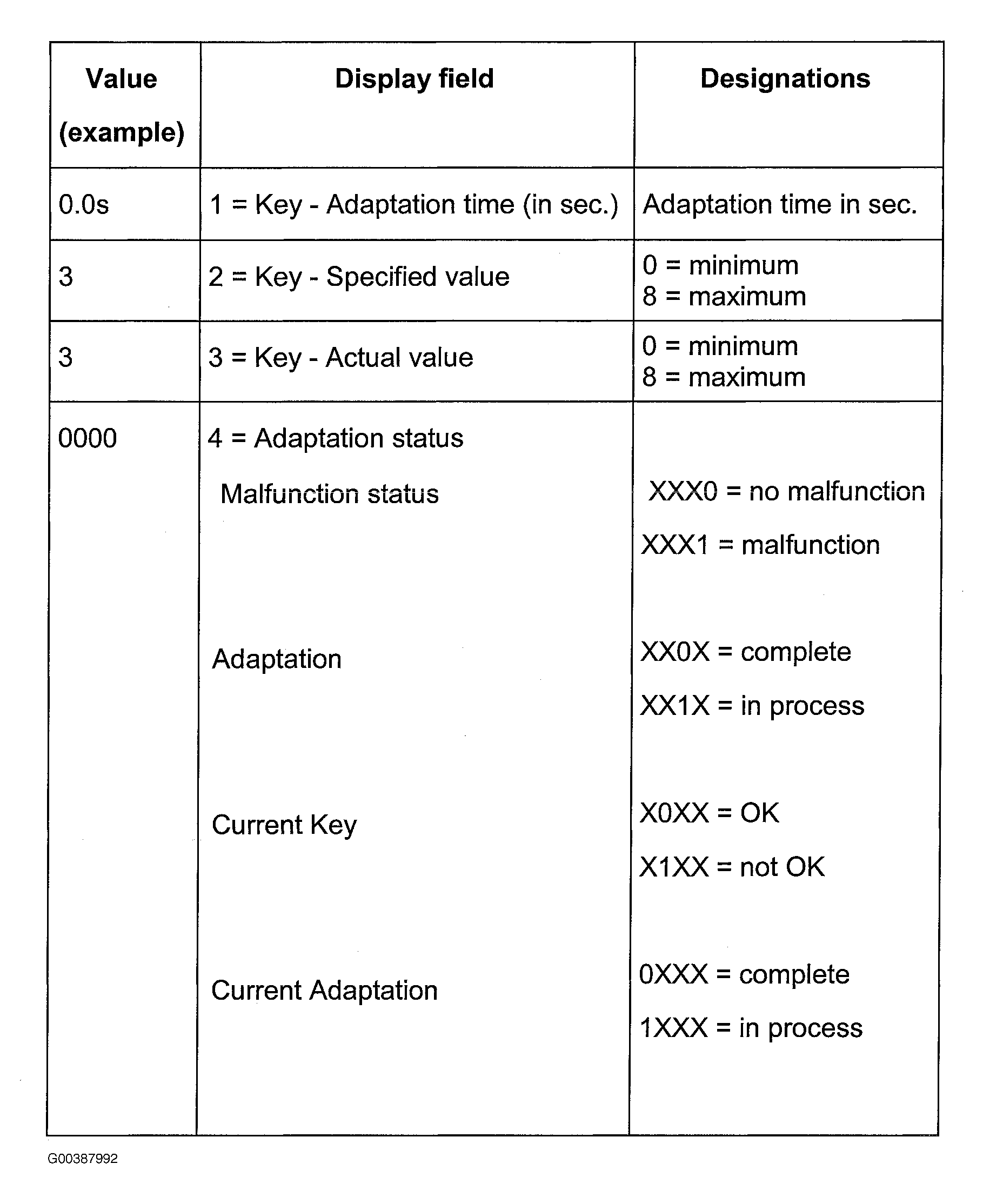

Fig 5: Read Measuring Value Block Display Group 005

Courtesy of VOLKSWAGEN UNITED STATES, INC.
