Windows, removing and installing: Tools

• Cartridge heater VAG 1939
Fig 1: Identifying VAG 1939
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Winding device VAG 1654
Fig 2: Identifying VAG 1654
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Cutting thread 357 853 999
• Cutting wire 357 845 955 (not shown)
• Blade with stop roller VAG 1561/10
Fig 3: Identifying VAG 1561/10
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Electric cutter VAG 1561

For cutting back adhesive on window glass

• Scraping blade VAG 1561/8

For cutting back adhesive on window flange

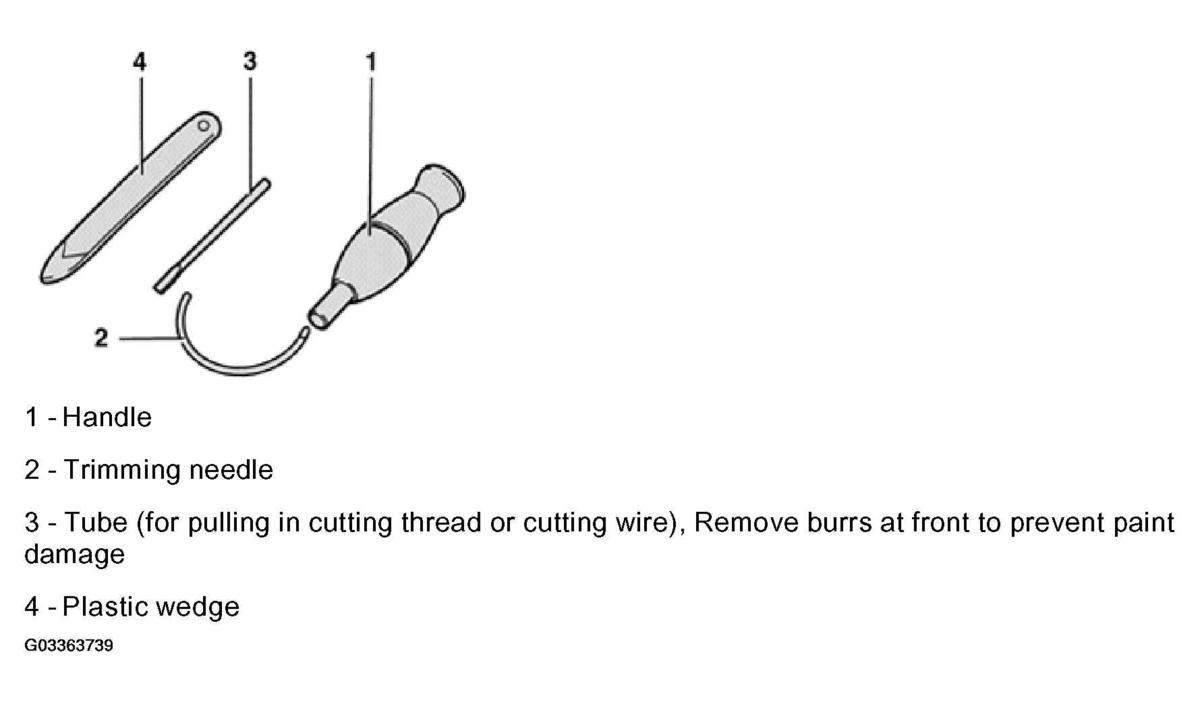

• Repair kit VAG 1755

1. - Handle
2. - Trimming needle
3. - Tube (for pulling in cutting thread or cutting wire), Remove burrs at front to prevent paint damage
4. - Plastic wedge

Handle -1- and trimming needle -2- are commercially available tools

Fig 4: Identifying Repair Kit VAG 1755

Courtesy of VOLKSWAGEN OF AMERICA, INC.

• Cartridge gun VAG 1628
• Double suction cup VAG 1344
Fig 5: Identifying Cartridge Gun VAG 1628 & Double Suction Cup VAG 1344
Courtesy of VOLKSWAGEN OF AMERICA, INC.
