Outside (Ambient) Temperature Display Checking

Tools required:

NOTE: Display range for outside (ambient) temperature is from -40° F to 122° F (-40°C to 50° C).

If temperature sensor is not connected, "-40°" is displayed.

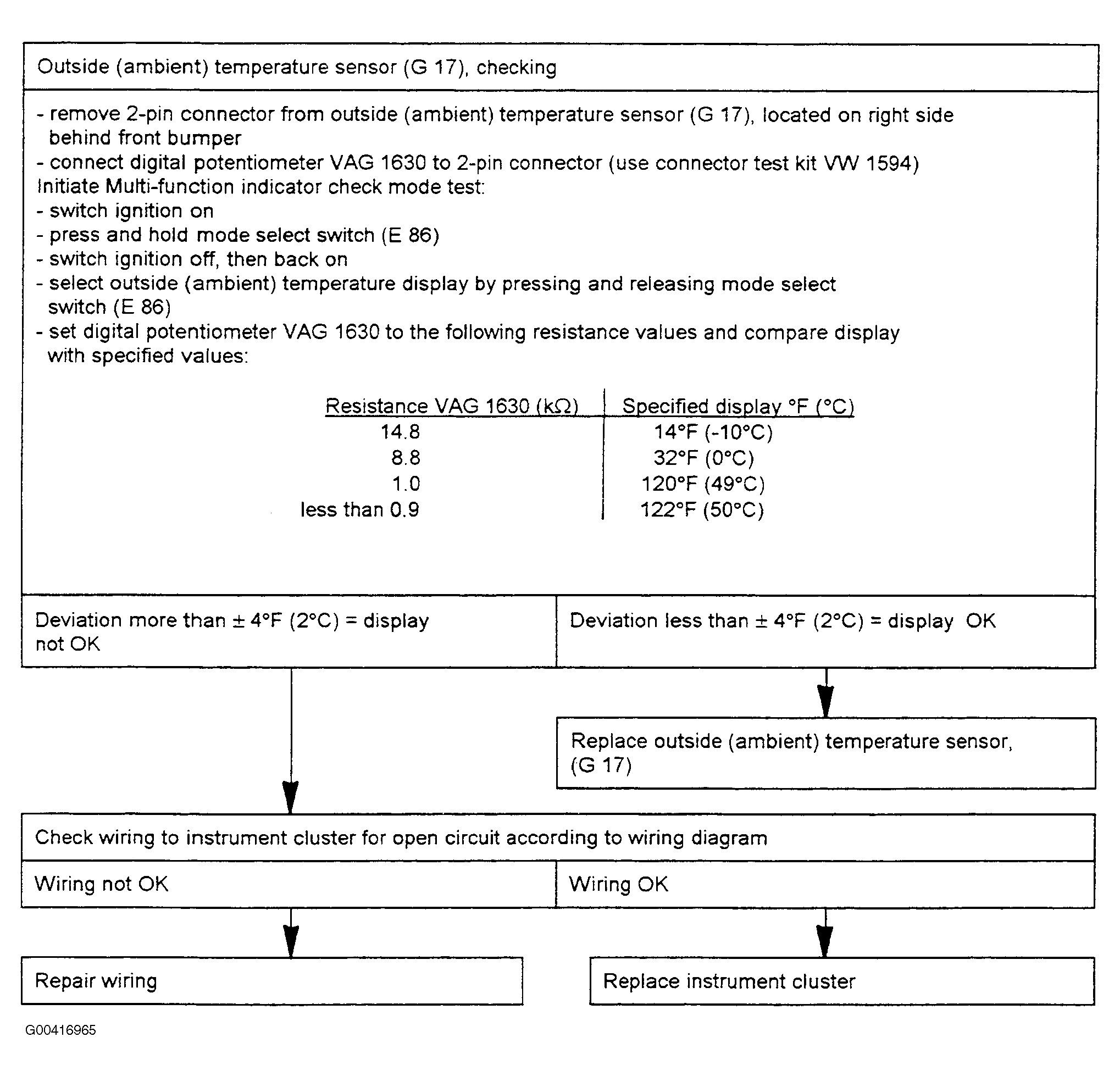

Fig 1: Outside Temperature Display Troubleshooting

Courtesy of VOLKSWAGEN UNITED STATES, INC.
