Oil Temperature Display Checking

Tools required:

Instrument tester VW 1301
Connector test kit VW 1594

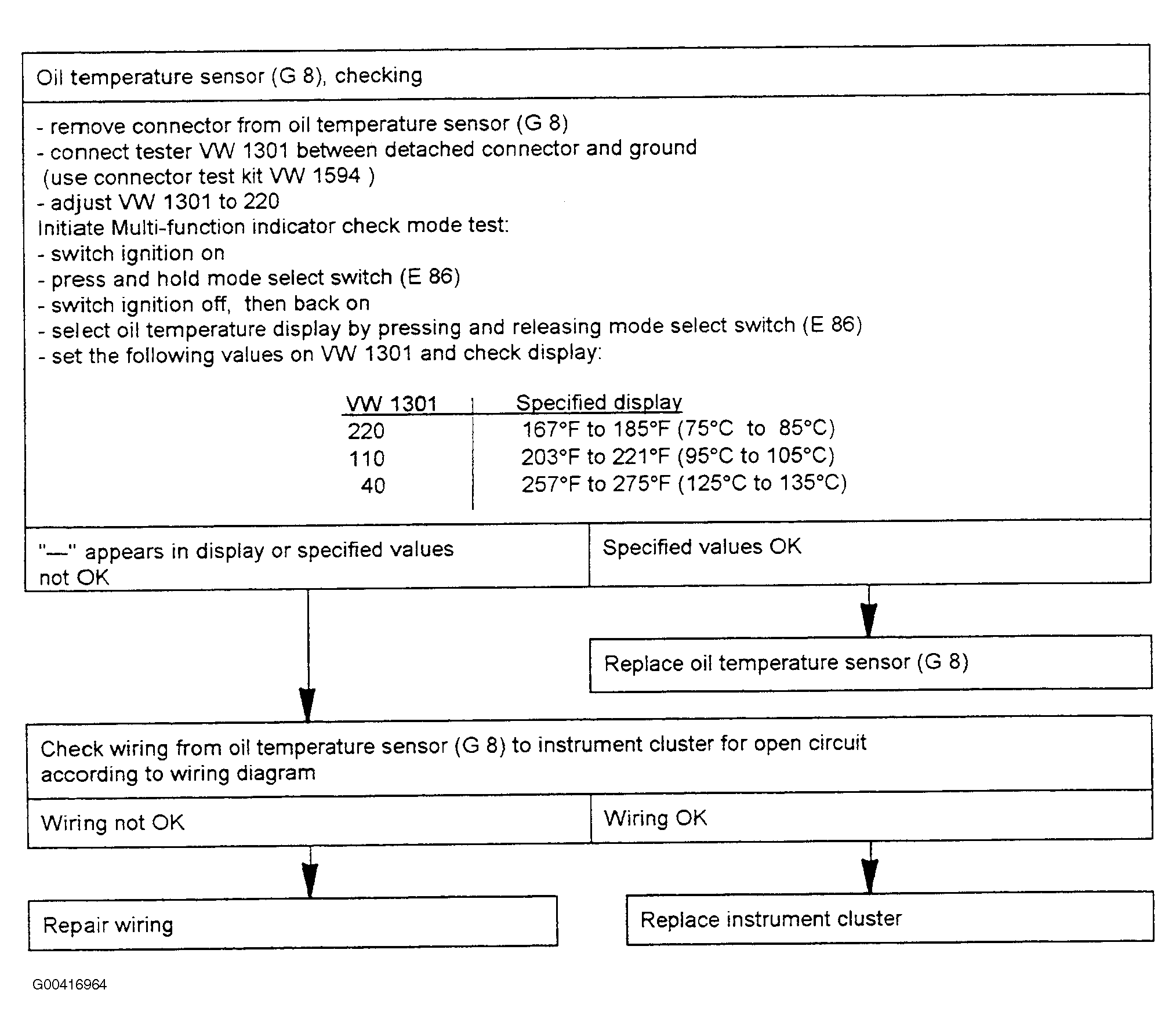

Fig 1: Oil Temperature Display Troubleshooting

G00416964

Courtesy of VOLKSWAGEN UNITED STATES, INC.
