Adjusting window guide

Side trim and sealing film removed.

• Loosen window rear guide bolts -1 and 2-.
• Loosen bolts -3 and 4-.

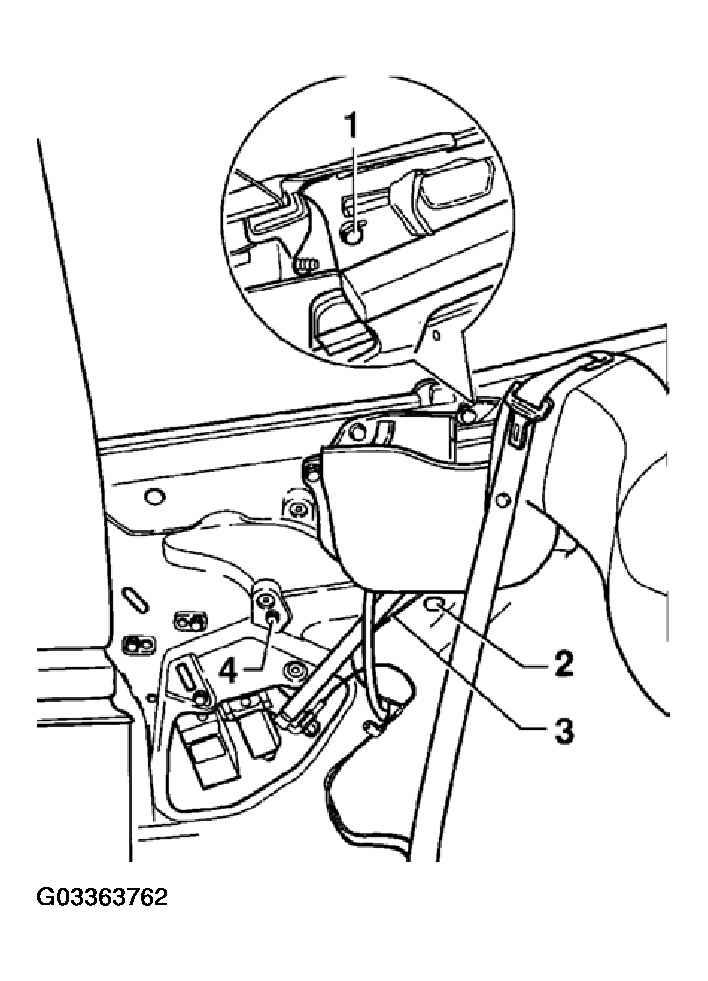

Fig 1: Loosening Window Rear Guide Bolts
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Raise side window to approximately 50 mm (1.97 in.) below raised position (for better stabilization).
• Press side window into window guide -arrow B -.

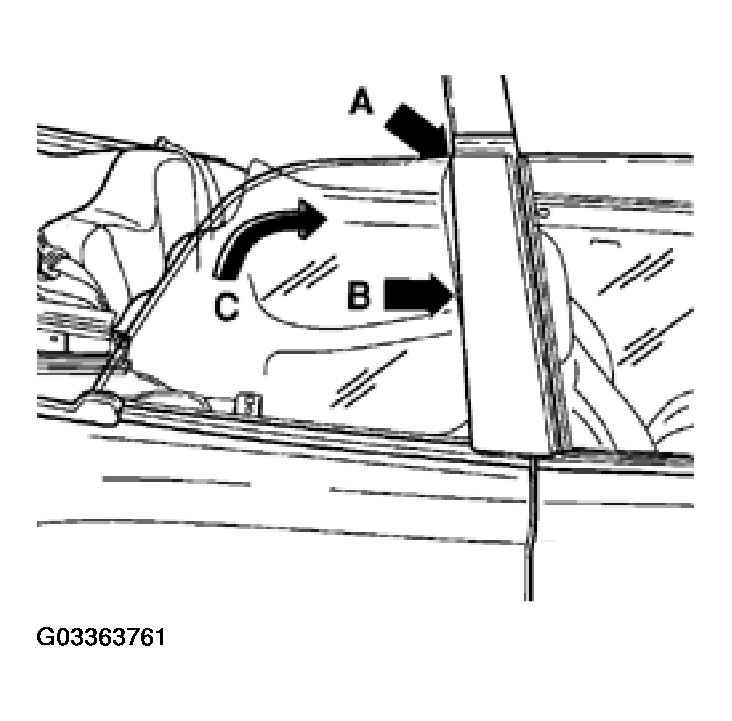

Fig 2: Pressing Side Window Into Window Guide
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Press window guide top lightly against window.
• Tighten bolt -1-.
  • Tightening torque: 10 N.m (0.393 in.)
Fig 3: Tightening Window Rear Guide Bolt
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Lower side window but not completely, press lower window guide lightly against window and tighten bolt -2-.
  • Tightening torque: 10 N.m (0.393 in.)
