Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||||
|---|---|---|---|---|---|---|
| Axle Shaft-To-Joint Flange Bolt (1) | ||||||
| M10 X 48 | 59 (80) | |||||
| M12 X 1.5 X 55 | 74 (100) | |||||
| Axle Shaft-To-Wheel Hub (1) | ||||||
| Step 1 | 111 (150) | |||||
| Step 2 | Turn An Additional 90 Degrees | |||||

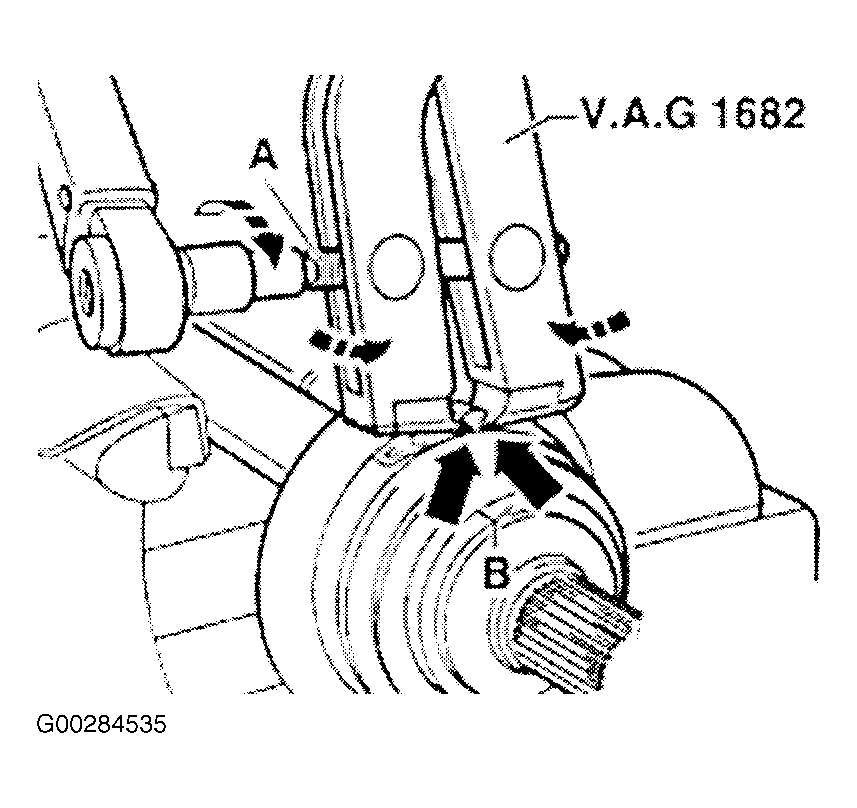

| Large Diameter Boot Clamp (Stainless Steel) (2) | 18 (25) | |||||
| Pendulum Support-To-Transmission (Automatic) (1) | ||||||
| Step 1 | 59 (80) | |||||
| Step 2 | Turn An Additional 90 Degrees | |||||
| Shock Absorber-To-Control Arm | 118 (160) | |||||
| Wheel Bearing Housing-To-Ball Joint (1) | ||||||
| Step 1 | 66 (90) | |||||
| Step 2 | Turn An Additional 90 Degrees | |||||
| Wheel Lug Bolt (1) | 125 (170) | |||||
|
||||||
