Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Part of ABS hydraulic control unit, left side of engine compartment, left side of vacuum brake booster. |
| ABS Hydraulic Control Unit | On left side of engine compartment, on left side of vacuum brake booster. |
| Air Bag Control Module | On center floor tunnel, below heater core housing. |
| Comfort System Central Control Module | Below left side of dash, left of steering column. |

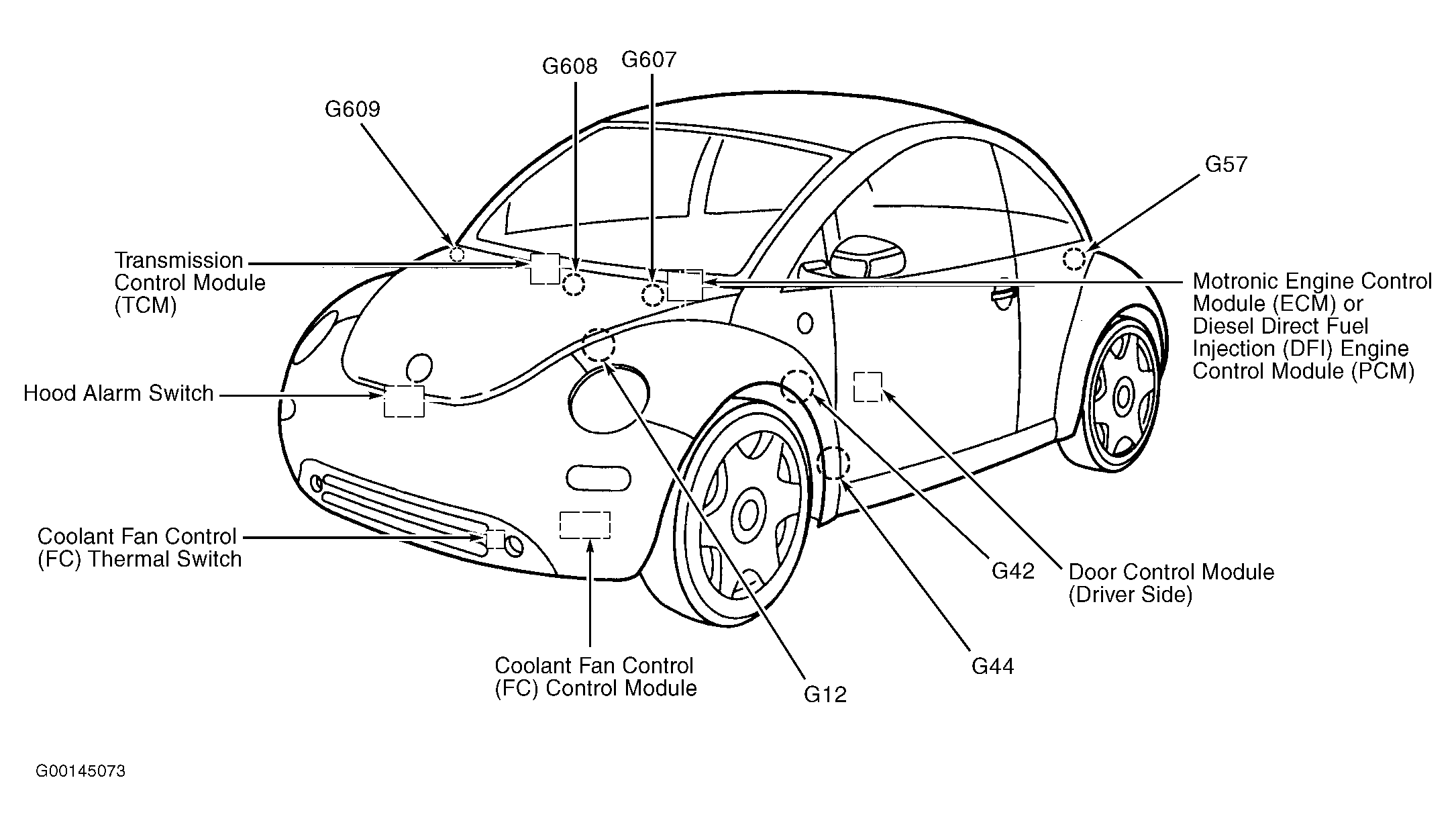

| Coolant Fan Control (FC) Control Module | On lower left front of engine compartment, to left of radiator. See Figure . |
| Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) | Below left side of dash panel cover. See Figure . |
| Door Control Module (Driver Side) | In driver's door, integral with window motor. See Figure . |
| Door Control Module (Passenger Side) | In passenger's door, integral with window motor. |
| Motronic Engine Control Module (ECM) | Below left side of dash panel cover. See Figure . |

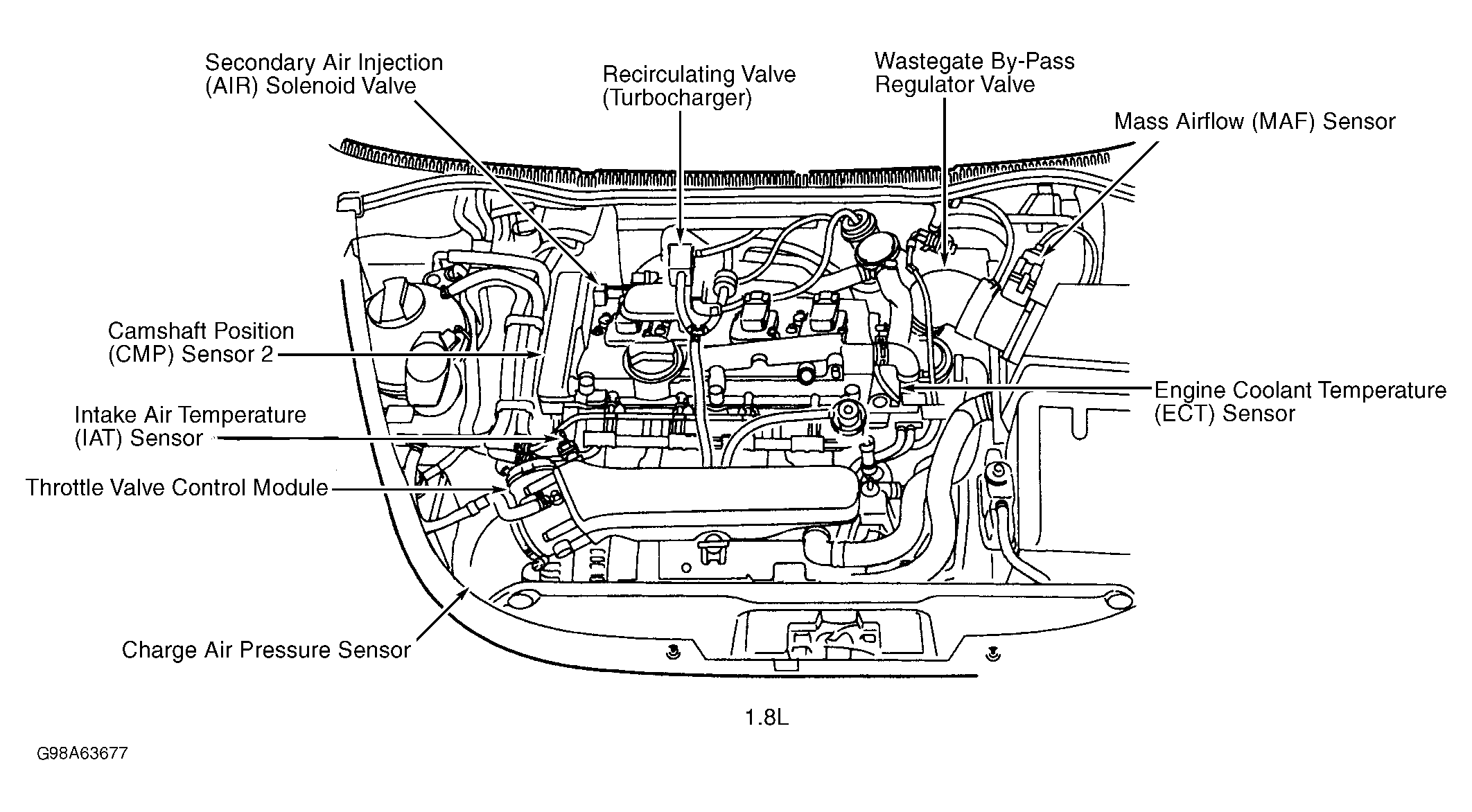

| Throttle Valve Control Module (1.8L) | On throttle body, on left side of engine. See Figure . |

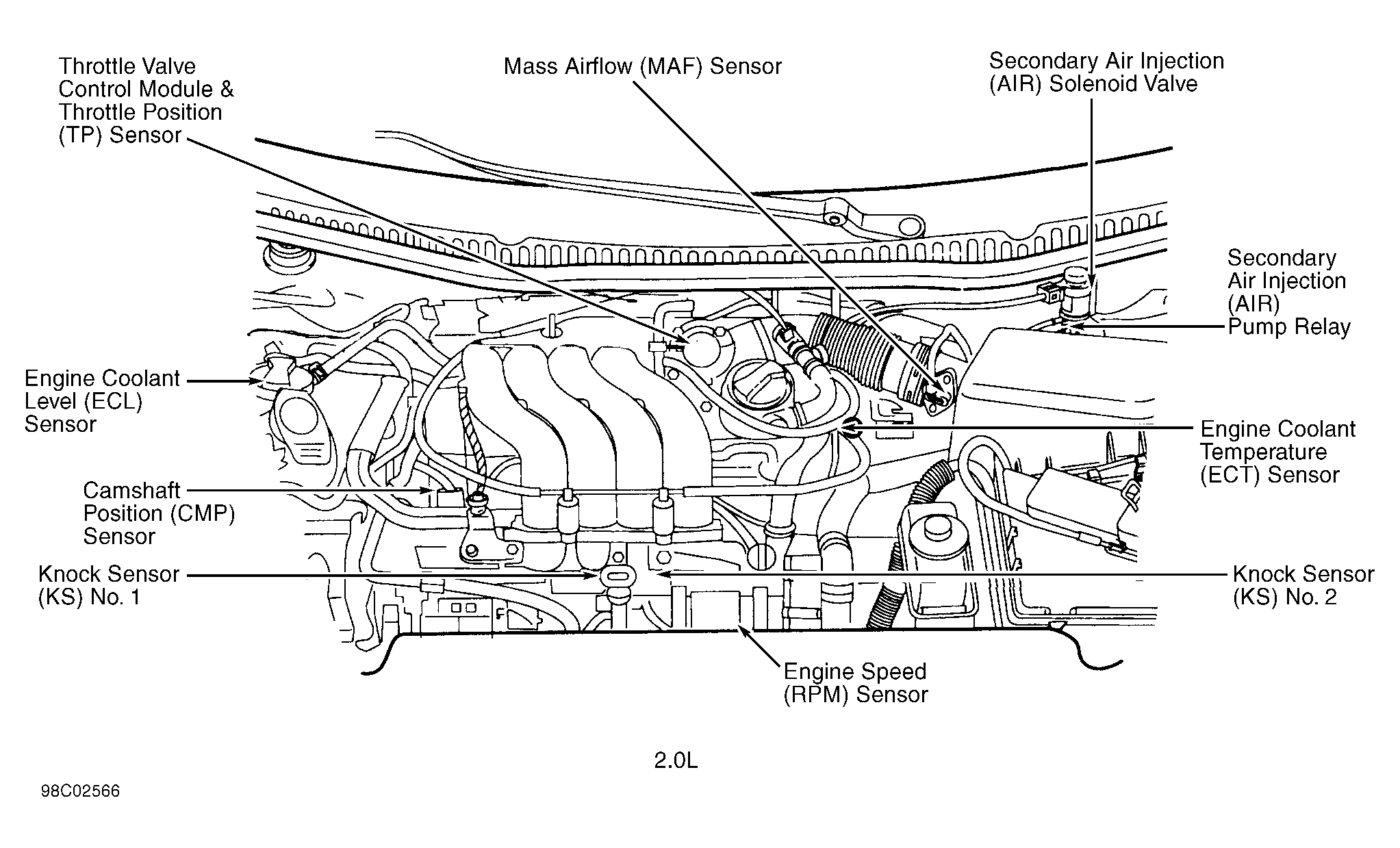

| Throttle Valve Control Module (2.0L) | On throttle body. See Figure . |
| Transmission Control Module (TCM) | Below right side of dash & defroster duct. See Figure . |
