Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (1.8L)

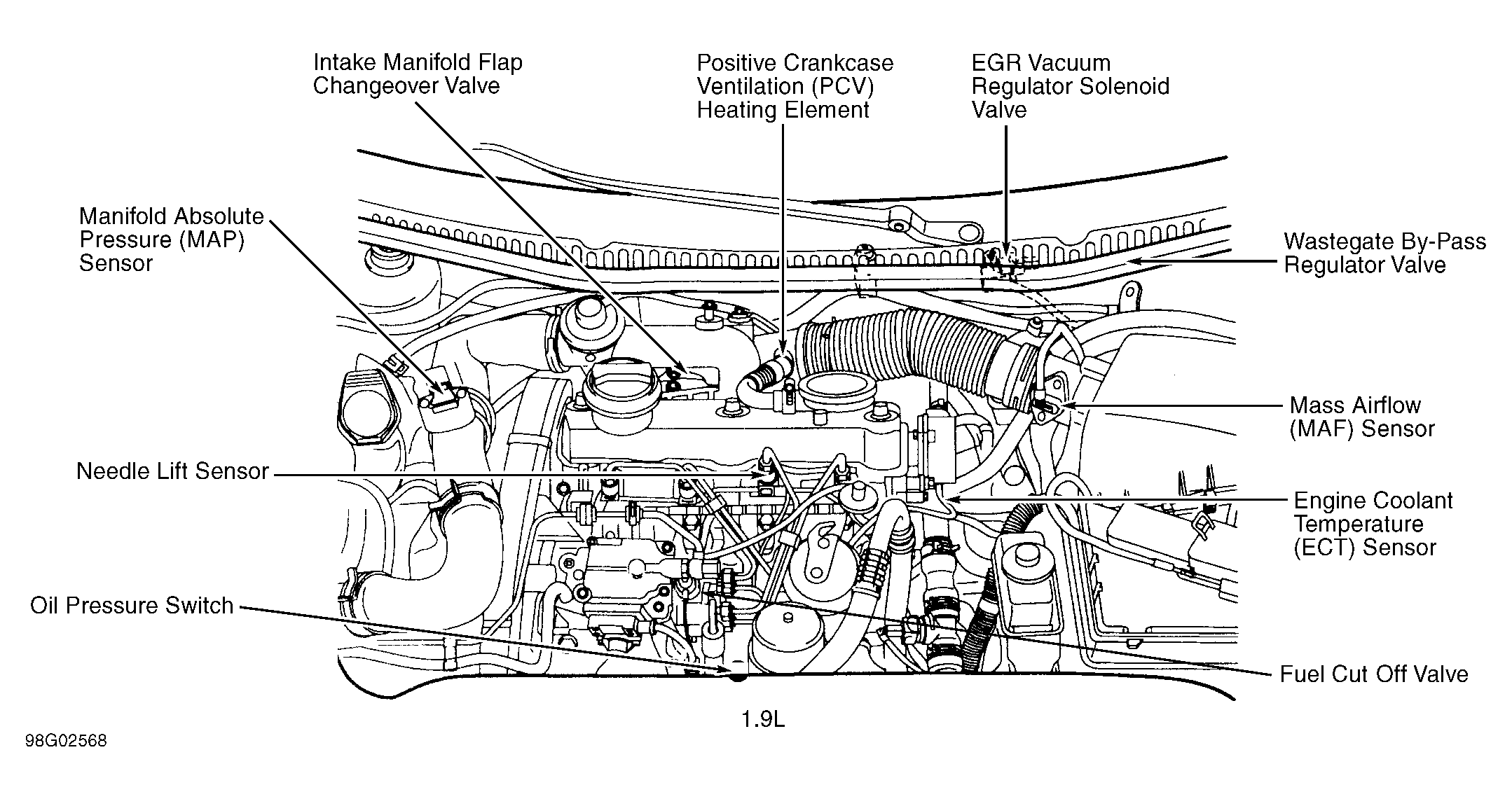

Fig 2: Engine Compartment (1.9L)

Fig 3: Engine Compartment (2.0L)

Fig 4: Vehicle Overview

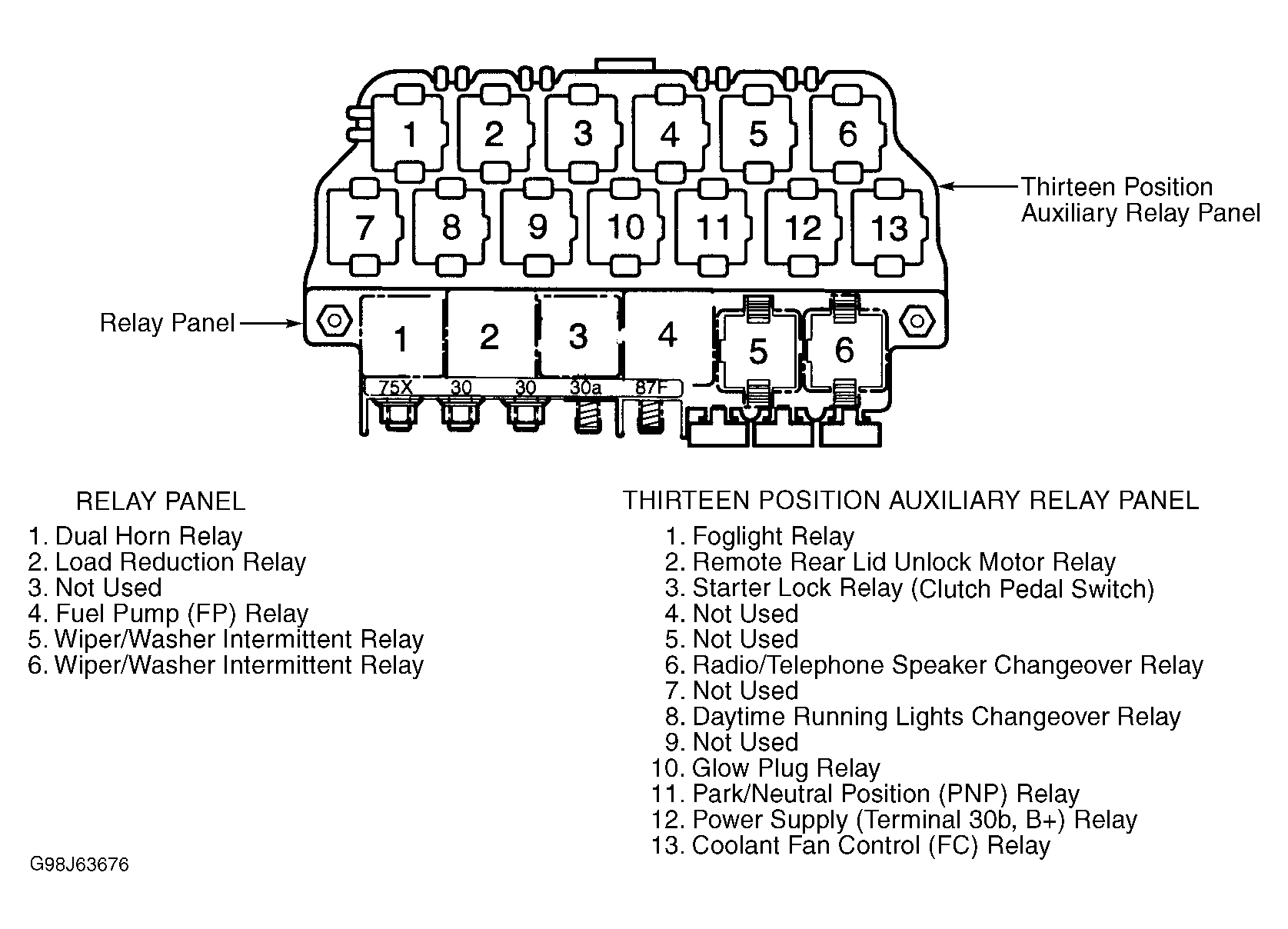

Fig 5: Relay Panel & Thirteen Position Auxiliary Relay Panel
